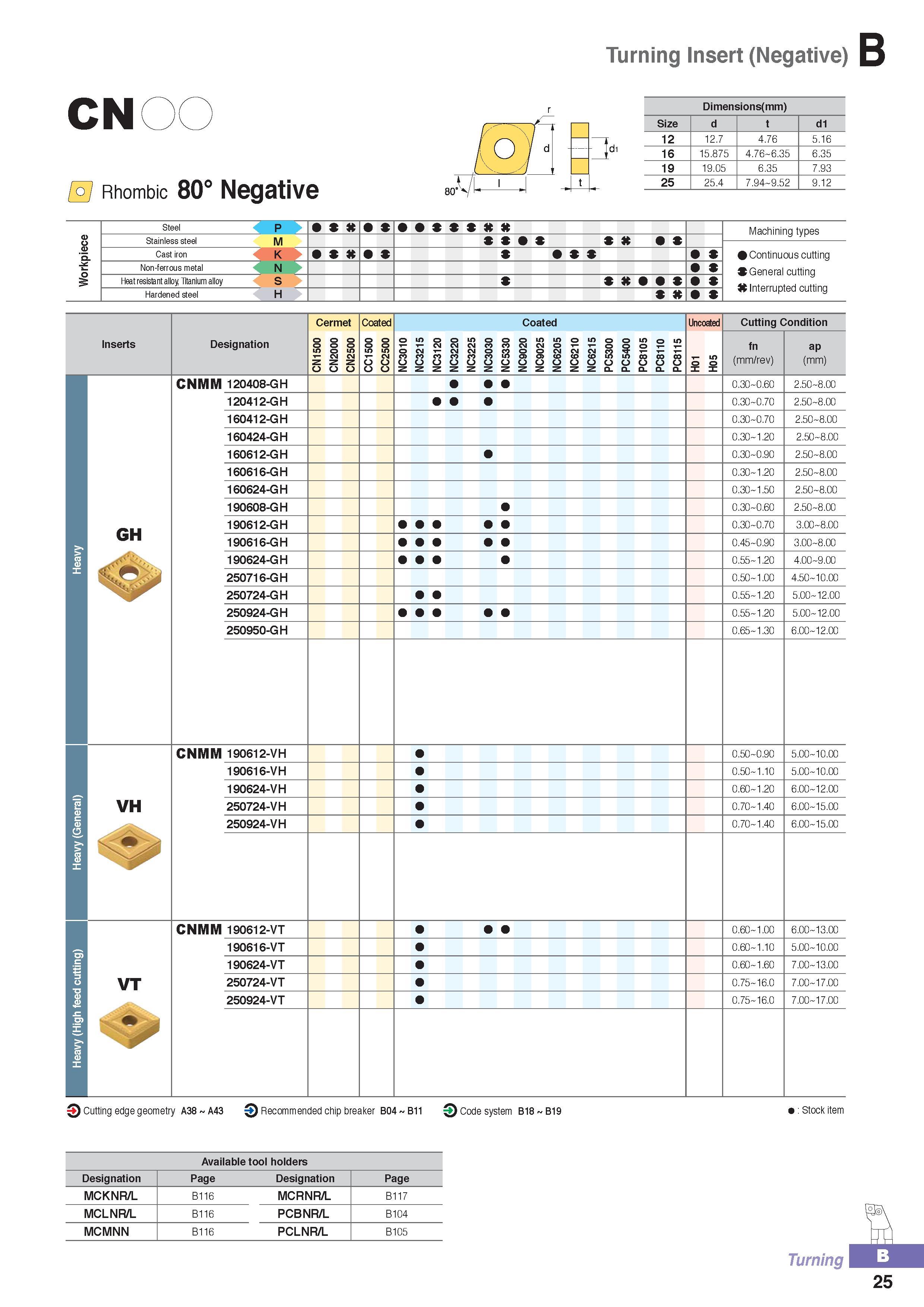

Turning Insert (Negative) CN Rhombic 80° Negative 80“ Dimensions (mm) Size d d1 12 12.7 4.76 5.16 16 15.875 4.76 6.35 6.35 19 19.05 6.35 7.93 25 25.4 7.94 9.52 9.12 Steel p K K Stainless steel M S Cast iron K Non-ferrous metal N Heat resistant alloy Titanium alloy S Hardened steel H Machining types Continuouscutting General cutting Interrupted cutting Inserts Designation C erm 0 0 0 CM N C et Coa 0 0 m C1 C rted Coated Uncoated Cutting Condition CN1500 CN2500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 10 21 to C N NC6215 PC5300 0 s 5 C a. 5 10 C 10 z C a. PC8115 H01 H05 fn (mm/rev) ap (mm) GH CNMM 120408-GH 0.30 0.60 2.50 8.00 120412-GH 0.30 0.70 2.50 8.00 160412-GH 0.30 0.70 2.50 8.00 160424-GH 0.30 1.20 2.50 8.00 160612-GH 0.30 0.90 2.50 8.00 160616-GH 0.30 1.20 2.50 8.00 160624-GH 0.30 1.50 2.50 8.00 190608-GH 0.30 0.60 2.50 8.00 190612-GH 0.30 0.70 3.00 8.00 190616-GH 0.45 0.90 3.00 8.00 190624-GH 0.55 1.20 4.00 9.00 250716-GH 0.50 1.00 4.50 10.00 250724-GH 0.55 1.20 5.00 12.00 250924-GH 0.55 1.20 5.00 12.00 250950-GH 0.65 1.30 6.00 12.00 VH CNMM 190612-VH 0.50 0.90 5.00 10.00 190616-VH 0.50 1.10 5.00 10.00 190624-VH 0.60 1.20 6.00 12.00 250724-VH 0.70 1.40 6.00 15.00 250924-VH 0.70 1.40 6.00 15.00 VT V CNMM 190612-VT 0.60 1.00 6.00 13.00 190616-VT 0.60 1.10 5.00 10.00 190624-VT 0.60 1.60 7.00 13.00 250724-VT 0.75 16.0 7.00 17.00 250924-VT 0.75 16.0 7.00 17.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page MCKNR/L B116 MCRNR/L B117 MCLNR/L B116 PCBNR/L B104 MCMNN B116 PCLNR/L B105 Turning 25
