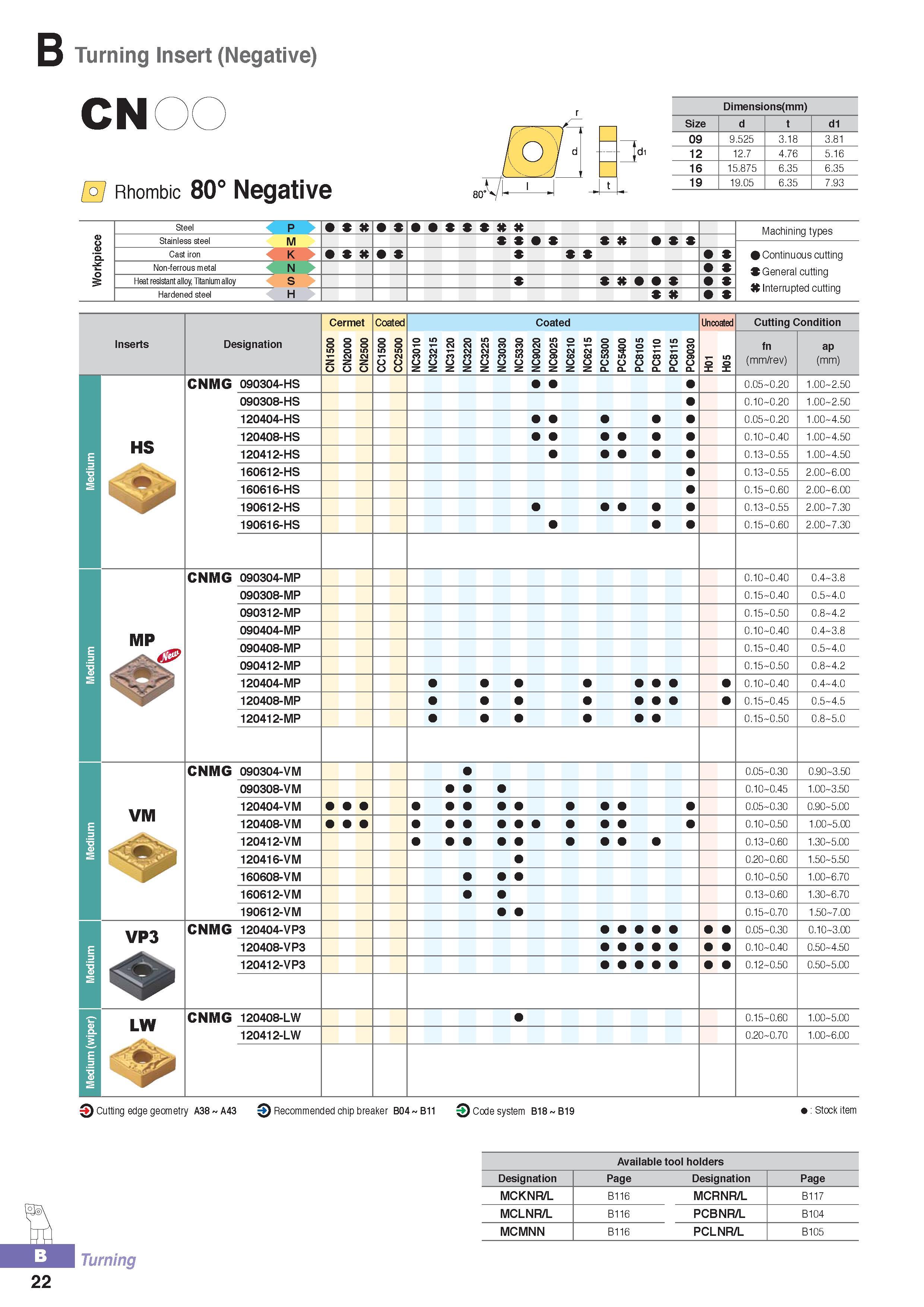

Metal cutting tools from South Korea Rhombic carbide turning inserts Korloy CNMG 80° Negative Dimensions (mm) Grades CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) E 3 O m HS CNMG 090304-HS 0.05 0.20 1.00 2.50 090308-HS 0.10 0.20 1.00 2.50 120404-HS 0.05 0.20 1.00 4.50 120408-HS 0.10 0.40 1.00 4.50 120412-HS 0.13 0.55 1.00 4.50 160612-HS 0.13 0.55 2.00 6.00 160616-HS 0.15 0.60 2.00 6.00 190612-HS 0.13 0.55 2.00 7.30 190616-HS 0.15 0.60 2.00 7.30 MP CNMG 090304-MP 0.10 0.40 0.4 3.8 090308-MP 0.15 0.40 0.5 4.0 090312-MP 0.15 0.50 0.8 4.2 090404-MP 0.10 0.40 0.4 3.8 090408-MP 0.15 0.40 0.5 4.0 090412-MP 0.15 0.50 0.8 4.2 120404-MP 0.10 0.40 0.4 4.0 120408-MP 0.15 0.45 0.5 4.5 120412-MP 0.15 0.50 0.8 5.0 3 T3 O m VM CNMG 090304-VM 0.05 0.30 0.90 3.50 090308-VM 0.10 0.45 1.00 3.50 120404-VM 0.05 0.30 0.90 5.00 120408-VM 0.10 0.50 1.00 5.00 120412-VM 0.13 0.60 1.30 5.00 120416-VM 0.20 0.60 1.50 5.50 160608-VM 0.10 0.50 1.00 6.70 160612-VM 0.13 0.60 1.30 6.70 190612-VM 0.15 0.70 1.50 7.00 E 3 13 VP3 CNMG 120404-VP3 0.05 0.30 0.10 3.00 120408-VP3 0.10 0.40 0.50 4.50 120412-VP3 0.12 0.50 0.50 5.00 Medium (wiper) LW 2 CNMG 120408-LW 0.15 0.60 1.00 5.00 120412-LW 0.20 0.70 1.00 6.00 Cutting edge geometry A38 A43 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 22 Available tool holders Designation Page Designation Page MCKNR/L B116 MCRNR/L B117 MCLNR/L B116 PCBNR/L B104 MCMNN B116 PCLNR/L B105 (Negative) Size d d1 09 9.525 3.18 3.81 12 12.7 4.76 5.16 16 15.875 6.35 6.35 19 19.05 6.35 7.93 Workpiece Steel P Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M > t Cast iron K Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H Inserts Designation Cermet Coated Coated Uncoated Cutting Condition
