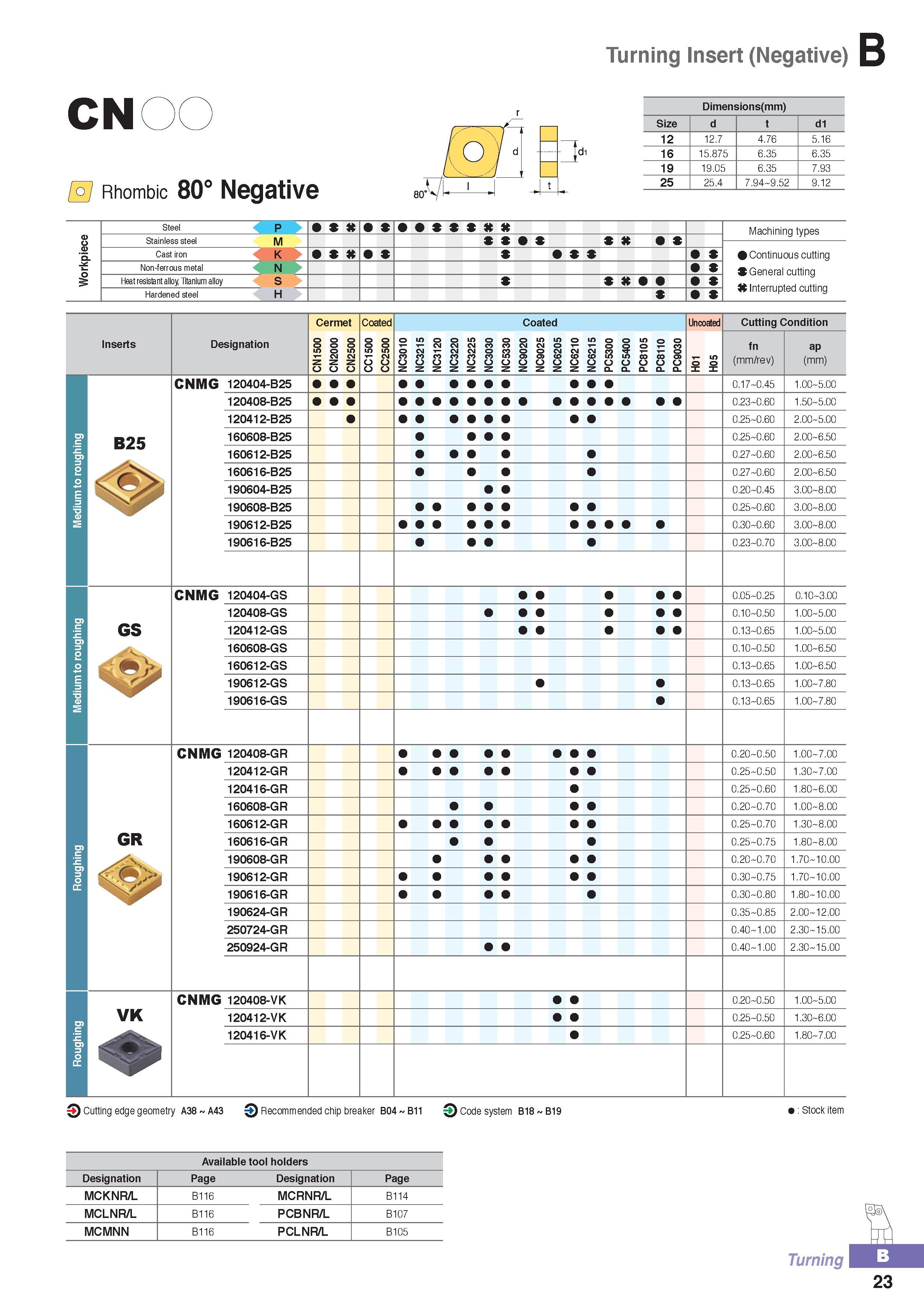

Turning Insert (Negative) CN Rhombic 80° Negative 80' J Dimensions (mm) Size d d1 12 12.7 4.76 5.16 16 15.875 6.35 6.35 19 19.05 6.35 7.93 25 25.4 7.94 9.52 9.12 Workpiece Steel P S K Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M K Cast iron K S Non-ferrous metal N Heat resistant alloy Titanium alloy S K Hardened steel H Inserts Designation Cermet io o m pi z z z o Coated W W 1- CJ Coated Uncoated Cutting Condition 05005000550500500 1-1-CJCJCJCOCOCJCJOi-i-OOO OCJi-CJCJOMOOCJCJCJMtFi-i-O nnnnnninaaioiooininooisa O ZZZZZZZZZZZZQ.Q.Q.Q.Q. H01 H05 fn (mm/rev) ap (mm) Medium to roughing B25 CNMG 120404-B25 0.17 0.45 1.00 5.00 120408-B25 0.23 0.60 1.50 5.00 120412-B25 0.25 0.60 2.00 5.00 160608-B25 0.25 0.60 2.00 6.50 160612-B25 0.27 0.60 2.00 6.50 160616-B25 0.27 0.60 2.00 6.50 190604-B25 0.20 0.45 3.00 8.00 190608-B25 0.25 0.60 3.00 8.00 190612-B25 0.30 0.60 3.00 8.00 190616-B25 0.23 0.70 3.00 8.00 Medium to roughing GS CNMG 120404-GS 0.05 0.25 0.10 3.00 120408-GS 0.10 0.50 1.00 5.00 120412-GS 0.13 0.65 1.00 5.00 160608-GS 0.10 0.50 1.00 6.50 160612-GS 0.13 0.65 1.00 6.50 190612-GS 0.13 0.65 1.00 7.80 190616-GS 0.13 0.65 1.00 7.80 g in hi g u o GR CNMG 120408-GR 0.20 0.50 1.00 7.00 120412-GR 0.25 0.50 1.30 7.00 120416-GR 0.25 0.60 1.80 6.00 160608-GR 0.20 0.70 1.00 8.00 160612-GR 0.25 0.70 1.30 8.00 160616-GR 0.25 0.75 1.80 8.00 190608-GR 0.20 0.70 1.70 10.00 190612-GR 0.30 0.75 1.70 10.00 190616-GR 0.30 0.80 1.80 10.00 190624-GR 0.35 0.85 2.00 12.00 250724-GR 0.40 1.00 2.30 15.00 250924-GR 0.40 1.00 2.30 15.00 Roughing VK CNMG 120408-VK 0.20 0.50 1.00 5.00 120412-VK 0.25 0.50 1.30 6.00 120416-VK 0.25 0.60 1.80 7.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page MCKNR/L B116 MCRNR/L B114 MCLNR/L B116 PCBNR/L B107 MCMNN B116 PCLNR/L B105 Turning 23
