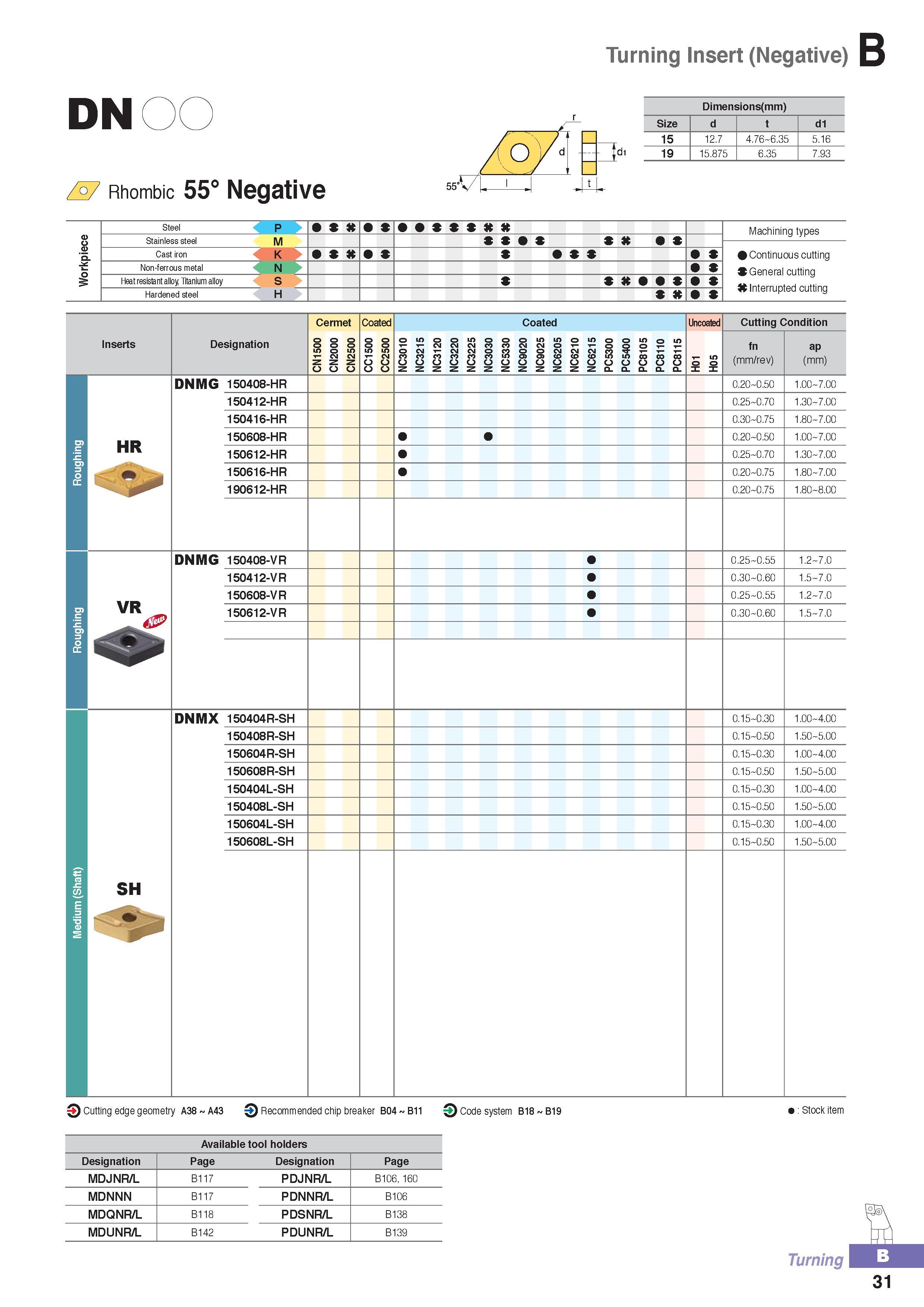

Turning Insert (Negative) DN o Rhombic 55° Negative 55' VI rjd, Dimensions (mm) Size d d1 15 12.7 4.76 6.35 5.16 19 15.875 6.35 7.93 Workpiece Steel P S K Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M K Cast iron K S 9 Non-ferrous metal N s Heat resistant alloy Titanium alloy S S Hardened steel H Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 m HH fn (mm/rev) ap (mm) oughing HR V DNMG 150408-HR 0.20 0.50 1.00 7.00 150412-HR 0.25-0.70 1.30 7.00 150416-HR 0.30-0.75 1.80 7.00 150608-HR 0.20-0.50 1.00 7.00 150612-HR 0.25-0.70 1.30 7.00 150616-HR 0.20-0.75 1.80 7.00 190612-HR 0.20-0.75 1.80-8.00 Roughing VR DNMG 150408-VR 0.25-0.55 1.2 7.0 150412-VR 0.30-0.60 1.5-7.0 150608-VR 0.25-0.55 1.2-7.0 150612-VR 0.30-0.60 1.5-7.0 Medium (Shaft) SH DNMX 150404R-SH 0.15-0.30 1.00-4.00 150408R-SH 0.15-0.50 1.50-5.00 150604R-SH 0.15-0.30 1.00-4.00 150608R-SH 0.15-0.50 1.50-5.00 150404L-SH 0.15-0.30 1.00-4.00 150408L-SH 0.15-0.50 1.50-5.00 150604L-SH 0.15-0.30 1.00-4.00 150608L-SH 0.15-0.50 1.50-5.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Available tool holders Designation Page Designation Page MDJNR/L B117 PDJNR/L B106, 160 MDNNN B117 PDNNR/L B106 MDQNR/L B118 PDSNR/L B138 MDUNR/L B142 PDUNR/L B139 Stock item Turning 31
