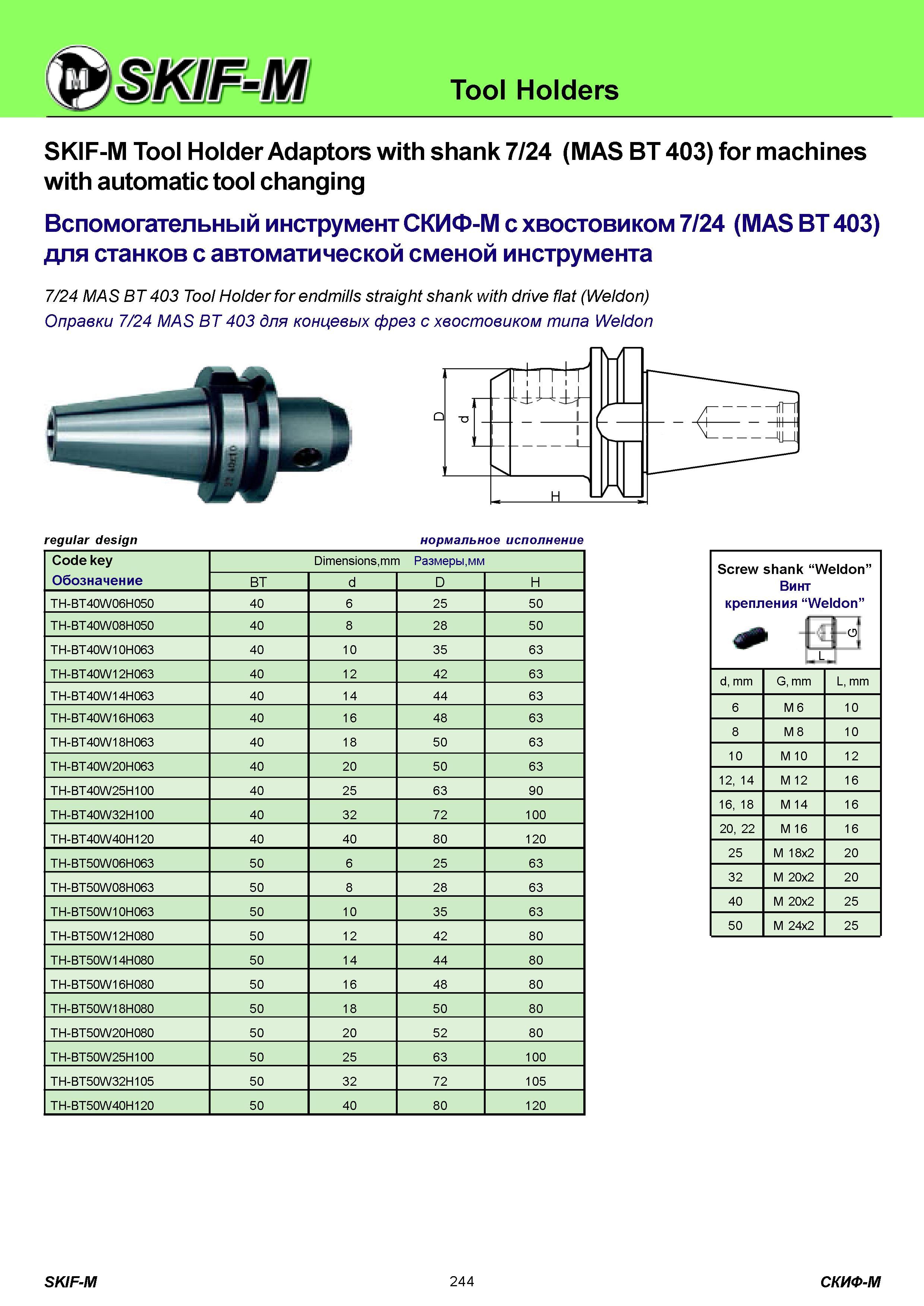

Tool Holders SKIF-M Tool Holder Adaptors with shank 7/24 (MAS BT 403) for machines with automatic tool changing Вспомогательный инструмент СКИФ-М с хвос

Tool Holders SKIF-M Tool Holder Adaptors with shank 7/24 (MAS BT 403) for machines with automatic tool changing Вспомогательный инструмент СКИФ-М с хвостовиком 7/24 (MAS BT 403) для станков с автоматической сменой инструмента 7/24 MAS BT 403 Tool Holder for endmills straight shank with drive flat (Weldon) Оправки 7/24 MAS BT 403 для концевых фрез с хвостовиком типа Weldon regular design нормальное исполнение Code key Обозначение Dimensions,mm Размеры,мм BT d D H TH-BT40W06H050 40 6 25 50 TH-BT40W08H050 40 8 28 50 TH-BT40W10H063 40 10 35 63 TH-BT40W12H063 40 12 42 63 TH-BT40W14H063 40 14 44 63 TH-BT40W16H063 40 16 48 63 TH-BT40W18H063 40 18 50 63 TH-BT40W20H063 40 20 50 63 TH-BT40W25H100 40 25 63 90 TH-BT40W32H100 40 32 72 100 TH-BT40W40H120 40 40 80 120 TH-BT50W06H063 50 6 25 63 TH-BT50W08H063 50 8 28 63 TH-BT50W10H063 50 10 35 63 TH-BT50W12H080 50 12 42 80 TH-BT50W14H080 50 14 44 80 TH-BT50W16H080 50 16 48 80 TH-BT50W18H080 50 18 50 80 TH-BT50W20H080 50 20 52 80 TH-BT50W25H100 50 25 63 100 TH-BT50W32H105 50 32 72 105 TH-BT50W40H120 50 40 80 120 Screw shank Weldon Винт крепления Weldon <0 L d, mm G, mm L, mm 6 M 6 10 8 M 8 10 10 M 10 12 12, 14 M 12 16 16, 18 M 14 16 20, 22 M 16 16 25 M 18x2 20 32 M 20x2 20 40 M 20x2 25 50 M 24x2 25 SKIF-M 244 СКИФ-М
