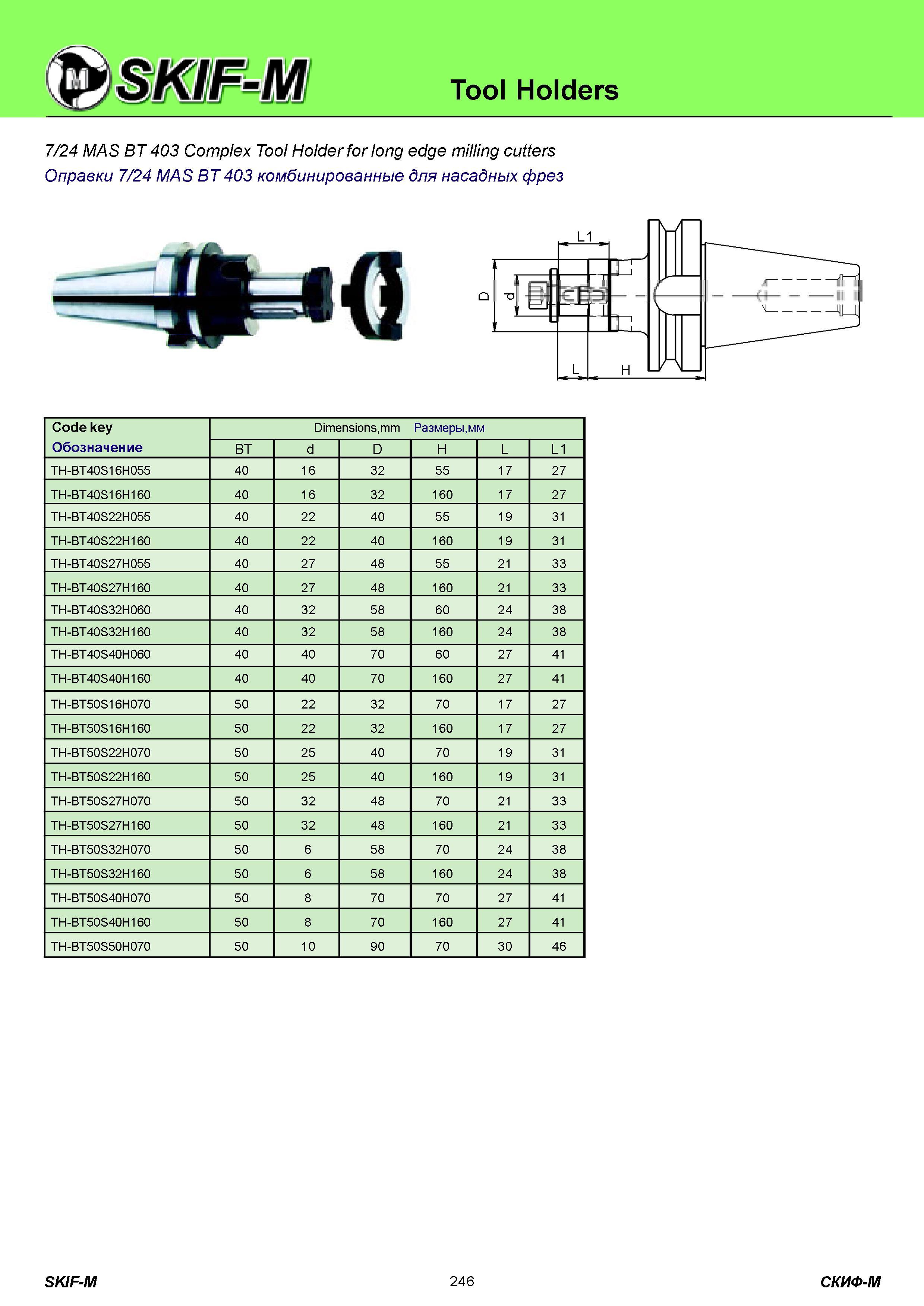

Tool Holders 7/24 MAS BT 403 Complex Tool Holder for long edge milling cutters Оправки 7/24 MAS BT403 комбинированные для насадных фрез Code key Обознач

Tool Holders 7/24 MAS BT 403 Complex Tool Holder for long edge milling cutters Оправки 7/24 MAS BT403 комбинированные для насадных фрез Code key Обозначение Dimensions,mm Размеры,мм BT d D H L L1 TH-BT40S16H055 40 16 32 55 17 27 TH-BT40S16H160 40 16 32 160 17 27 TH-BT40S22H055 40 22 40 55 19 31 TH-BT 40S22H160 40 22 40 160 19 31 TH-BT40S27H055 40 27 48 55 21 33 TH-BT 40S27H160 40 27 48 160 21 33 TH-BT40S32H060 40 32 58 60 24 38 TH-BT 40S32H160 40 32 58 160 24 38 TH-BT40S40H060 40 40 70 60 27 41 TH-BT40S40H160 40 40 70 160 27 41 TH-BT50S16H070 50 22 32 70 17 27 TH-BT50S16H160 50 22 32 160 17 27 TH-BT50S22H070 50 25 40 70 19 31 TH-BT50S22H160 50 25 40 160 19 31 TH-BT50S27H070 50 32 48 70 21 33 TH-BT50S27H160 50 32 48 160 21 33 TH-BT50S32H070 50 6 58 70 24 38 TH-BT50S32H160 50 6 58 160 24 38 TH-BT50S40H070 50 8 70 70 27 41 TH-BT50S40H160 50 8 70 160 27 41 TH-BT50S50H070 50 10 90 70 30 46 SKIF-M 246 СКИФ-М
