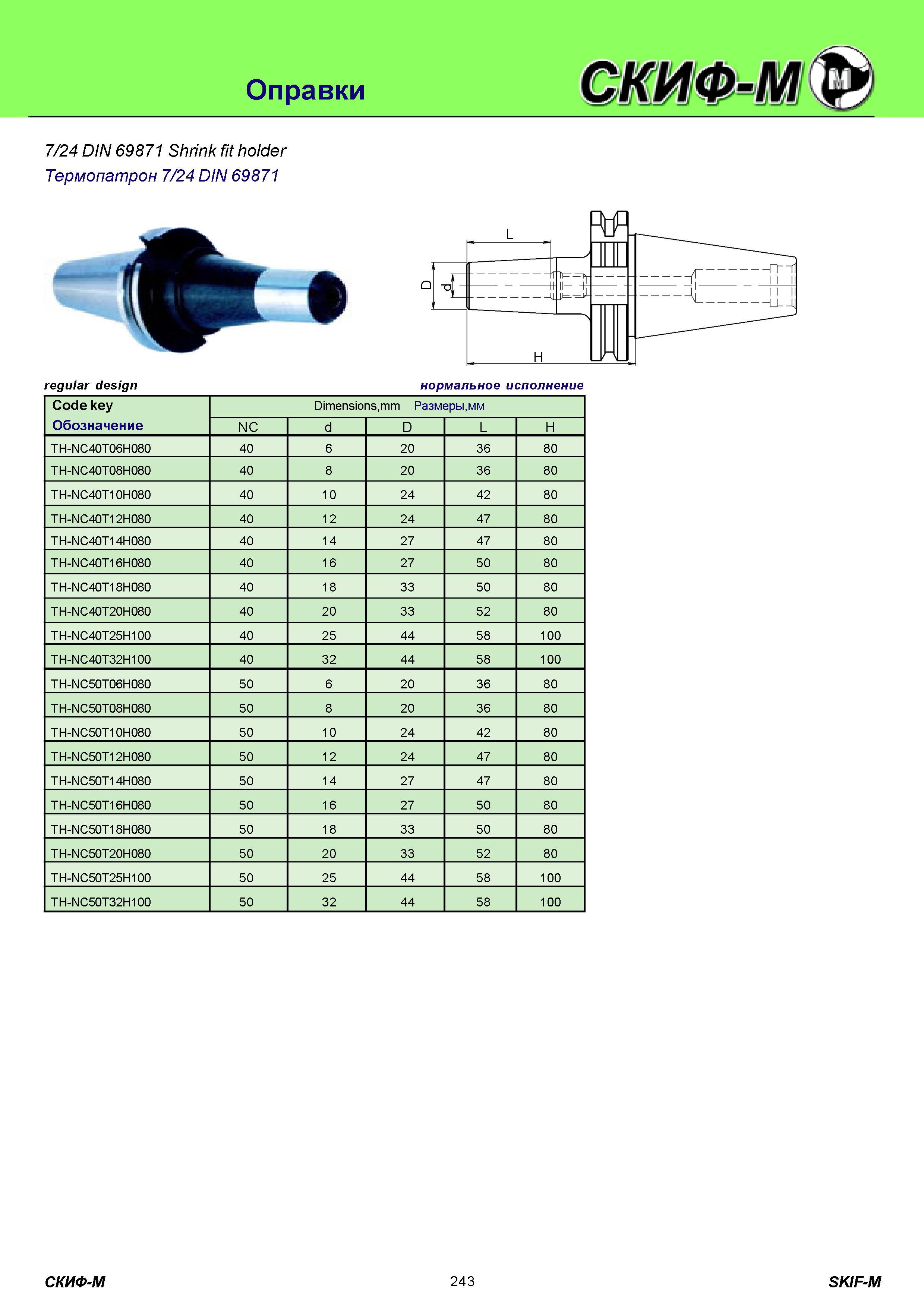

Оправки инструментальные 7/24 DIN 69871 Shrink fit holder Термопатрон 7/24 DIN 69871 regular design Code key Обозначение Dimensions,mm Размеры,мм NC d D L H TH-NC40T06H080 40 6 20 36 80 TH-NC40T08H080 40 8 20 36 80 TH-NC40T10H080 40 10 24 42 80 TH-NC40T12H080 40 12 24 47 80 TH-NC40T14H080 40 14 27 47 80 TH-NC40T16H080 40 16 27 50 80 TH-NC40T18H080 40 18 33 50 80 TH-NC40T20H080 40 20 33 52 80 TH-NC40T25H100 40 25 44 58 100 TH-NC40T32H100 40 32 44 58 100 TH-NC50T06H080 50 6 20 36 80 TH-NC50T08H080 50 8 20 36 80 TH-NC50T10H080 50 10 24 42 80 TH-NC50T12H080 50 12 24 47 80 TH-NC50T14H080 50 14 27 47 80 TH-NC50T16H080 50 16 27 50 80 TH-NC50T18H080 50 18 33 50 80 TH-NC50T20H080 50 20 33 52 80 TH-NC50T25H100 50 25 44 58 100 TH-NC50T32H100 50 32 44 58 100 СКИФ-М 243 SKIF-M
