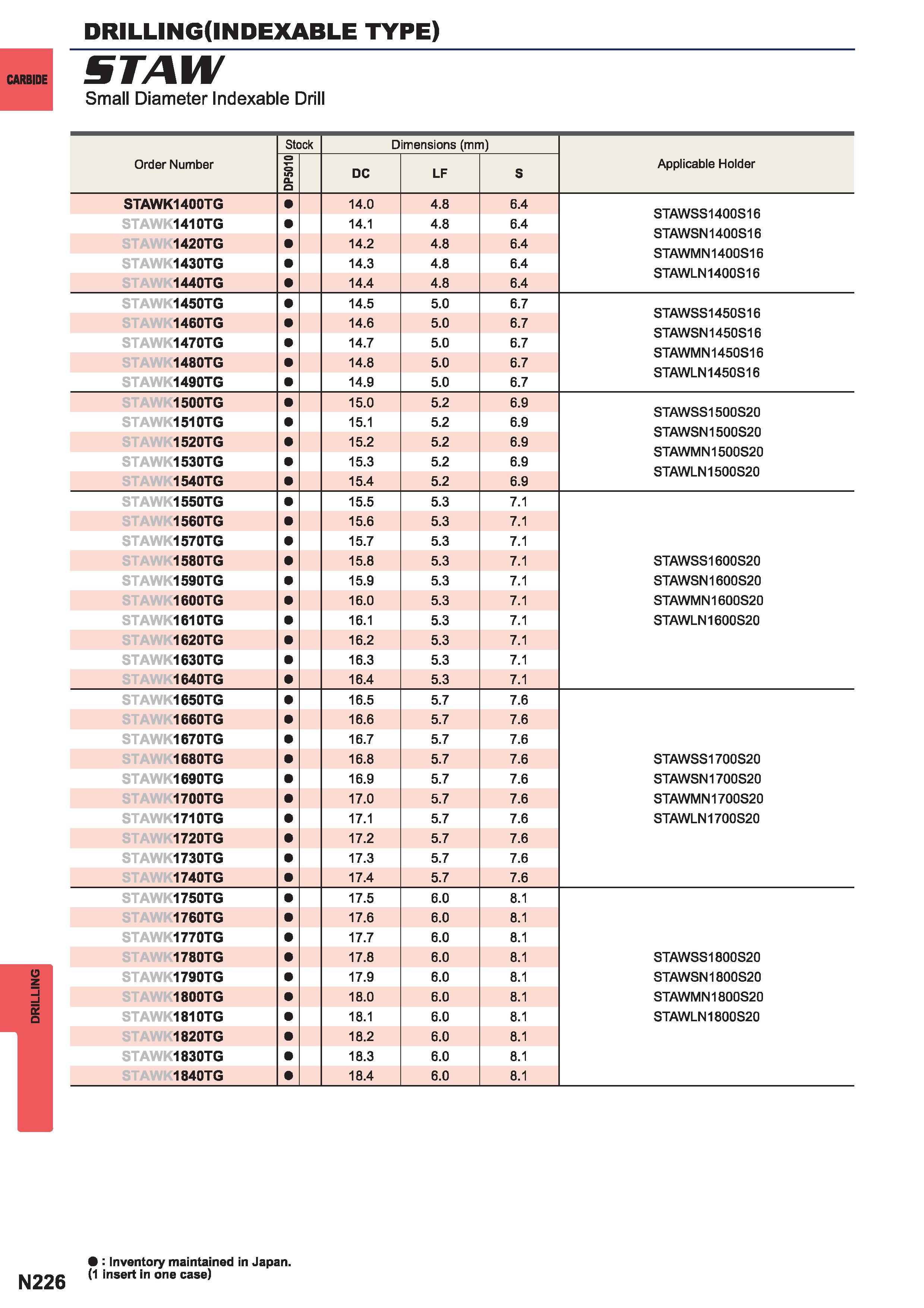

DRILLING DRILLING (INDEXABLE TYPE) STAW CARBIDE Small Diameter Indexable Drill Stock Dimensions (mm) Order Number DP5010 DC LF S Applicable Holder STAWK1400TG 14.0 4.8 6.4 STAWSS1400S16 STAWSN 1400S16 STAWMN1400S16 STAWLN 1400S16 1410TG 14.1 4.8 6.4 1420TG 14.2 4.8 6.4 1430TG 14.3 4.8 6.4 1440TG 14.4 4.8 6.4 1450TG 14.5 5.0 6.7 STAWSS1450S16 STAWSN 1450S16 STAWMN1450S16 STAWLN 1450S16 1460TG 14.6 5.0 6.7 1470TG 14.7 5.0 6.7 1480TG 14.8 5.0 6.7 1490TG 14.9 5.0 6.7 1500TG 15.0 5.2 6.9 STAWSS1500S20 STAWSN 1500S20 STAWMN1500S20 STAWLN 1500S20 1510TG 15.1 5.2 6.9 1520TG 15.2 5.2 6.9 1530TG 15.3 5.2 6.9 1540TG 15.4 5.2 6.9 1550TG 15.5 5.3 7.1 1560TG 15.6 5.3 7.1 1570TG 15.7 5.3 7.1 1580TG 15.8 5.3 7.1 STAWSS1600S20 1590TG 15.9 5.3 7.1 STAWSN 1600S20 1600TG 16.0 5.3 7.1 STAWMN 1600S20 1610TG 16.1 5.3 7.1 STAWLN 1600S20 1620TG 16.2 5.3 7.1 1630TG 16.3 5.3 7.1 1640TG 16.4 5.3 7.1 1650TG 16.5 5.7 7.6 1660TG 16.6 5.7 7.6 1670TG 16.7 5.7 7.6 1680TG 16.8 5.7 7.6 STAWSS1700S20 1690TG 16.9 5.7 7.6 STAWSN 1700S20 1700TG 17.0 5.7 7.6 STAWMN 1700S20 1710TG 17.1 5.7 7.6 STAWLN 1700S20 1720TG 17.2 5.7 7.6 1730TG 17.3 5.7 7.6 1740TG 17.4 5.7 7.6 1750TG 17.5 6.0 8.1 1760TG 17.6 6.0 8.1 1770TG 17.7 6.0 8.1 1780TG 17.8 6.0 8.1 STAWSS1800S20 1790TG 17.9 6.0 8.1 STAWSN 1800S20 1800TG 18.0 6.0 8.1 STAWMN 1800S20 1810TG 18.1 6.0 8.1 STAWLN 1800S20 1820TG 18.2 6.0 8.1 1830TG 18.3 6.0 8.1 1840TG 18.4 6.0 8.1 Inventory maintained in Japan. (1 insert in one case)
