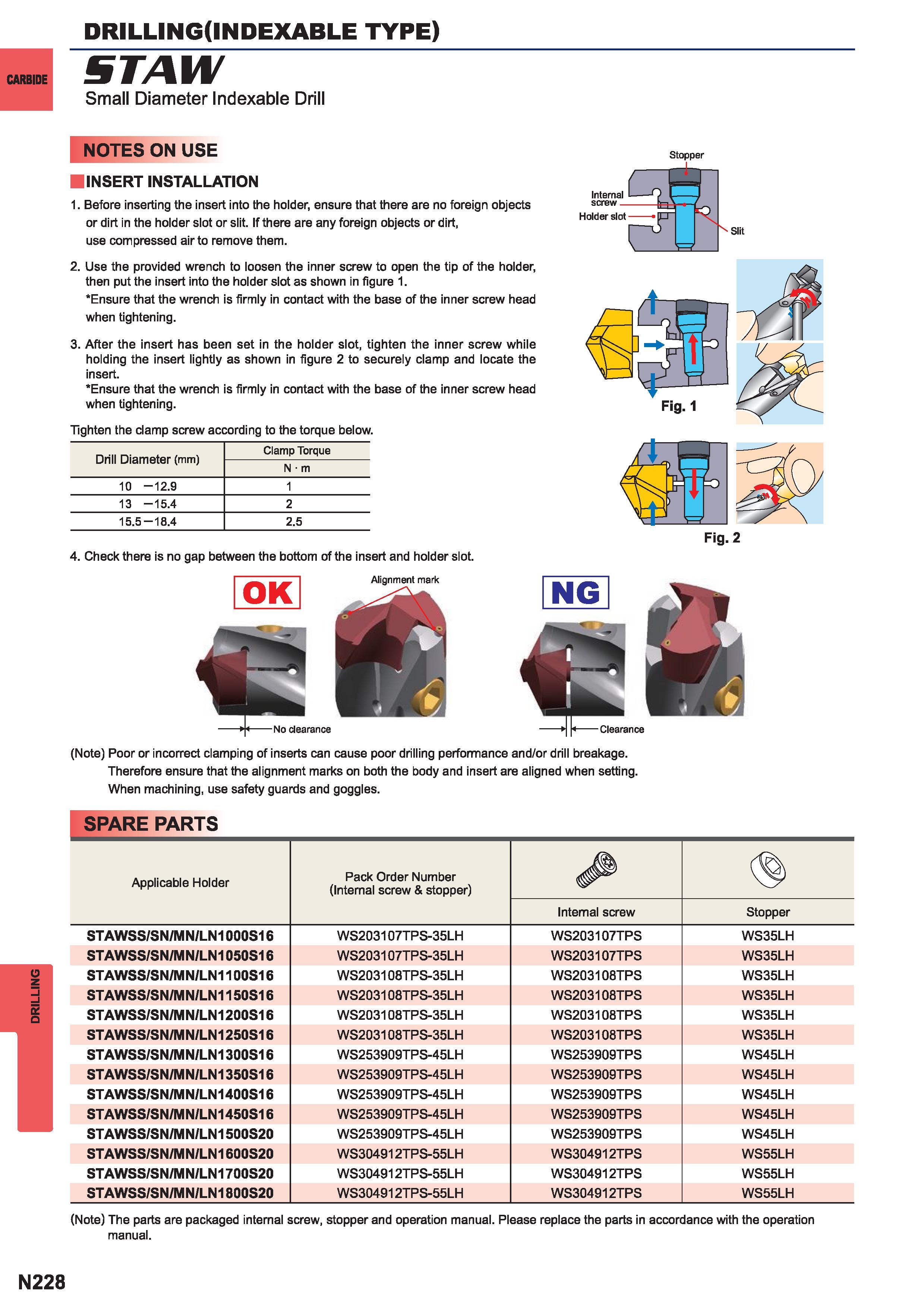

DRILLING DRILLING (INDEXABLE TYPE) CARBIDE STAW Small Diameter Indexable Drill NOTES ON USE INSERT INSTALLATION 1. Before inserting the insert into the holder ensure that there are no foreign objects or dirt in the holder slot or slit. If there are any foreign objects or dirt use compressed air to remove them. 2. Use the provided wrench to loosen the inner screw to open the tip of the holder then put the insert into the holder slot as shown in figure 1. Ensure that the wrench is firmly in contact with the base of the inner screw head when tightening. 3. After the insert has been set in the holder slot tighten the inner screw while holding the insert lightly as shown in figure 2 to securely clamp and locate the insert. Ensure that the wrench is firmly in contact with the base of the inner screw head when tightening. Tighten the clamp screw according to the torque below. Internal screw Holder slot Stopper Drill Diameter (mm) Clamp Torque N m 10 -12.9 1 13 -15.4 2 15.5-18.4 2.5 4. Check there is no gap between the bottom of the insert and holder slot. Alignment mark -No clearance (Note) Poor or incorrect clamping of inserts can cause poor drilling performance and or drill breakage. Therefore ensure that the alignment marks on both the body and insert are aligned when setting. When machining use safety guards and goggles. SPARE PARTS Applicable Holder Pack Order Number (Internal screw & stopper) Internal screw Stopper STAWSS SN MN LN1000S16 WS203107TPS-35LH WS203107TPS WS35LH STAWSS SN MN LN1050S16 WS203107TPS-35LH WS203107TPS WS35LH STAWSS S N M N LN1100S16 WS203108TPS-35LH WS203108TPS WS35LH STAWSS SN MN LN1150S16 WS203108TPS-35LH WS203108TPS WS35LH STAWSS SN MN LN1200S16 WS203108TPS-35LH WS203108TPS WS35LH STAWSS SN MN LN1250S16 WS203108TPS-35LH WS203108TPS WS35LH STAWSS SN MN LN1300S16 WS253909TPS-45LH WS253909TPS WS45LH STAWSS SN MN LN1350S16 WS253909TPS-45LH WS253909TPS WS45LH STAWSS S N MN LN1400S16 WS253909TPS-45LH WS253909TPS WS45LH STAWSS SN MN LN1450S16 WS253909TPS-45LH WS253909TPS WS45LH STAWSS SN MN LN1500S20 WS253909TPS-45LH WS253909TPS WS45LH STAWSS SN MN LN1600S20 WS304912TPS-55LH WS304912TPS WS55LH STAWSS SN MN LN1700S20 WS304912TPS-55LH WS304912TPS WS55LH STAWSS SN MN LN1800S20 WS304912TPS-55LH WS304912TPS WS55LH (Note) The parts are packaged internal screw stopper and operation manual. Please replace the parts in accordance with the operation manual. N228
