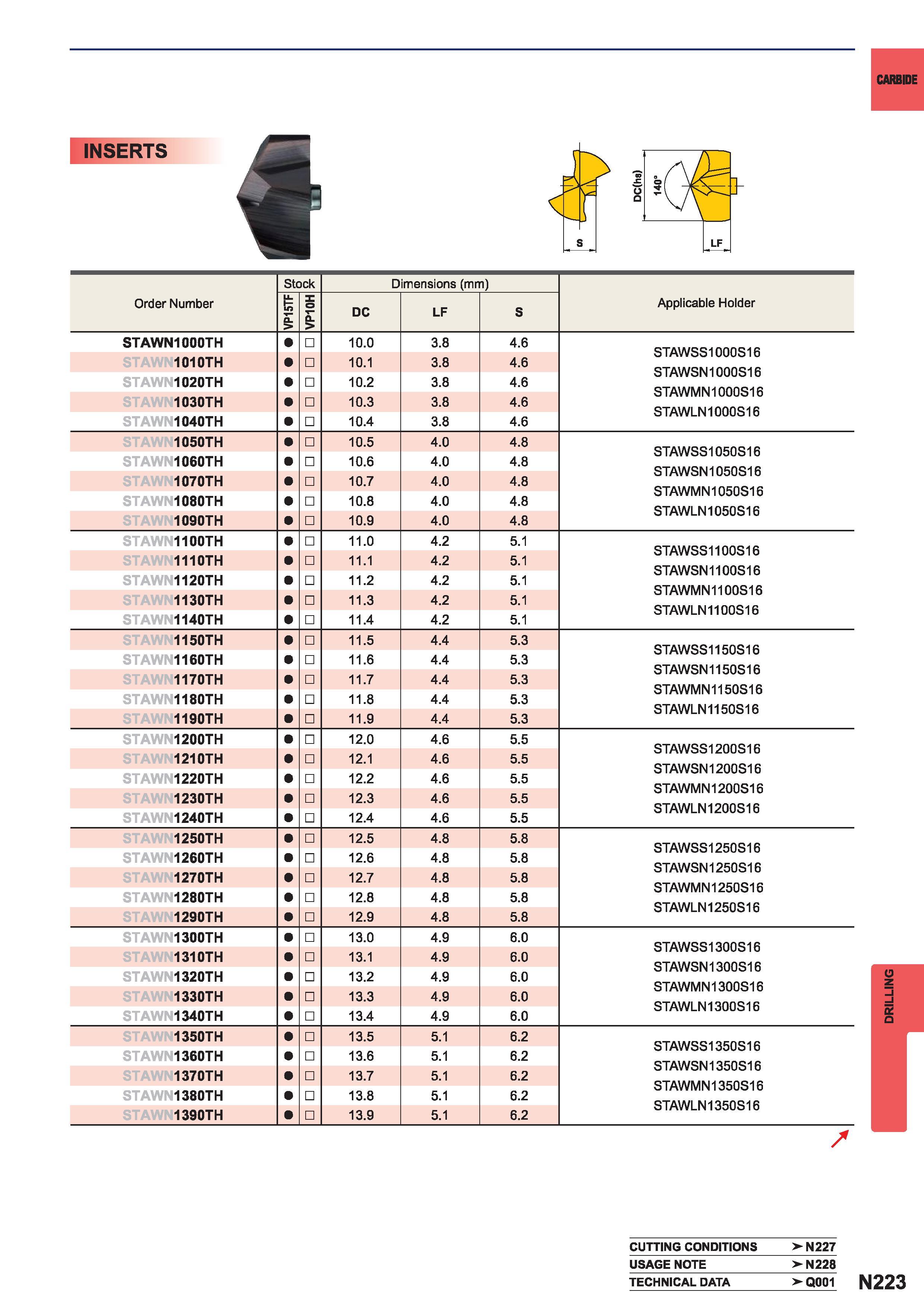

1539 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N223

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N223 1539 ENG Lab2u

CARBIDE INSERTS Order Number Stock Dimensions (mm) Applicable Holder VP15TF VP10H DC LF S STAWN1000TH 10.0 3.8 4.6 STAWSS1000S16 STAWSN1000S16 STAWMN1000S16 STAWLN1000S16 1010TH 10.1 3.8 4.6 1020TH 10.2 3.8 4.6 1030TH 10.3 3.8 4.6 1040TH 10.4 3.8 4.6 1050TH 10.5 4.0 4.8 STAWSS1050S16 STAWSN1050S16 STAWMN1050S16 STAWLN 1050S16 STAWI 1060TH 10.6 4.0 4.8 1070TH 10.7 4.0 4.8 STAWI 1080TH 10.8 4.0 4.8 1090TH 10.9 4.0 4.8 1100TH 11.0 4.2 5.1 STAWSS 1100S16 STAWSN 1100S16 STAWMN1100S16 STAWLN 1100S16 1110TH 11.1 4.2 5.1 STAWI 1120TH 11.2 4.2 5.1 1130TH 11.3 4.2 5.1 1140TH 11.4 4.2 5.1 1150TH 11.5 4.4 5.3 STAWSS 1150S16 STAWSN 1150S16 STAWMN1150S16 STAWLN 1150S16 STAWI 1160TH 11.6 4.4 5.3 1170TH 11.7 4.4 5.3 STAWI 1180TH 11.8 4.4 5.3 1190TH 11.9 4.4 5.3 1200TH 12.0 4.6 5.5 STAWSS1200S16 STAWSN 1200S16 STAWMN1200S16 STAWLN 1200S16 1210TH 12.1 4.6 5.5 1220TH 12.2 4.6 5.5 1230TH 12.3 4.6 5.5 1240TH 12.4 4.6 5.5 1250TH 12.5 4.8 5.8 STAWSS1250S16 STAWSN 1250S16 STAWMN1250S16 STAWLN 1250S16 STAWI 1260TH 12.6 4.8 5.8 1270TH 12.7 4.8 5.8 1280TH 12.8 4.8 5.8 1290TH 12.9 4.8 5.8 1300TH 13.0 4.9 6.0 STAWSS1300S16 STAWSN 1300S16 STAWMN1300S16 STAWLN 1300S16 1310TH 13.1 4.9 6.0 STAWI 1320TH 13.2 4.9 6.0 1330TH 13.3 4.9 6.0 1340TH 13.4 4.9 6.0 1350TH 13.5 5.1 6.2 STAWSS1350S16 STAWSN 1350S16 STAWMN1350S16 STAWLN 1350S16 STAWI 1360TH 13.6 5.1 6.2 1370TH 13.7 5.1 6.2 STAWI 1380TH 13.8 5.1 6.2 1390TH 13.9 5.1 6.2 CUTTING CONDITIONS N227 USAGE NOTE N228 TECHNICAL DATA Q001 N223 DRILLING
