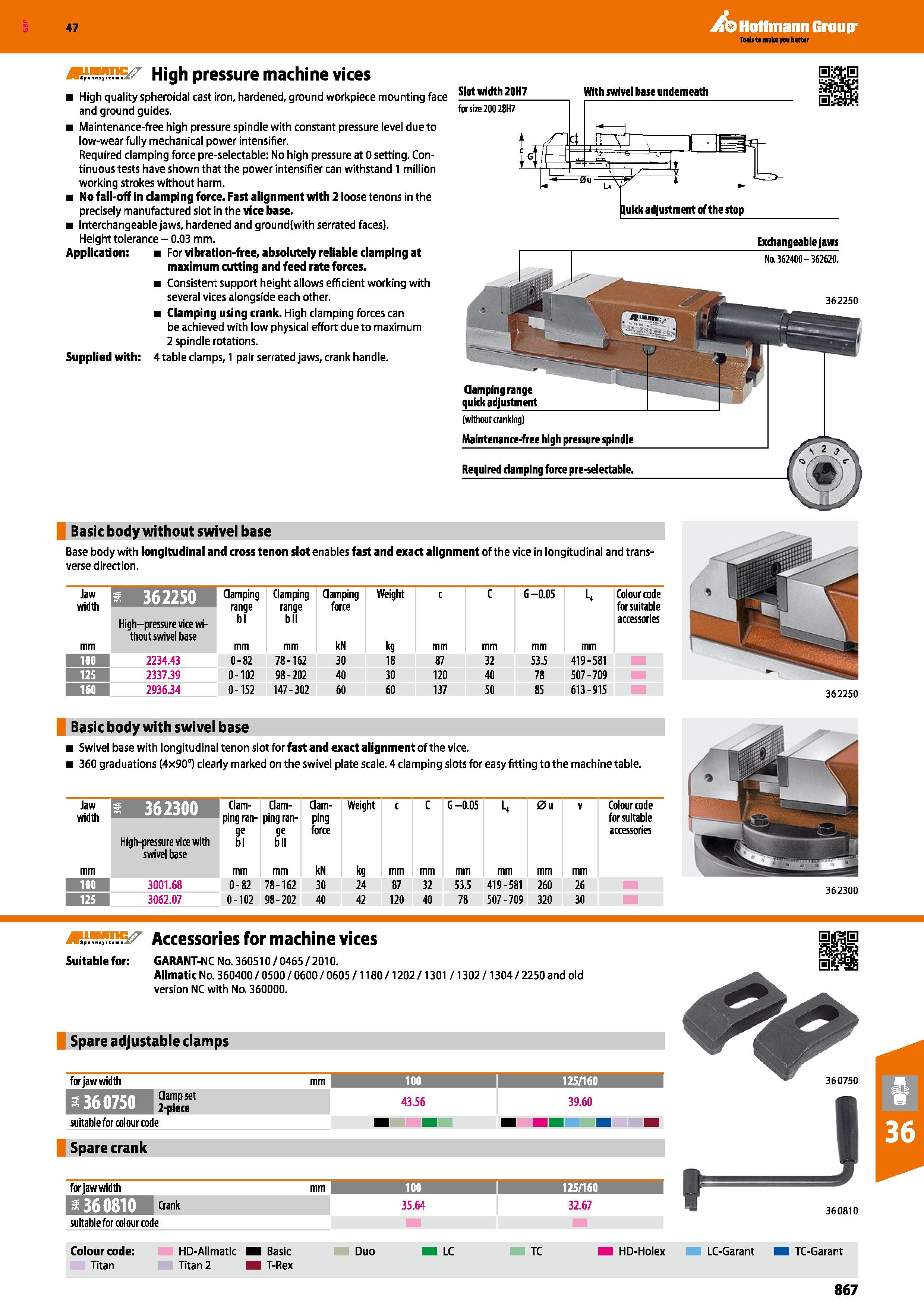

Hoffmann Group High pressure machine vices High quality spheroidal cast iron, hardened, ground workpiece mounting face and ground guides. Maintenance-free high pressure spindle with constant pressure level due to low-wear fully mechanical power intensifier. Required clamping force pre-selectable: No high pressure at 0 setting. Continuous tests have shown that the power intensifier can withstand 1 million working strokes without harm. No fall-off in clamping force. Fast alignment with 2 loose tenons in the precisely manufactured slot in the vice base. Interchangeable jaws, hardened and ground(with serrated faces). Height tolerance - 0.03 mm. Application: For vibration-free, absolutely reliable clamping at maximum cutting and feed rate forces. Consistent support height allows efficient working with several vices alongside each other. Clamping using crank. High clamping forces can be achieved with low physical effort due to maximum 2 spindle rotations. Supplied with: 4 table clamps, 1 pair serrated jaws, crank handle. Slot width 20H7 (without cranking) Maintenance-free high pressure spindle Required damping force pre-selectable. Basic body without swivel base Base body with longitudinal and cross tenon slot enables fast and exact alignment of the vice in longitudinal and transverse direction. Jaw width mm 3 362250 Clamping range bl mm Clamping range bll mm Clamping force kN Weight c C G-0.05 L< Colour code for suitable accessories High-pressure vice without swivel base kg mm 100 2234.43 0-82 78-162 30 18 87 32 53.5 419-581 125 2337.39 0-102 98 - 202 40 30 120 40 78 507-709 160 2936.34 0-152 147-302 60 60 137 50 85 613-915 Basic body with swivel base Swivel base with longitudinal tenon slot for fast and exact alignment of the vice. 360 graduations (4x90°) clearly marked on the swivel plate scale. 4 clamping slots for easy fitting to the machine table. Jaw width 3 362300 Clamping range bl Clamping range bll Clam- ping force Weight c C G-0.05 L, 0u V Migh-pressure vice with swivel base mm kN kg mm 100 3001.68 0-82 78-162 30 24 87 32 53.5 419-581 260 26 125 3062.07 0-102 98-202 40 42 120 40 78 507-709 320 30 Colour code for suitable accessories 362300 Accessories for machine vices Suitable for: GARANT-NC No. 360510 / 0465 / 2010. Allmatic No. 360400 / 0500 / 0600 / 0605 /1180 /1202 /1301 /1302 /1304 / 2250 and old version NC with No. 360000. Spare adjustable clamps for jaw width mm 100 1 125/160 ISB%r 43.56 39.60 suitable for colour code Spare crank for jaw width mm 100 i 125/160 i Is 360810 35.64 32.67 360810 suitable for colour code Colour code: HD-Allmatic Basic Duo LC TC HD-Holex LC-Garant TC-Garant Titan Titan 2 T-Rex 867 Exchangeable jaws Clamping range quick adjustment Na 362400-362620. 362250 362250
