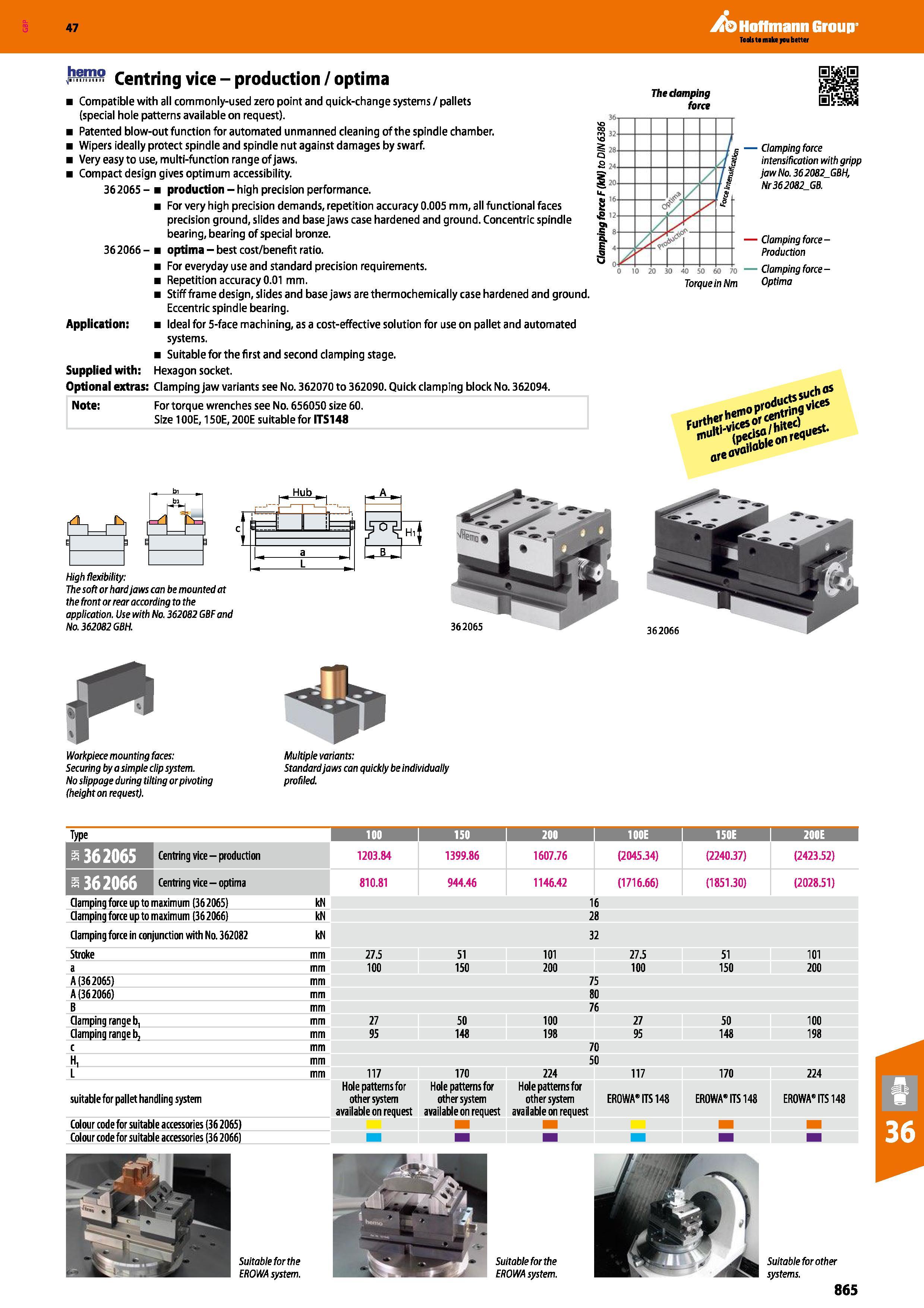

Hoffmann Group 47 hemo Centring vice - production / optima 362066- I Compatible with all commonly-used zero point and quick-change systems / pallets (special hole patterns available on request). Patented blow-out function for automated unmanned cleaning of the spindle chamber. Wipers ideally protect spindle and spindle nut against damages by swarf. Very easy to use, multi-function range of jaws. Compact design gives optimum accessibility. 362065 - production - high precision performance. For very high precision demands, repetition accuracy 0.005 mm, all functional faces precision ground, slides and base jaws case hardened and ground. Concentric spindle bearing, bearing of special bronze, optima - best cost/benefit ratio. For everyday use and standard precision requirements. Repetition accuracy 0.01 mm. Stiff frame design, slides and base jaws are thermochemically case hardened and ground. Eccentric spindle bearing. Ideal for 5-face machining, as a cost-effective solution for use on pallet and automated systems. Suitable for the first and second clamping stage. Hexagon socket. Clamping jaw variants see No. 362070 to 362090. Quick clamping block No. 362094. For torque wrenches see No. 656050 size 60. Size 100E, 150E, 200E suitable for ITS148 The damping forte / / / £ j / -£ J d / / Y y s : Clamping force intensification with gripp jaw No. 362082_GBH, Nr362082_GB. Clamping force-Production Application: Supplied with: Optional extras: Note: Torque in Nm Optima ore ovailo' , bi bi Hub. High flexibility: The soft or hard jaws can be mounted at the front or rear according to the application. Use with No. 362082 GBF and No. 362082 GBH. Hi Workpiece mounting faces: Securing by a simple clip system. No slippage during tilting or pivoting (height on request). Multiple variants: Standardjaws can quickly be individually profiled Type 100 150 200 I 100E i 150E 200E i 362065 Centring vice - production 1203.84 1399.86 1607.76 (2045.34) (2240.37) (2423.52) 362066 Centring vice-optima 810.81 944.46 1146.42 (1716.66) (1851.30) (2028.51) Clamping force up to maximum (36 2065) kN 16 Clamping force up to maximum (36 2066) kN 28 Clamping force in conjunction with No. 362082 kN 32 Stroke mm 27.5 51 101 27.5 51 101 a mm 100 150 200 100 150 200 A (36 2065) mm 75 A (36 2066) mm 80 B mm 76 Clamping range b, mm 27 50 100 27 50 100 Clamping range b, mm 95 148 198 95 148 198 c mm 70 H, mm 50 L mm 117 170 224 117 170 224 Hole patterns for Hole patterns for Hole patterns for suitable for pallet handling system other system other system other system EROWA'ITS 148 EROWA” ITS 148 EROWA” ITS 148 available on request available on request available on request Colour code for suitable accessories (36 2065) Colour code for suitable accessories (36 2066) Suitable for the CROWA system. Suitable for the EROWA system. Suitable for other systems. 865
