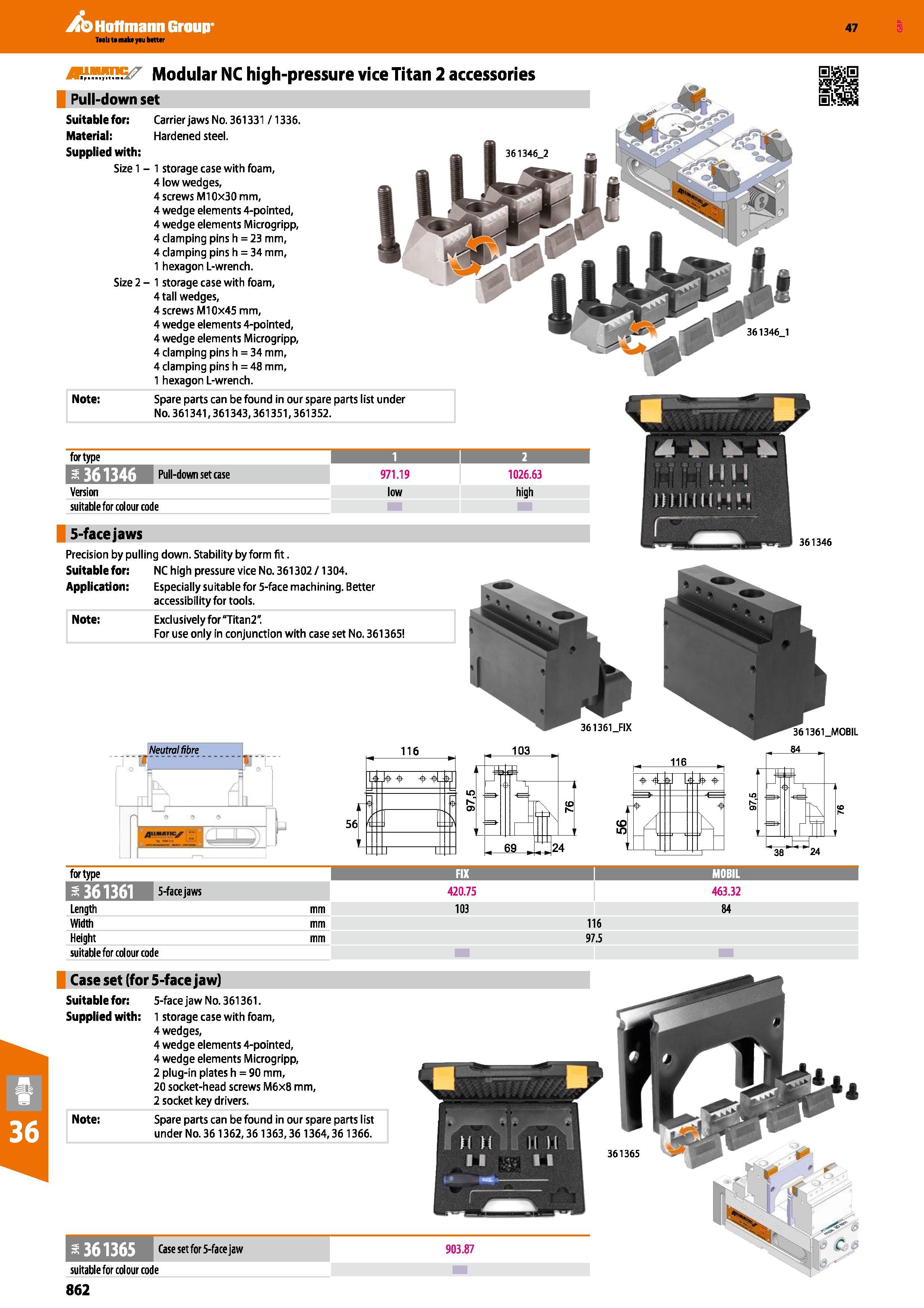

862 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.862

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 862 0862 ENG Lab2u

Hoffmann Group for type 1 1 I 2 1 a 361346 IMB1T 971.19 1026.63 Version low high suitable for colour code 5-face jaws Precision by pulling down. Stability by form fit. Suitable for: NC high pressure vice No. 361302 /1304. Application: Especially suitable for 5-face machining. Better accessibility for tools. Note: Exdusivelyfor“Titan2". For use only in conjunction with case set No. 361365 a 361361 Length Width Height suitable for colour code 5-face jaws 420.75 103 463.32 84 Taals to malnyau better Modular NC high-pressure vice Titan 2 accessories Pull-down set Carrier jaws No. 361331 /1336. Hardened steel. Suitable for: Material: Supplied with: Size 1 - 1 storage case with foam, 4 low wedges, 4 screws Ml 0x30 mm, 4 wedge elements 4-pointed, 4 wedge elements Microgripp, 4 clamping pins h = 23 mm, 4 clamping pins h = 34 mm, 1 hexagon L-wrench. Size 2 - 1 storage case with foam, 4 tall wedges, 4 screws M10x45 mm, 4 wedge elements 4-pointed, 4 wedge elements Microgripp, 4 clamping pins h = 34 mm, 4 clamping pins h = 48 mm, 1 hexagon L-wrench. Note: Spare parts can be found in our spare parts list under No. 361341,361343,361351,361352. : Neutral fibre Case set (for 5-face jaw) Suitable for: 5-face jaw No. 361361. Supplied with: 1 storage case with foam, 4 wedges, Case set for 5-face jaw 903.87 suitable for colour code
