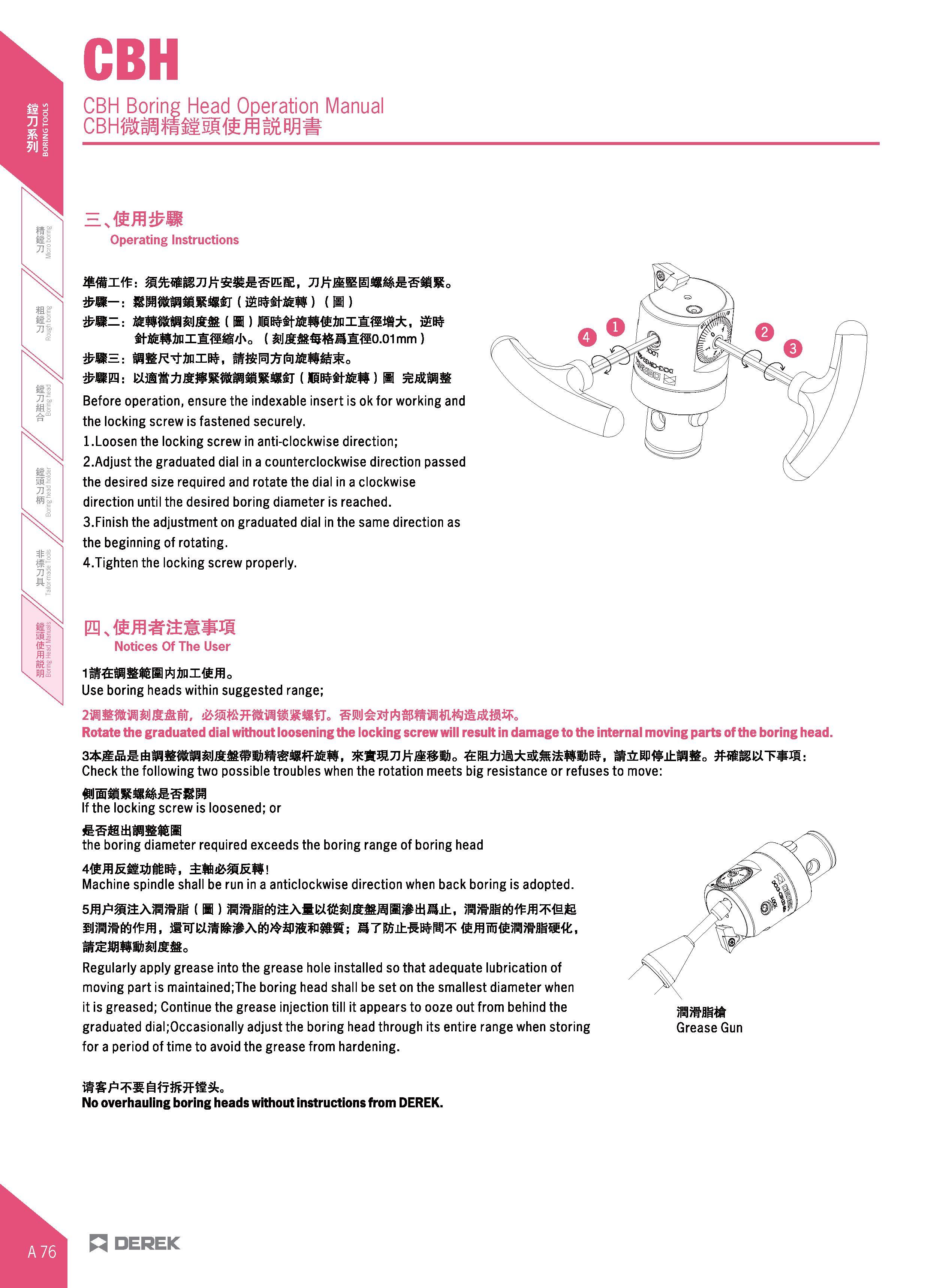

CBH CBH Boring Head Operation Manual Operating Instructions m . KHtm K cr (msHtum) ( ) &m=.: mmiMMam ( ) jwMHHWuniraa . an (£'J£il &l Sg0.01 mm) &m=: IPWJWlnin Anemia. mm: (JiRtmw) Before operation, ensure the indexable insert is ok for working and the locking screw is fastened securely. 1.Loosen the locking screw in anti-clockwise direction; 2.Adjust the graduated dial in a counterclockwise direction passed the desired size required and rotate the dial in a clockwise direction until the desired boring diameter is reached. 3.Finish the adjustment on graduated dial in the same direction as the beginning of rotating. 4.Tighten the locking screw properly. Notices Of The User HraMSftHAftixttfl, Use boring heads within suggested range; Rotate the graduated dial without loosening the locking screw will result in damage to the internal moving parts of the boring head. Check the following two possible troubles when the rotation meets big resistance or refuses to move: If the locking screw is loosened; or the boring diameter required exceeds the boring range of boring head Machine spindle shall be run in a anticlockwise direction when back boring is adopted. ( ) flftJBftSASUttHASJin9lIIB.it, Regularly apply grease into the grease hole installed so that adequate lubrication of moving part is maintained;The boring head shall be set on the smallest diameter when it is greased; Continue the grease injection till it appears to ooze out from behind the graduated dial;Occasionally adjust the boring head through its entire range when storing for a period of time to avoid the grease from hardening. Grease Gun No overhauling boring heads without instructions from DEREK. DEREK
