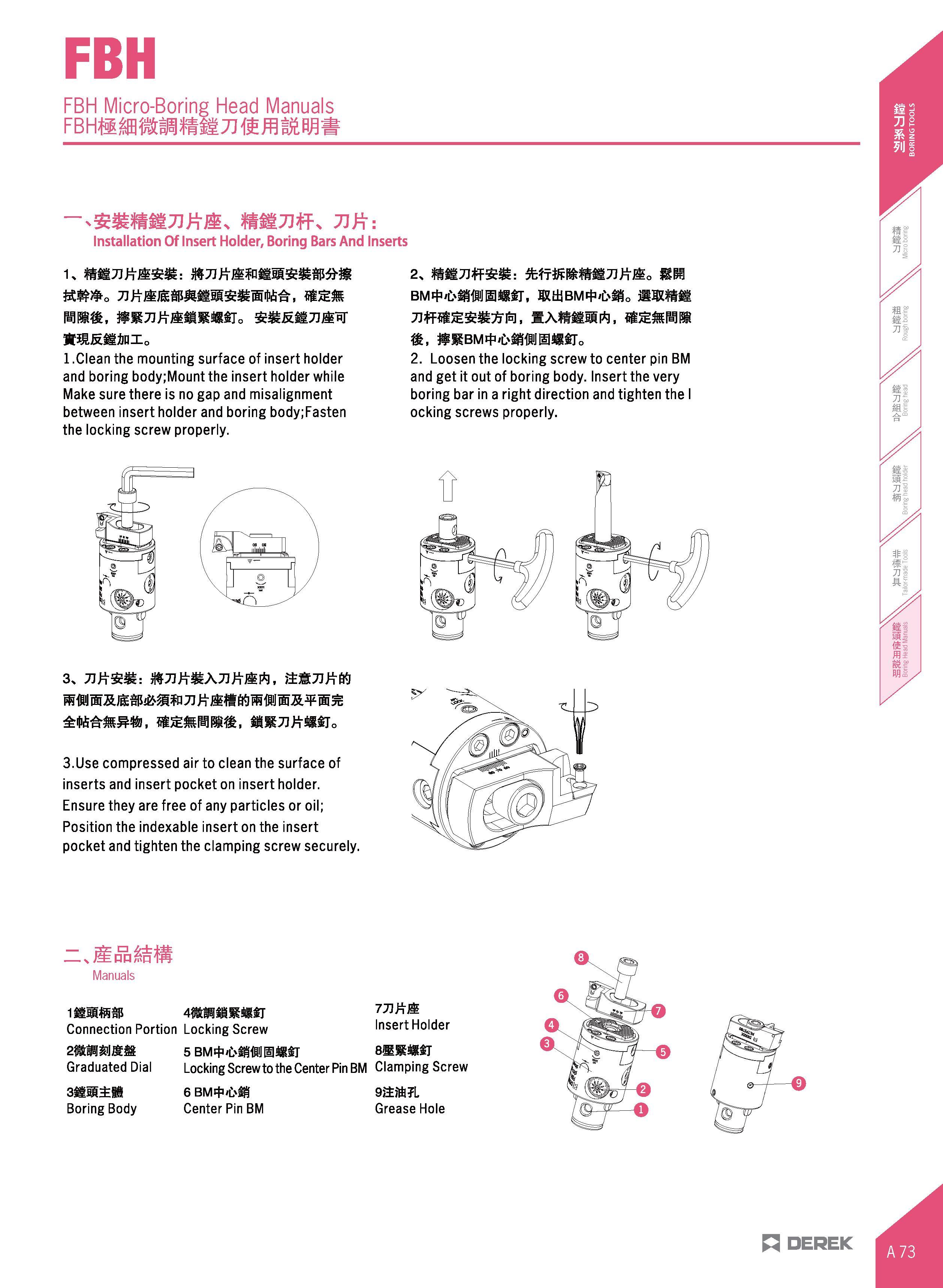

FBH FBH Micro-Boring Head Manuals mtTllfts 71ft: Installation Of Insert Holder, Boring Bars And Inserts sc o nmt. MmMMA io 1 .Clean the mounting surface of insert holder and boring body;Mount the insert holder while Make sure there is no gap and misalignment between insert holder and boring body;Fasten the locking screw properly. 3„ mTixmxTiKmft, 3.Use compressed air to clean the surface of inserts and insert pocket on insert holder. Ensure they are free of any particles or oil; Position the indexable insert on the insert pocket and tighten the clamping screw securely. 2, nHuiff&S: mm wmm jiwmst&jsn. xwsgnfc, fits&mn ft. 2. Loosen the locking screw to center pin BM and get it out of boring body. Insert the very boring bar in a right direction and tighten the I ocking screws properly. inn ftp Manuals 77 ftm Insert Holder Connection Portion Locking Screw 5 8 £ T Graduated Dial Locking Screwto the Center Pin BM Clamping Screw mmum 6 9a L Boring Body Center Pin BM Grease Hole DEREK
