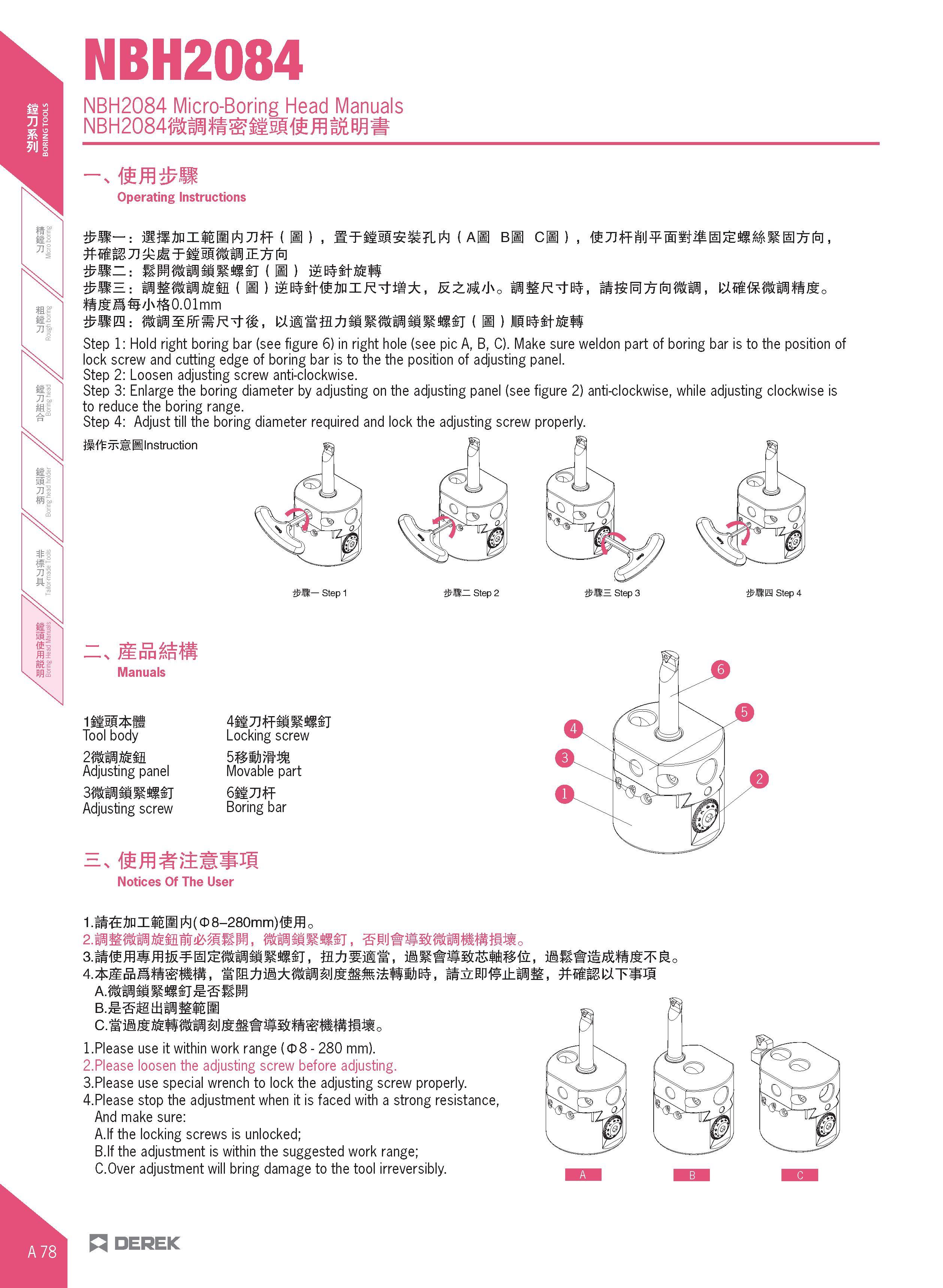

NBH2084 NBH2084 Micro-Boring Head Manuals % Operating Instructions Jf-fiBnSTJ ill sH lilt iji IE ° iTmrngmiift (ah bh cun i : (u) £ =: ins ( H ih tv Step 1: Hold right boring bar (see figure 6) in right hole (see pic A, B, C). Make sure weldon part of boring bar is to the position of lock screw and cutting edge of boring bar is to the the position of adjusting panel. Step 2: Loosen adjusting screw anti-clockwise. Step 3: Enlarge the boring diameter by adjusting on the adjusting panel (see figure 2) anti-clockwise, while adjusting clockwise is to reduce the boring range. Step 4: Adjust till the boring diameter required and lock the adjusting screw properly. III Instruction I Step 1 M Step 2 3 Step 4 % nnftn Manuals 11 Tool body mmmm Adjusting panel Adjusting screw Amjimmm Locking screw mmmm Movable part Boring bar Notices Of The User 1 .H fobniHH rt (O 8-280mm)ffiffl 0 4. ipnp 1.Please use it within work range (08 - 280 mm). 2.Please loosen the adjusting screw before adjusting. 3.Please use special wrench to lock the adjusting screw properly. 4.Please stop the adjustment when it is faced with a strong resistance, And make sure: A.lf the locking screws is unlocked; B.lf the adjustment is within the suggested work range; C.Over adjustment will bring damage to the tool irreversibly. DEREK
