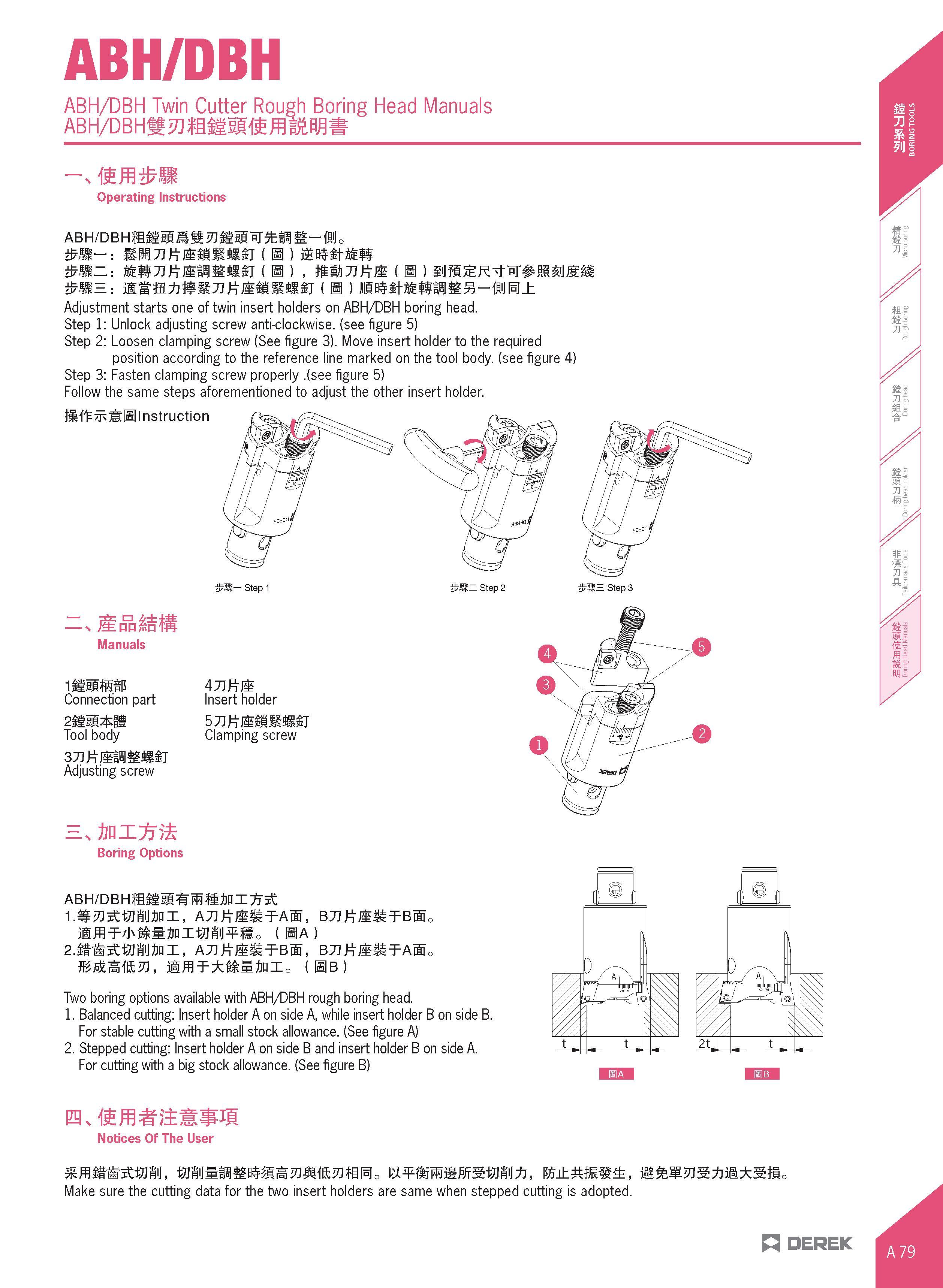

ABH/DBH ABH/DBH Twin Cutter Rough Boring Head Manuals ABH/DBHSIi0ffl 5lffifflfeW % Operating Instructions AB H/D B H ffljlflg in jlflg nTSfciH 8- fill o I ) (n), msbxnm (u ) Adjustment starts one of twin insert holders on ABH/DBH boring head. Step 1: Unlock adjusting screw anti-clockwise, (see figure 5) Step 2: Loosen clamping screw (See figure 3). Move insert holder to the required position according to the reference line marked on the tool body, (see figure 4) Step 3: Fasten clamping screw properly .(see figure 5) Follow the same steps aforementioned to adjust the other insert holder. SB Instruction I- Step 1 n Ilppfta Manuals litsfffi Connection part Insert holder Clamping screw Tool body Adjusting screw Boring Options AB H/D B H ffimi W Sira I 5t AzittJtsiTA BjittJtsiTB c MT/J'f&MinitflPiWao ( BA) aji sitb bji sitaSc Two boring options available with ABH/DBH rough boring head. 1. Balanced cutting: Insert holder A on side A, while insert holder B on side B. For stable cutting with a small stock allowance. (See figure A) 2. Stepped cutting: Insert holder A on side B and insert holder B on side A. For cutting with a big stock allowance. (See figure B) Notices Of The User Make sure the cutting data for the two insert holders are same when stepped cutting is adopted. DEREK 09
