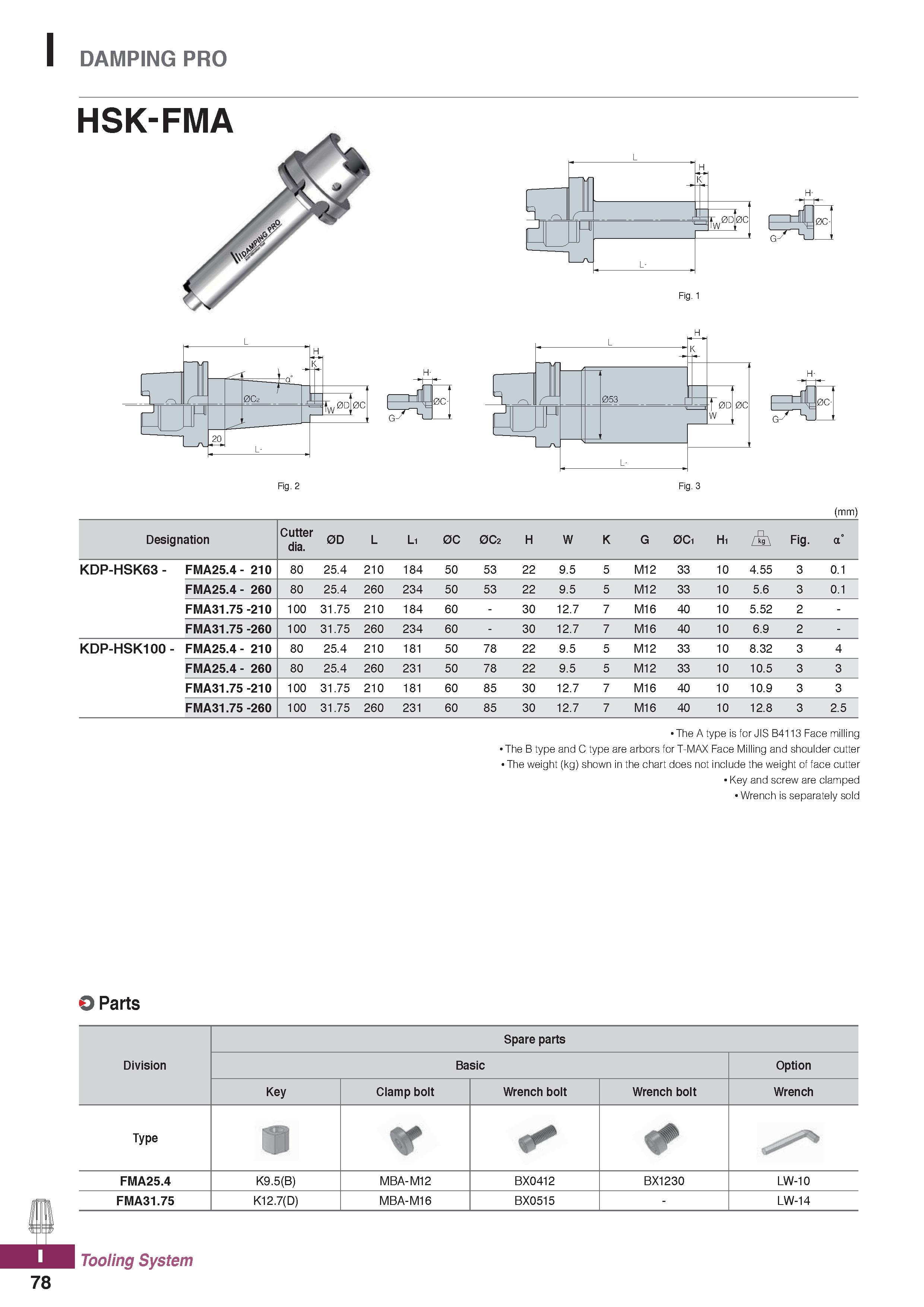

I DAMPING PRO HSK-FMA Fig. 1 Fig. 2 (mm) Designation Cutter dia. 0D L L1 0C 0C2 H W K G 0C1 H1 Fig. a" KDP-HSK63 - FMA25.4 -210 80 25.4 210 184 50 53 22 9.5 5 M12 33 10 4.55 3 0.1 FMA25.4 - 260 80 25.4 260 234 50 53 22 9.5 5 M12 33 10 5.6 3 0.1 FMA31.75 -210 100 31.75 210 184 60 - 30 12.7 7 M16 40 10 5.52 2 - FMA31.75 -260 100 31.75 260 234 60 - 30 12.7 7 M16 40 10 6.9 2 - KDP-HSK100 - FMA25.4 -210 80 25.4 210 181 50 78 22 9.5 5 M12 33 10 8.32 3 4 FMA25.4 - 260 80 25.4 260 231 50 78 22 9.5 5 M12 33 10 10.5 3 3 FMA31.75 -210 100 31.75 210 181 60 85 30 12.7 7 M16 40 10 10.9 3 3 FMA31.75 -260 100 31.75 260 231 60 85 30 12.7 7 M16 40 10 12.8 3 2.5 H H The A type is for JIS B4113 Face milling The B type and C type are arbors for T-MAX Face Milling and shoulder cutter The weight (kg) shown in the chart does not include the weight of face cutter Key and screw are clamped Wrench is separately sold O Parts Division Spare parts Basic Option Key Clamp bolt Wrench bolt Wrench bolt Wrench Type r V FMA25.4 K9.5(B) MBA-M12 BX0412 BX1230 LW-10 FMA31.75 K12.7(D) MBA-M16 BX0515 - LW-14 1 Tooling System 78
