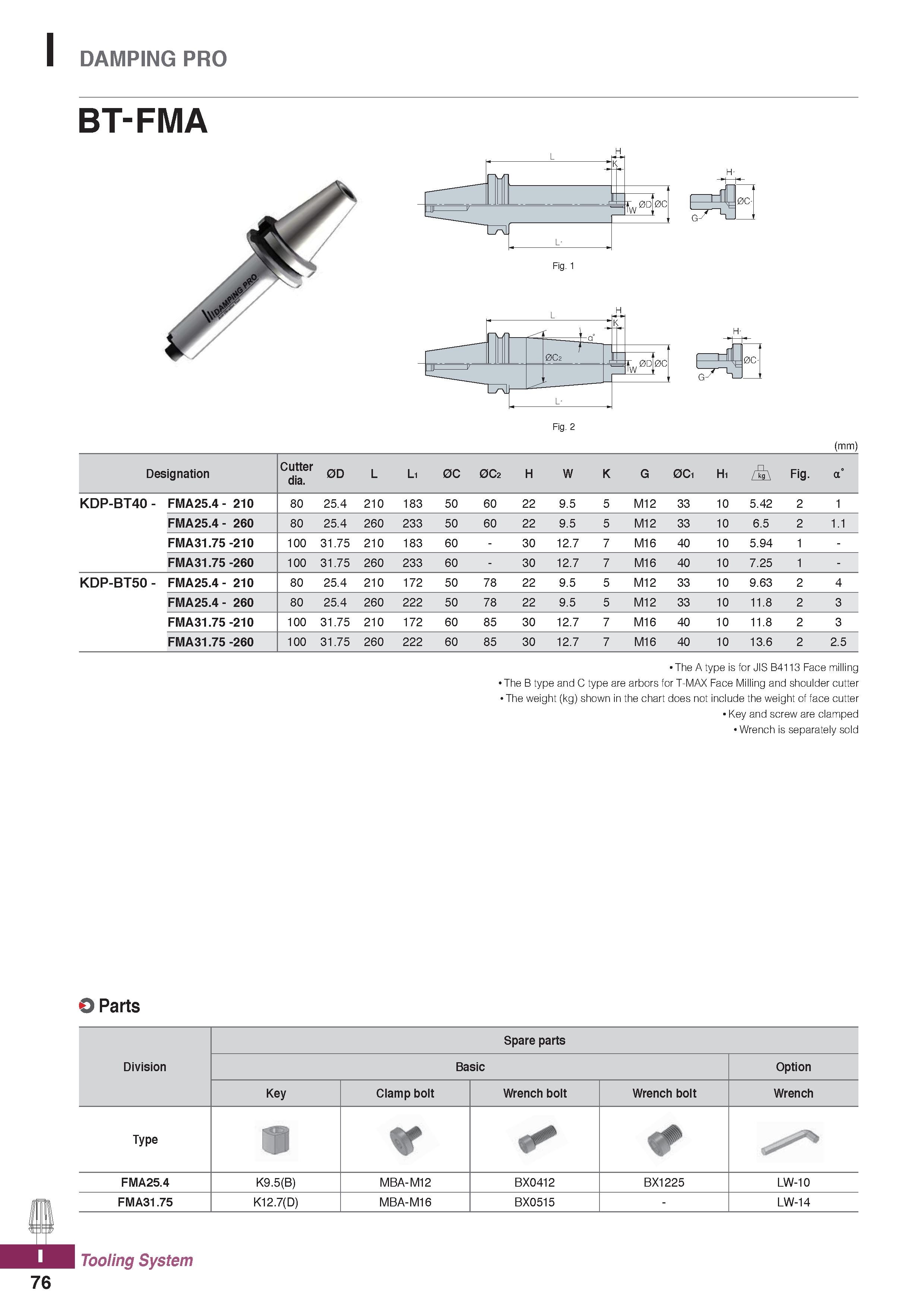

I DAMPING PRO BT-FMA Fig. 2 0C (mm) Designation Cutter dia. 0D L L1 0C 0C2 H W K G 0C1 H1 Fig. a" KDP-BT40 - FMA25.4 - 210 80 25.4 210 183 50 60 22 9.5 5 M12 33 10 5.42 2 1 FMA25.4 - 260 80 25.4 260 233 50 60 22 9.5 5 M12 33 10 6.5 2 1.1 FMA31.75 -210 100 31.75 210 183 60 - 30 12.7 7 M16 40 10 5.94 1 - FMA31.75 -260 100 31.75 260 233 60 - 30 12.7 7 M16 40 10 7.25 1 - KDP-BT50 - FMA25.4 - 210 80 25.4 210 172 50 78 22 9.5 5 M12 33 10 9.63 2 4 FMA25.4 - 260 80 25.4 260 222 50 78 22 9.5 5 M12 33 10 11.8 2 3 FMA31.75 -210 100 31.75 210 172 60 85 30 12.7 7 M16 40 10 11.8 2 3 FMA31.75 -260 100 31.75 260 222 60 85 30 12.7 7 M16 40 10 13.6 2 2.5 H The A type is for JIS B4113 Face milling The B type and C type are arbors for T-MAX Face Milling and shoulder cutter The weight (kg) shown in the chart does not include the weight of face cutter Key and screw are clamped Wrench is separately sold O Parts Division Spare parts Basic Option Key Clamp bolt Wrench bolt Wrench bolt Wrench Type V / FMA25.4 K9.5(B) MBA-M12 BX0412 BX1225 LW-10 FMA31.75 K12.7(D) MBA-M16 BX0515 - LW-14 1 Tooling System 76
