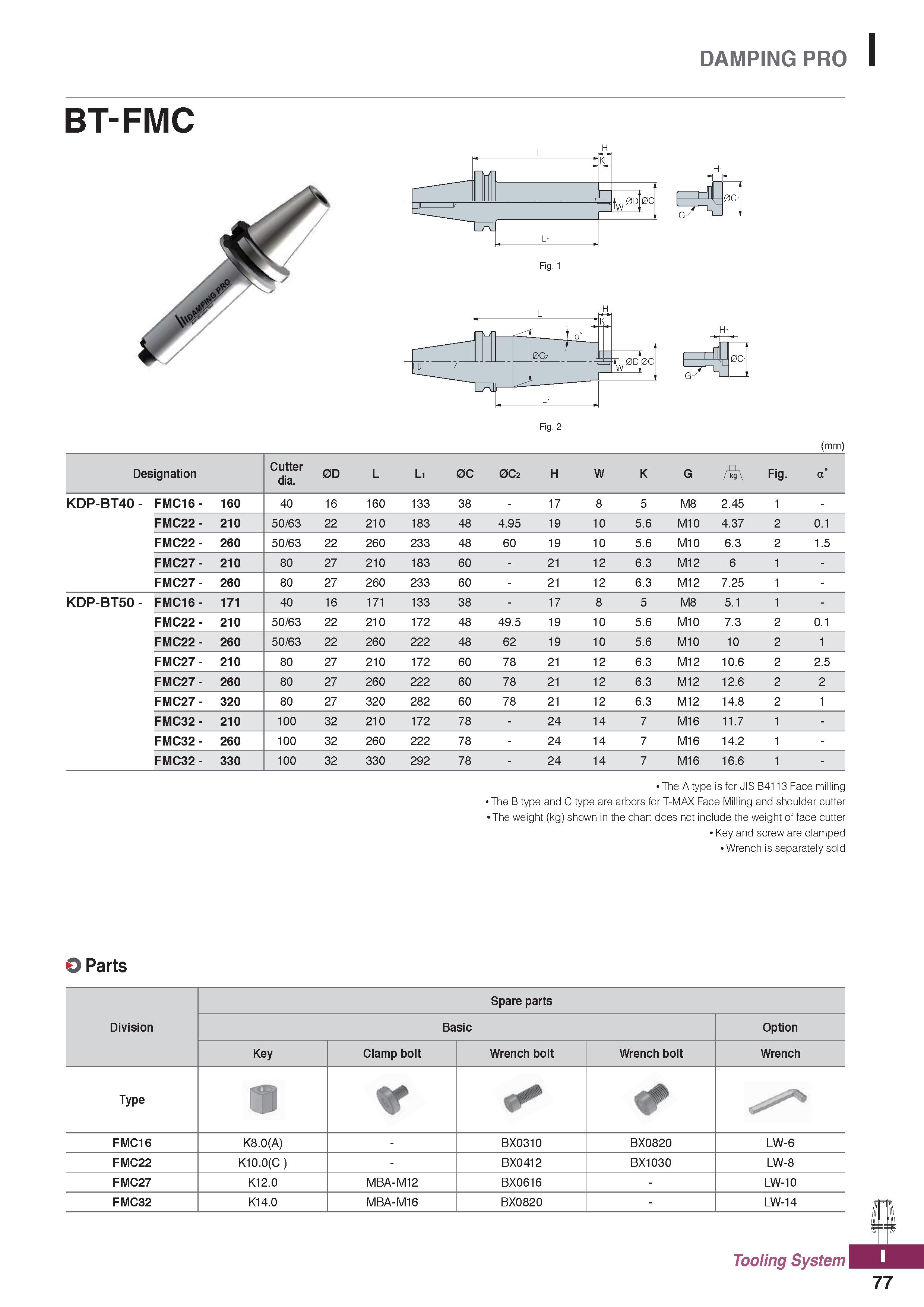

DAMPING PRO I BT-FMC Fig. 2 (mm) Designation Cutter dia. 0D L L1 0C 0C2 H W K G A Fig. a" KDP-BT40 - FMC16 - 160 40 16 160 133 38 - 17 8 5 M8 2.45 1 - FMC22 - 210 50/63 22 210 183 48 4.95 19 10 5.6 M10 4.37 2 0.1 FMC22 - 260 50/63 22 260 233 48 60 19 10 5.6 M10 6.3 2 1.5 FMC27 - 210 80 27 210 183 60 - 21 12 6.3 M12 6 1 - FMC27 - 260 80 27 260 233 60 - 21 12 6.3 M12 7.25 1 - KDP-BT50 - FMC16 - 171 40 16 171 133 38 - 17 8 5 M8 5.1 1 - FMC22 - 210 50/63 22 210 172 48 49.5 19 10 5.6 M10 7.3 2 0.1 FMC22 - 260 50/63 22 260 222 48 62 19 10 5.6 M10 10 2 1 FMC27 - 210 80 27 210 172 60 78 21 12 6.3 M12 10.6 2 2.5 FMC27 - 260 80 27 260 222 60 78 21 12 6.3 M12 12.6 2 2 FMC27 - 320 80 27 320 282 60 78 21 12 6.3 M12 14.8 2 1 FMC32 - 210 100 32 210 172 78 - 24 14 7 M16 11.7 1 - FMC32 - 260 100 32 260 222 78 - 24 14 7 M16 14.2 1 - FMC32 - 330 100 32 330 292 78 - 24 14 7 M16 16.6 1 - The A type is for JIS B4113 Face milling The B type and C type are arbors for T-MAX Face Milling and shoulder cutter The weight (kg) shown in the chart does not include the weight of face cutter Key and screw are clamped Wrench is separately sold H H- O Parts Division Spare parts Basic Option Key Clamp bolt Wrench bolt Wrench bolt Wrench Type r FMC16 K8.0(A) - BX0310 BX0820 LW-6 FMC22 K10.0(C ) - BX0412 BX1030 LW-8 FMC27 K12.0 MBA-M12 BX0616 - LW-10 FMC32 K14.0 MBA-M16 BX0820 - LW-14 Tooling Syste l 77
