1212 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.I74

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. I74 1212 Lab2u

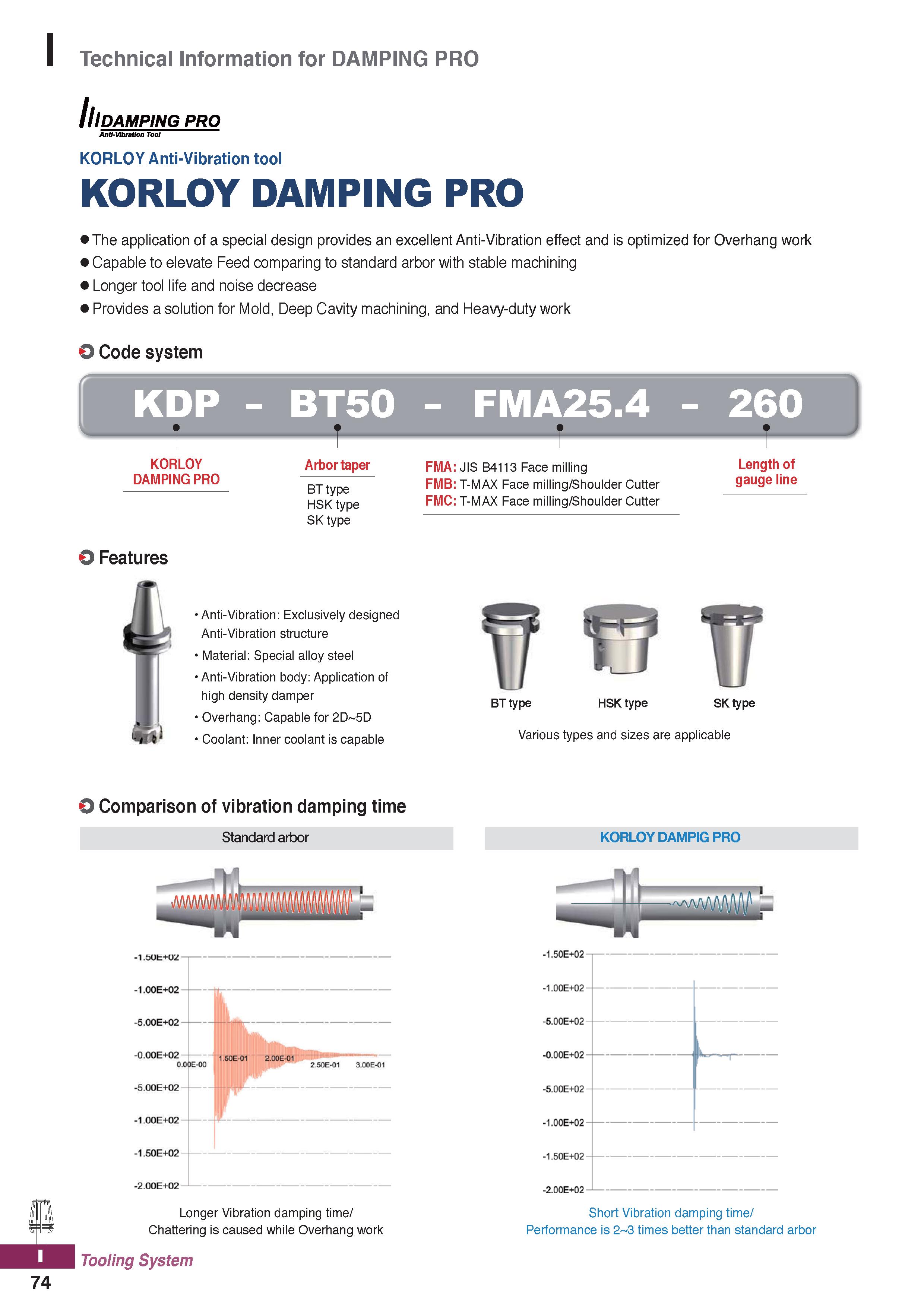

Technical Information for DAMPING PRO // I DAMPING PRO Antf-Vlbratlon Tool KORLOY Anti-Vibration tool KORLOY DAMPING PRO The application of a special design provides an excellent Anti-Vibration effect and is optimized for Overhang work Capable to elevate Feed comparing to standard arbor with stable machining Longer tool life and noise decrease Provides a solution for Mold, Deep Cavity machining, and Heavy-duty work O Code system KDP - BT50 - FMA25.4 - 260 KORLOY DAMPING PRO O Features Arbor taper BT type HSK type SK type Anti-Vibration: Exclusively designed Anti-Vibration structure Material: Special alloy steel Anti-Vibration body: Application of high density damper Overhang: Capable for 2D 5D Coolant: Inner coolant is capable FMA: JIS B4113 Face milling FMB: T-MAX Face milling/Shoulder Cutter FMC: T-MAX Face milling/Shoulder Cutter BT type HSK type Length of gauge line SK type Various types and sizes are applicable O Comparison of vibration damping time Standard arbor KORLOY DAMPIG PRO Longer Vibration damping time/ Chattering is caused while Overhang work Tooling System 1.50E+02 0.00E+02 5.00E+02 I 1.50E+02 2.00E+02 Short Vibration damping time/ Performance is 2-3 times better than standard arbor 74
