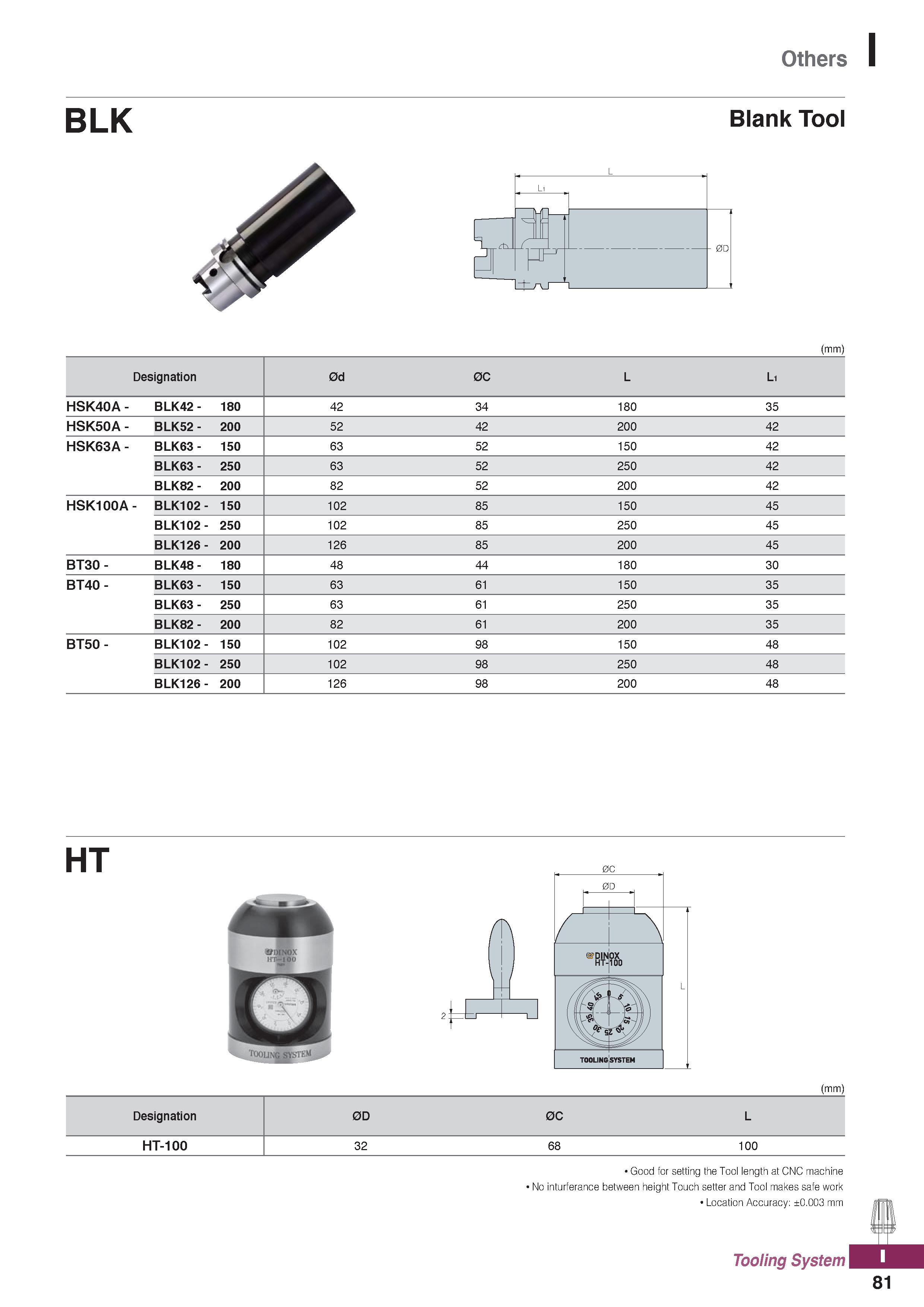

Others BLK Blank Tool (mm) Designation 0d 0C L L1 HSK40A - BLK42- 180 42 34 18O 35 HSK50A - BLK52- 200 52 42 2OO 42 HSK63A - BLK63- 150 63 52 15O 42 BLK63- 250 63 52 25O 42 BLK82- 200 82 52 2OO 42 HSK100A - BLK102 - 150 1O2 85 15O 45 BLK102- 250 1O2 85 25O 45 BLK126- 200 126 85 2OO 45 BT30 - BLK48- 180 48 44 18O 30 BT40 - BLK63- 150 63 61 15O 35 BLK63- 250 63 61 25O 35 BLK82- 200 82 61 2OO 35 BT50 - BLK102- 150 1O2 98 15O 48 BLK102- 250 1O2 98 25O 48 BLK126- 200 126 98 2OO 48 HT (mm) Designation 0D 0C L HT-100 32 68 1OO Good for setting the Tool length at CNC machine No inturferance between height Touch setter and Tool makes safe work Location Accuracy: ±0.003 mm Tooling System 81
