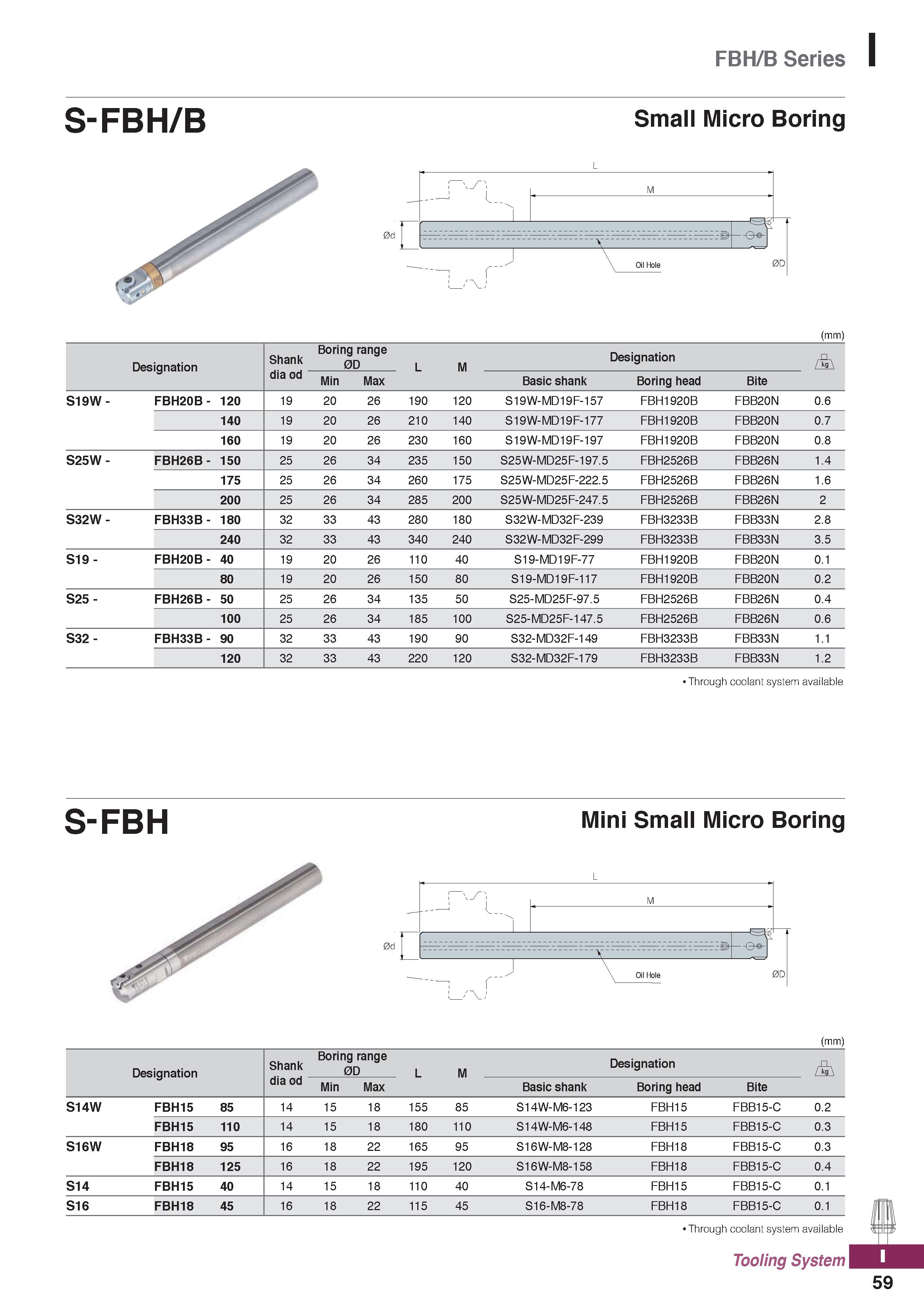

FBH/B Series I S-FBH/B Small Micro Boring 0C (mm) Designation Shank dia od Boring range 0D ' L M Designation Min Max Basic shank Boring head Bite S19W - FBH20B- 120 19 20 26 190 120 S19W-MD19F-157 FBH1920B FBB20N 0.6 140 19 20 26 210 140 S19W-MD19F-177 FBH1920B FBB20N 0.7 160 19 20 26 230 160 S19W-MD19F-197 FBH1920B FBB20N 0.8 S25W - FBH26B- 150 25 26 34 235 150 S25W-MD25F-197.5 FBH2526B FBB26N 1.4 175 25 26 34 260 175 S25W-MD25F-222.5 FBH2526B FBB26N 1.6 200 25 26 34 285 200 S25W-MD25F-247.5 FBH2526B FBB26N 2 S32W - FBH33B- 180 32 33 43 280 180 S32W-MD32F-239 FBH3233B FBB33N 2.8 240 32 33 43 340 240 S32W-MD32F-299 FBH3233B FBB33N 3.5 S19 - FBH20B- 40 19 20 26 110 40 S19-MD19F-77 FBH1920B FBB20N 0.1 80 19 20 26 150 80 S19-MD19F-117 FBH1920B FBB20N 0.2 S25 - FBH26B- 50 25 26 34 135 50 S25-MD25F-97.5 FBH2526B FBB26N 0.4 100 25 26 34 185 100 S25-MD25F-147.5 FBH2526B FBB26N 0.6 S32 - FBH33B- 90 32 33 43 190 90 S32-MD32F-149 FBH3233B FBB33N 1.1 120 32 33 43 220 120 S32-MD32F-179 FBH3233B FBB33N 1.2 Through coolant system available S-FBH Mini Small Micro Boring (mm) Designation Shank dia 0d Boring range 0D ' L M Designation Min Max Basic shank Boring head Bite S14W FBH15 85 14 15 18 155 85 S14W-M6-123 FBH15 FBB15-C 0.2 FBH15 110 14 15 18 180 110 S14W-M6-148 FBH15 FBB15-C 0.3 S16W FBH18 95 16 18 22 165 95 S16W-M8-128 FBH18 FBB15-C 0.3 FBH18 125 16 18 22 195 120 S16W-M8-158 FBH18 FBB15-C 0.4 S14 FBH15 40 14 15 18 110 40 S14-M6-78 FBH15 FBB15-C 0.1 S16 FBH18 45 16 18 22 115 45 S16-M8-78 FBH18 FBB15-C 0.1 Through coolant system available Tooling System 59 M 0D
