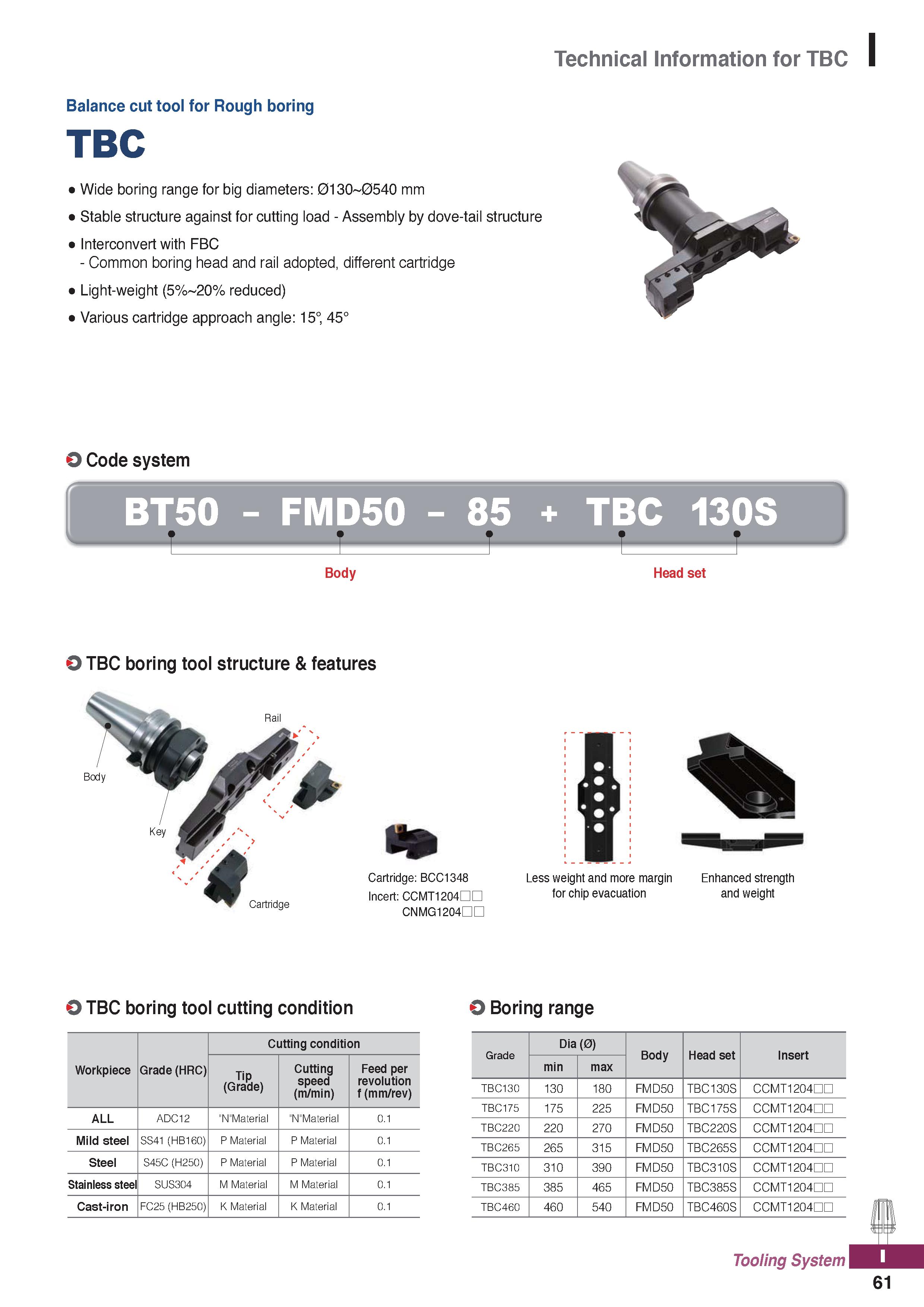

Technical Information for TBC Balance cut tool for Rough boring TBC Wide boring range for big diameters: 013O 054O mm Stable structure against for cutting load - Assembly by dove-tail structure Interconvertwith FBC - Common boring head and rail adopted, different cartridge Light-weight (5% 20% reduced) Various cartridge approach angle: 15° 45° Code system BT50 - FMD50 - 85 + TBC 130S Body Head set TBC boring tool structure & features Body Cartridge Cartridge: BCC1348 Incert: CCMT1204DD CNMG1204DC Less weight and more margin for chip evacuation Enhanced strength and weight TBC boring tool cutting condition Boring range Workpiece Grade (HRC) Cutting condition Tip (Grade) Cutting speed (m/min) Feed per revolution f (mm/rev) ALL ADC12 "N"Material "N"Material 0.1 Mild steel SS41 (HB160) P Material P Material 0.1 Steel S45C (H250) P Material P Material 0.1 Stainless steel SUS304 M Material M Material 0.1 Cast-iron FC25 (HB250) K Material K Material 0.1 Grade Dia (0) Body Head set Insert min max TBC130 130 180 FMD50 TBC130S CCMT1204DD TBC175 175 225 FMD50 TBC175S CCMT1204DD TBC220 220 270 FMD50 TBC220S CCMT1204DD TBC265 265 315 FMD50 TBC265S CCMT1204DD TBC310 310 390 FMD50 TBC310S CCMT1204DD TBC385 385 465 FMD50 TBC385S CCMT1204DD TBC460 460 540 FMD50 TBC460S CCMT1204DD Tooling System 61
