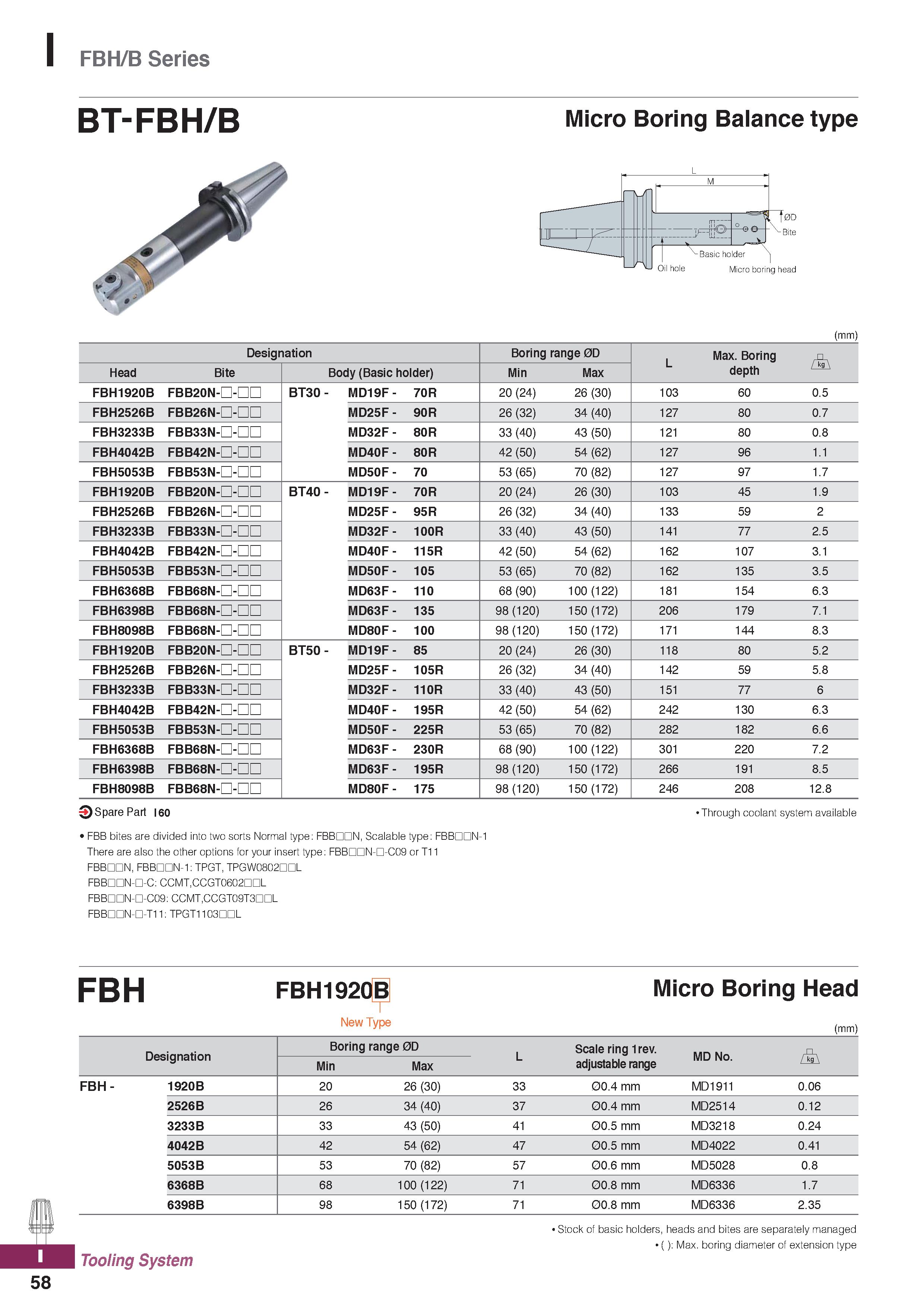

I FBH/B Series BT-FBH/B Micro Boring Balance type (mm) Designation Boring range 0D L Max. Boring depth Head Bite Body (Basic holder) Min Max FBH1920B FBB20N-D-DD BT30- MD19F - 70R 20 (24) 26 (30) 103 60 0.5 FBH2526B FBB26N-D-DD MD25F - 90R 26 (32) 34 (40) 127 80 0.7 FBH3233B FBB33N-D-DD MD32F - 80R 33 (40) 43 (50) 121 80 0.8 FBH4042B FBB42N-D-DD MD40F - 80R 42 (50) 54 (62) 127 96 1.1 FBH5053B FBB53N-D-DD MD50F - 70 53 (65) 70 (82) 127 97 1.7 FBH1920B FBB20N-D-DD BT40 - MD19F - 70R 20 (24) 26 (30) 103 45 1.9 FBH2526B FBB26N-D-DD MD25F - 95R 26 (32) 34 (40) 133 59 2 FBH3233B FBB33N-D-DD MD32F - 100R 33 (40) 43 (50) 141 77 2.5 FBH4042B FBB42N-D-DD MD40F - 115R 42 (50) 54 (62) 162 107 3.1 FBH5053B FBB53N-D-DD MD50F - 105 53 (65) 70 (82) 162 135 3.5 FBH6368B FBB68N-D-DD MD63F - 110 68 (90) 100 (122) 181 154 6.3 FBH6398B FBB68N-D-DD MD63F - 135 98(120) 150 (172) 206 179 7.1 FBH8098B FBB68N-D-DD MD80F - 100 98(120) 150 (172) 171 144 8.3 FBH1920B FBB20N-D-DD BT50 - MD19F - 85 20 (24) 26 (30) 118 80 5.2 FBH2526B FBB26N-D-DD MD25F - 105R 26 (32) 34 (40) 142 59 5.8 FBH3233B FBB33N-D-DD MD32F - 110R 33 (40) 43 (50) 151 77 6 FBH4042B FBB42N-D-DD MD40F - 195R 42 (50) 54 (62) 242 130 6.3 FBH5053B FBB53N-D-DD MD50F - 225R 53 (65) 70 (82) 282 182 6.6 FBH6368B FBB68N-D-DD MD63F - 230R 68 (90) 100 (122) 301 220 7.2 FBH6398B FBB68N-D-DD MD63F - 195R 98(120) 150 (172) 266 191 8.5 FBH8098B FBB68N-D-DD MD80F - 175 98(120) 150 (172) 246 208 12.8 3Spare Part I 60 Through coolant system available FBB bites are divided into two sorts Normal type : FBBHON, Scalable type: FBBHDN-1 There are also the other options for your insert type : FBBDDN-D-C09 or T11 FBBDDN, FBBHDN-1: TPGT, TPGW0802CDL FBBCDN-D-C: CCMT,CCGT0602CDL FBBDDN-D-C09: CCMT,CCGT09T3DDL FBBDDN-D-T11: TPGT1103DDL FBH FBH1920B New Type Micro Boring Head (mm) Designation Boring range 0D L Scale ring 1rev. adjustable range MD No. Min Max FBH - 1920B 20 26 (30) 33 00.4 mm MD1911 0.06 2526B 26 34 (40) 37 00.4 mm MD2514 0.12 3233B 33 43 (50) 41 00.5 mm MD3218 0.24 4042B 42 54 (62) 47 00.5 mm MD4022 0.41 5053B 53 70 (82) 57 00.6 mm MD5028 0.8 6368B 68 100 (122) 71 00.8 mm MD6336 1.7 6398B 98 150 (172) 71 00.8 mm MD6336 2.35 Tooling System 58 Stock of basic holders, heads and bites are separately managed ( ): Max. boring diameter of extension type
