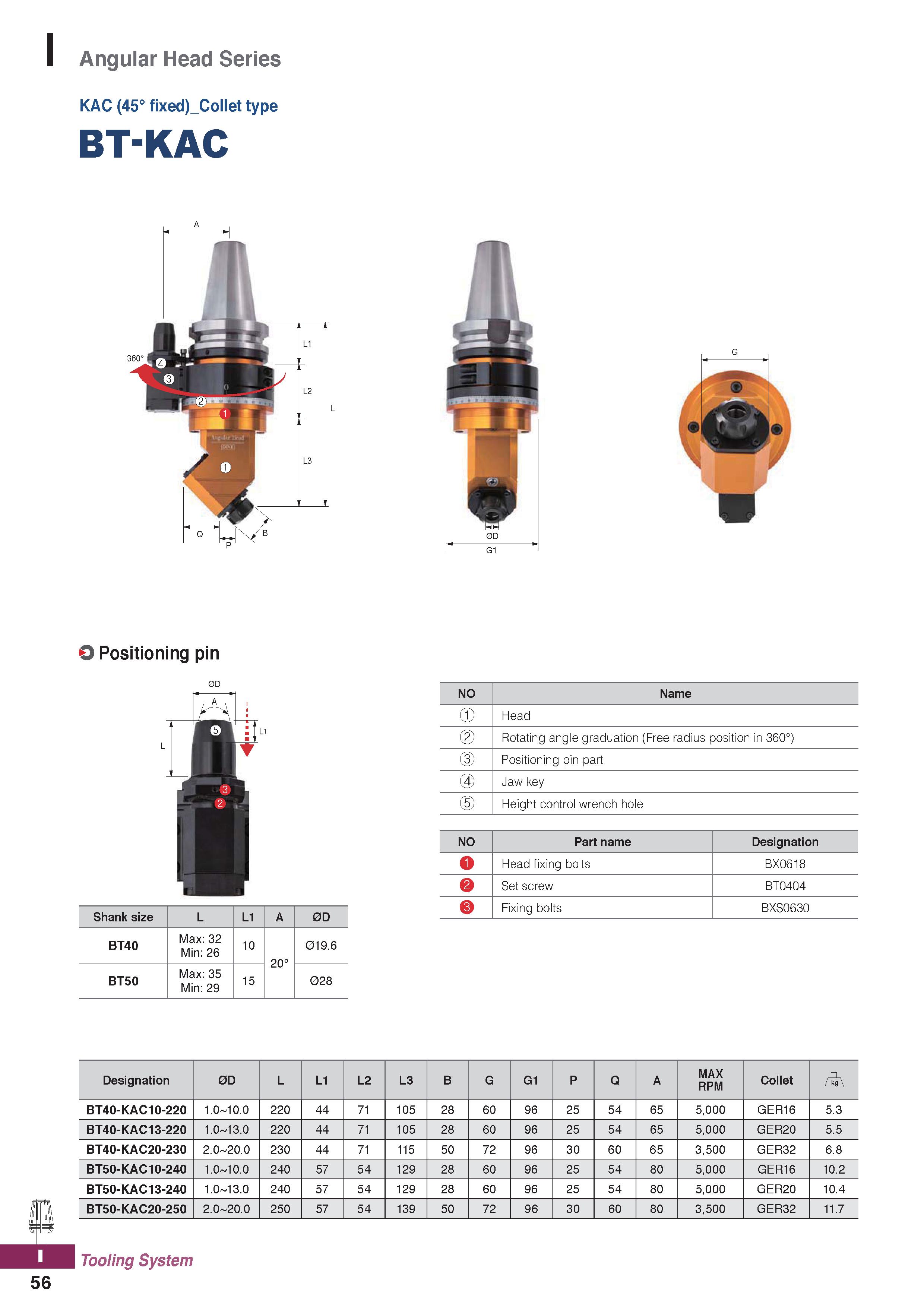

Angular Head Series KAC (45° fixed) Collet type BT-KAC I 0 Positioning pin 0D Shank size L L1 A 0D BT40 Max: 32 Min: 26 10 20° 019.6 BT50 Max: 35 Min: 29 15 028 NO Name Head (I) Rotating angle graduation (Free radius position in 360°) Positioning pin part Jaw key Height control wrench hole NO Part name Designation 0 Head fixing bolts BX0618 I Set screw BT0404 3 Fixing bolts BXS0630 Designation 0D L L1 L2 L3 B G G1 P Q A MAX RPM Collet BT40-KAC10-220 1.0-10.0 220 44 71 105 28 60 96 25 54 65 5,000 GER16 5.3 BT40-KAC13-220 1.0-13.0 220 44 71 105 28 60 96 25 54 65 5,000 GER20 5.5 BT40-KAC20-230 2.0-20.0 230 44 71 115 50 72 96 30 60 65 3,500 GER32 6.8 BT50-KAC10-240 1.0-10.0 240 57 54 129 28 60 96 25 54 80 5,000 GER16 10.2 BT50-KAC13-240 1.0-13.0 240 57 54 129 28 60 96 25 54 80 5,000 GER20 10.4 BT50-KAC20-250 2.0-20.0 250 57 54 139 50 72 96 30 60 80 3,500 GER32 11.7 56 Tooling System
