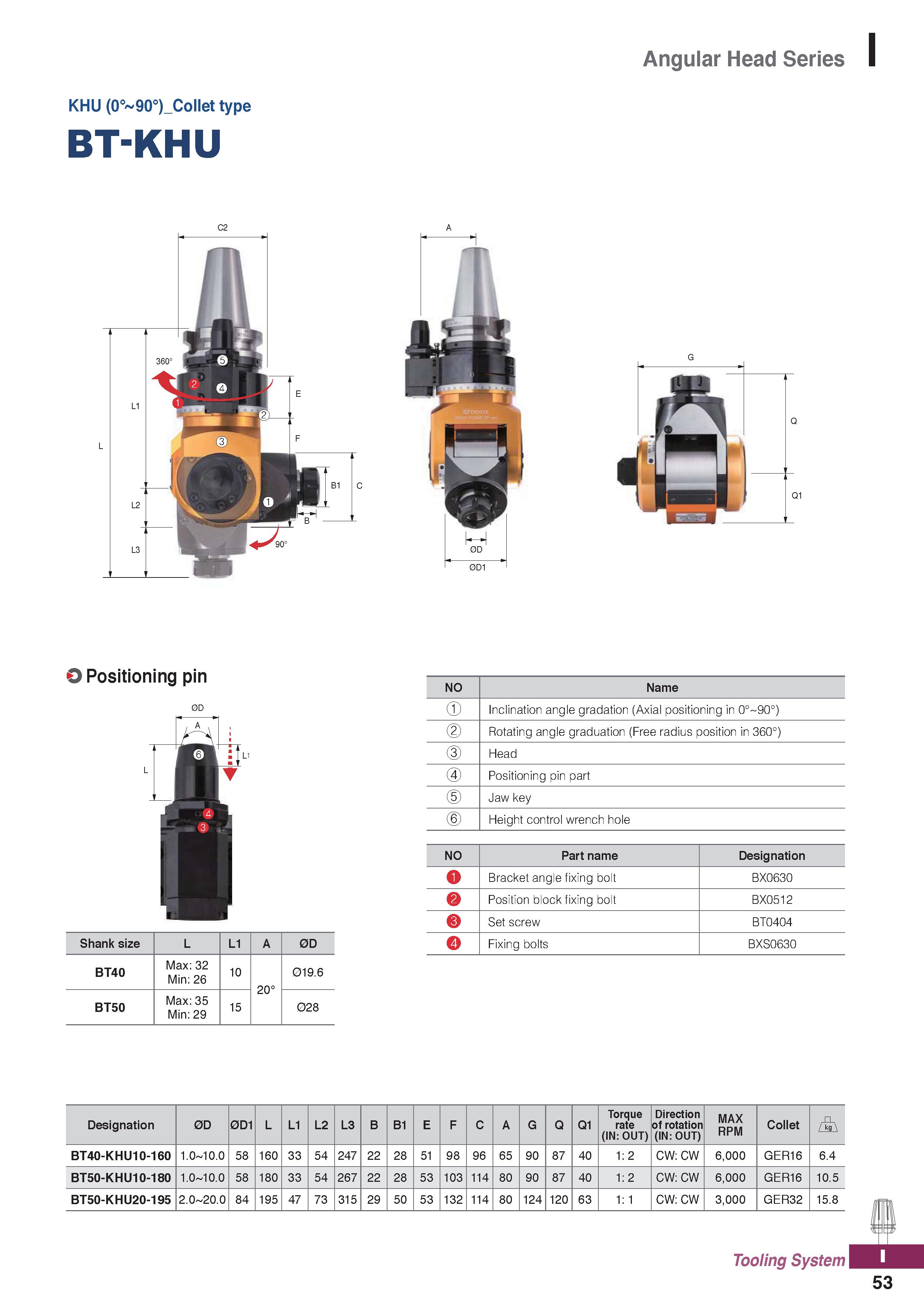

Angular Head Series KHU (0° 90°) Collet type BT-KHU Positioning pin 0D 4 I 3 Shank size L L1 A 0D BT40 Max: 32 Min: 26 10 2O° 019.6 BT50 Max: 35 Min: 29 15 028 NO Name Inclination angle gradation (Axial positioning in 0° 90°) (2 Rotating angle graduation (Free radius position in 360°) (I) Head Positioning pin part Jaw key Height control wrench hole NO Part name Designation 0 Bracket angle fixing bolt BX0630 Position blockfixing bolt BX0512 Set screw BT0404 Fixing bolts BXS0630 Designation 0D 0D1 L L1 L2 L3 B B1 E F C A G Q Q1 Torque rate (IN: OUT) Direction of rotation (IN: OUT) MAX RPM Collet BT40-KHU10-160 1.O-1O.O 58 16O 33 54 247 22 28 51 98 96 65 90 87 40 1:2 CW: CW 6,OOO GER16 6.4 BT50-KHU10-180 1.O-1O.O 58 18O 33 54 267 22 28 53 1O3 114 80 90 87 40 1:2 CW: CW 6,OOO GER16 1O.5 BT50-KHU20-195 2.O-2O.O 84 195 47 73 315 29 50 53 132 114 80 124 12O 63 1: 1 CW: CW 3,OOO GER32 15.8 Tooling System 53
