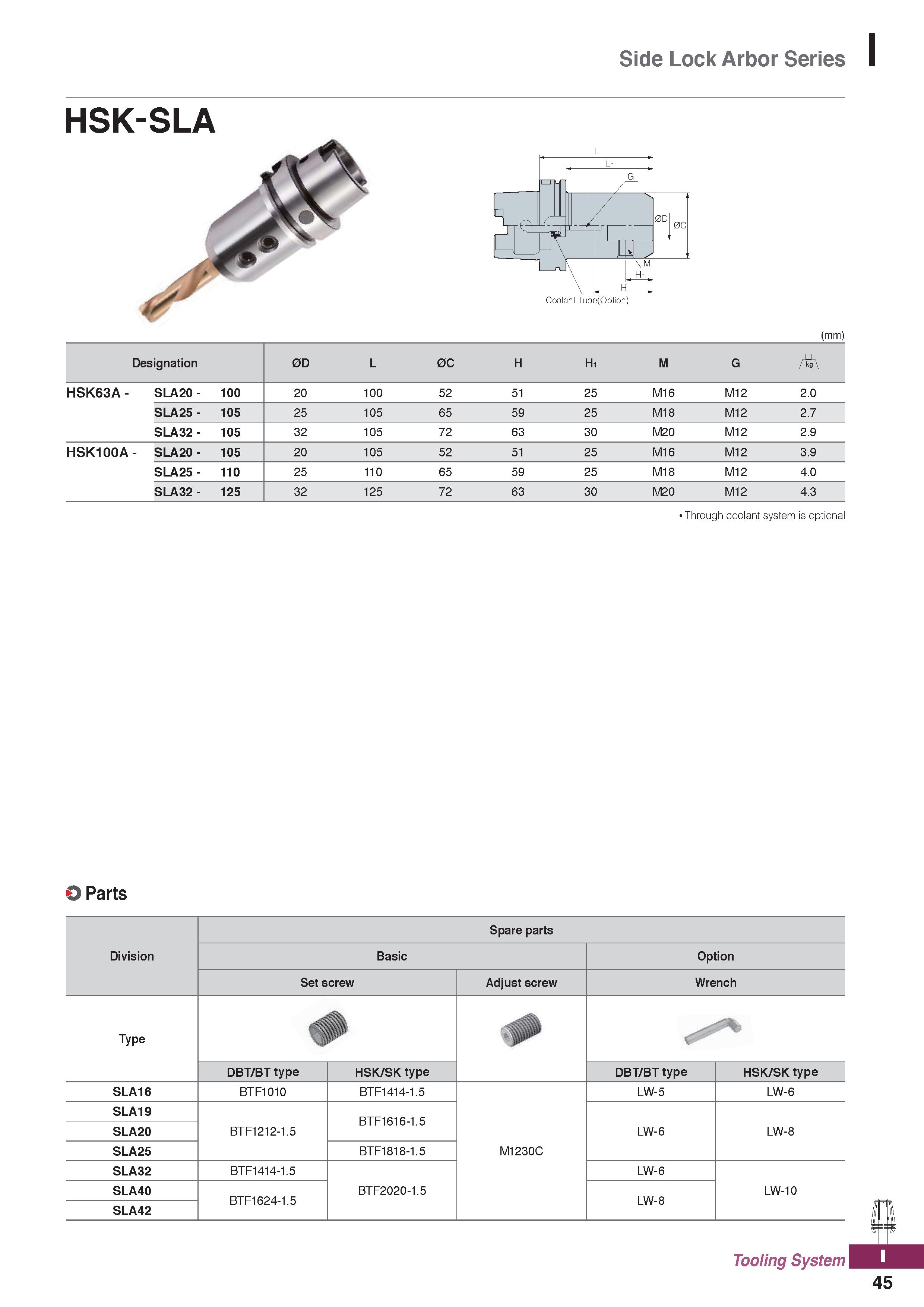

Side Lock Arbor Series HSK-SLA (mm) Designation 0D L 0C H H1 M G HSK63A - SLA20 - 100 20 100 52 51 25 M16 M12 2.0 SLA25 - 105 25 105 65 59 25 M18 M12 2.7 SLA32- 105 32 105 72 63 30 M20 M12 2.9 HSK100A - SLA20 - 105 20 105 52 51 25 M16 M12 3.9 SLA25 - 110 25 110 65 59 25 M18 M12 4.0 SLA32 - 125 32 125 72 63 30 M20 M12 4.3 Through coolant system is optional O Parts Division Spare parts Basic Option Set screw Adjust screw Wrench Type DBT/BT type HSK/SK type DBT/BT type HSK/SK type SLA16 BTF1010 BTF1414-1.5 M1230C LW-5 LW-6 SLA19 BTF1212-1.5 BTF1616-1.5 LW-6 LW-8 SLA20 SLA25 BTF1818-1.5 SLA32 BTF1414-1.5 BTF2020-1.5 LW-6 LW-10 SLA40 BTF1624-1.5 LW-8 SLA42 Tooling System 45
