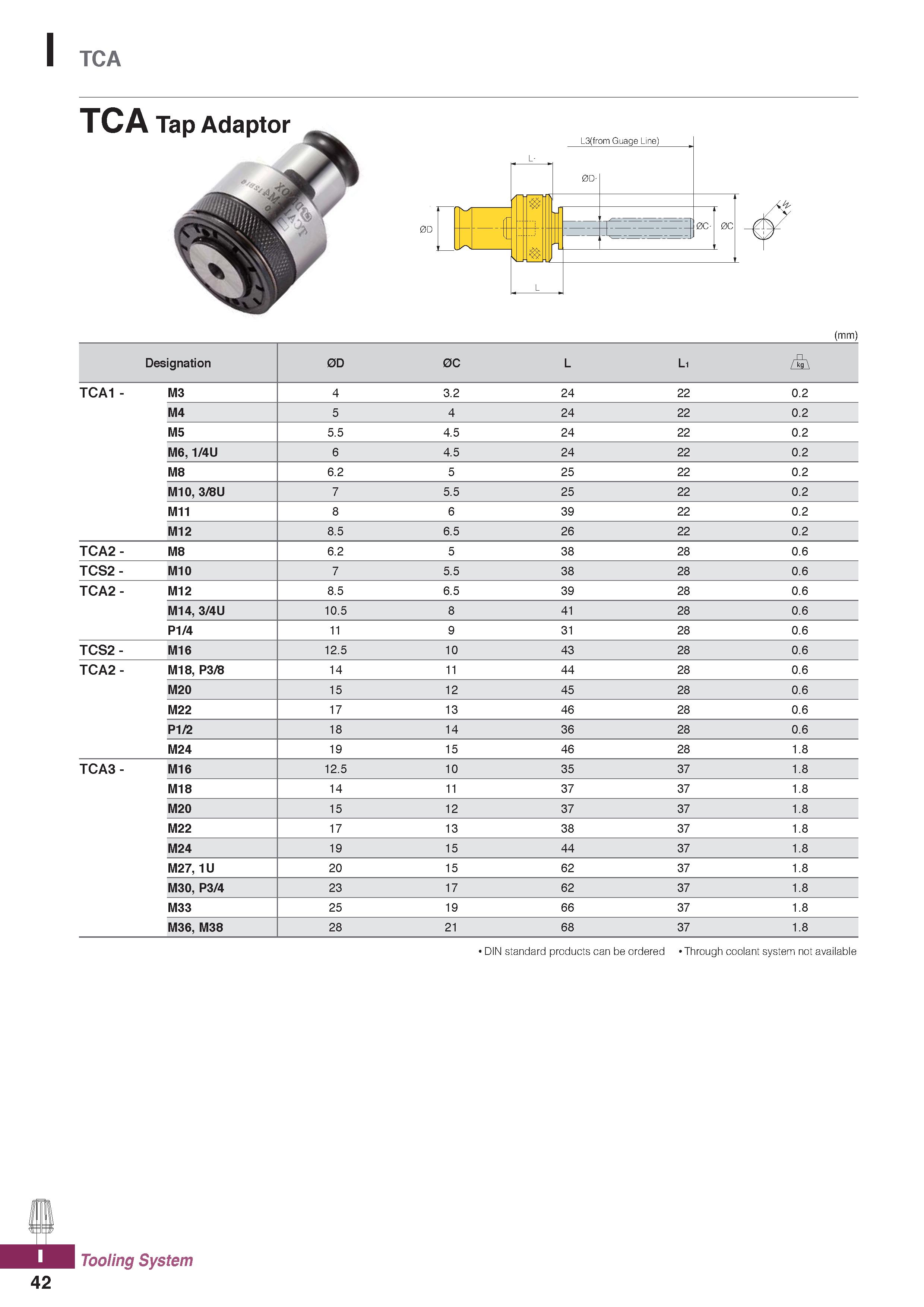

I TCA (mm) Designation 0D 0C L Li TCA1 - M3 4 3.2 24 22 0.2 M4 5 4 24 22 0.2 M5 5.5 4.5 24 22 0.2 M6,1/4U 6 4.5 24 22 0.2 M8 6.2 5 25 22 0.2 M10, 3/8U 7 5.5 25 22 0.2 M11 8 6 39 22 0.2 M12 8.5 6.5 26 22 0.2 TCA2 - M8 6.2 5 38 28 0.6 TCS2 - M10 7 5.5 38 28 0.6 TCA2 - M12 8.5 6.5 39 28 0.6 M14, 3/4U 10.5 8 41 28 0.6 P1/4 11 9 31 28 0.6 TCS2 - M16 12.5 10 43 28 0.6 TCA2 - M18, P3/8 14 11 44 28 0.6 M20 15 12 45 28 0.6 M22 17 13 46 28 0.6 P1/2 18 14 36 28 0.6 M24 19 15 46 28 1.8 TCA3 - M16 12.5 10 35 37 1.8 M18 14 11 37 37 1.8 M20 15 12 37 37 1.8 M22 17 13 38 37 1.8 M24 19 15 44 37 1.8 M27, 1U 20 15 62 37 1.8 M30, P3/4 23 17 62 37 1.8 M33 25 19 66 37 1.8 M36, M38 28 21 68 37 1.8 DIN standard products can be ordered Through coolant system not available Tooling System 42
