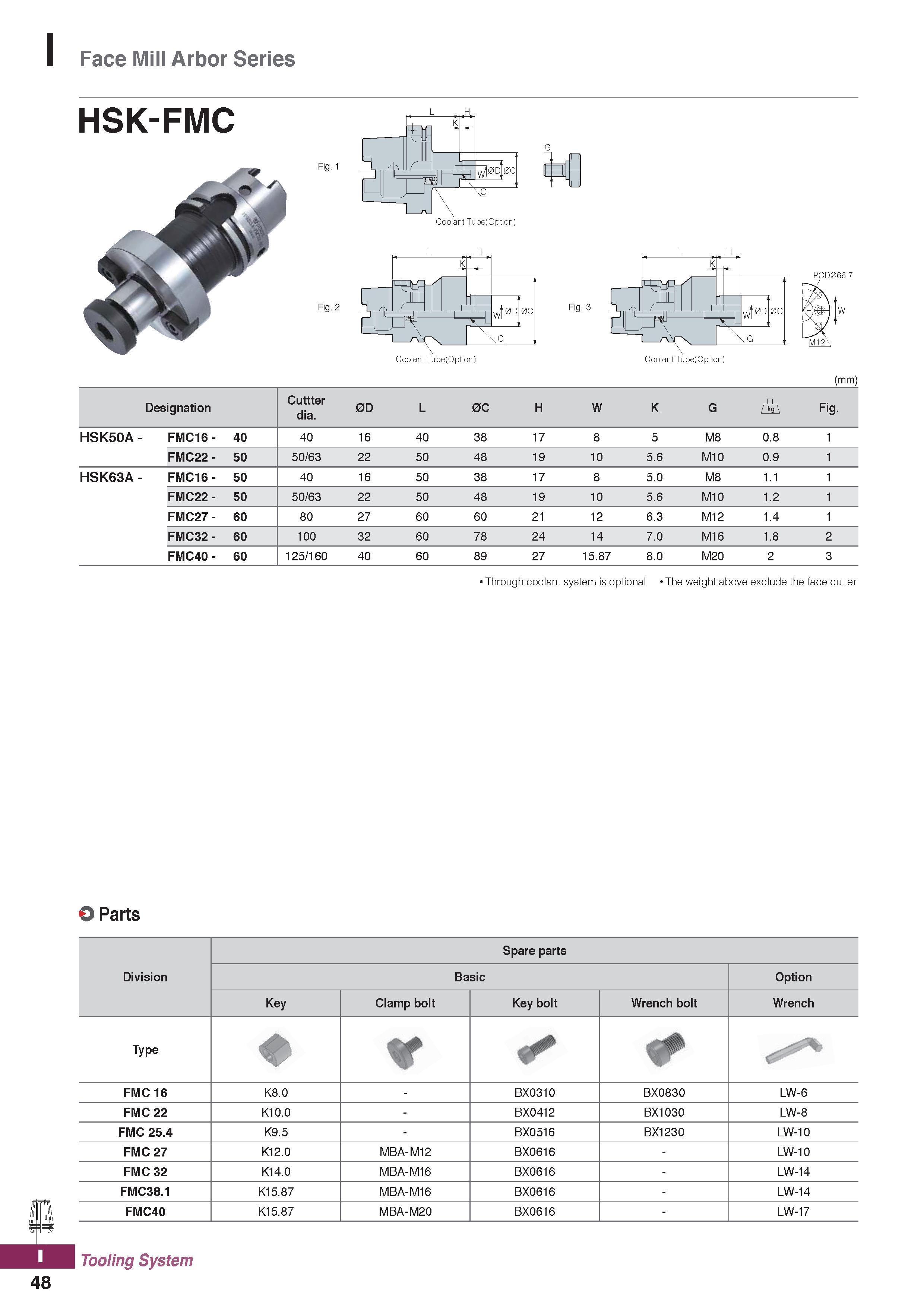

Face Mill Arbor Series HSK-FMC JK. Fig. 1 Fig. 2 Fig. 3 (mm) Designation Cuttter dia. 0D L 0C H W K G Fig. HSK50A - FMC16 - 40 40 16 40 38 17 8 5 M8 0.8 1 FMC22 - 50 50/63 22 50 48 19 10 5.6 M10 0.9 1 HSK63A - FMC16 - 50 40 16 50 38 17 8 5.0 M8 1.1 1 FMC22 - 50 50/63 22 50 48 19 10 5.6 M10 1.2 1 FMC27 - 60 80 27 60 60 21 12 6.3 M12 1.4 1 FMC32 - 60 100 32 60 78 24 14 7.0 M16 1.8 2 FMC40 - 60 125/160 40 60 89 27 15.87 8.0 M20 2 3 Through coolant system is optional The weight above exclude the face cutter W O Parts Division Spare parts Basic Option Key Clamp bolt Key bolt Wrench bolt Wrench Type FMC 16 K8.0 - BX0310 BX0830 LW-6 FMC 22 K10.0 - BX0412 BX1030 LW-8 FMC 25.4 K9.5 - BX0516 BX1230 LW-10 FMC 27 K12.0 MBA-M12 BX0616 - LW-10 FMC 32 K14.0 MBA-M16 BX0616 - LW-14 FMC38.1 K15.87 MBA-M16 BX0616 - LW-14 FMC40 K15.87 MBA-M20 BX0616 - LW-17 1 Tooling System 48
