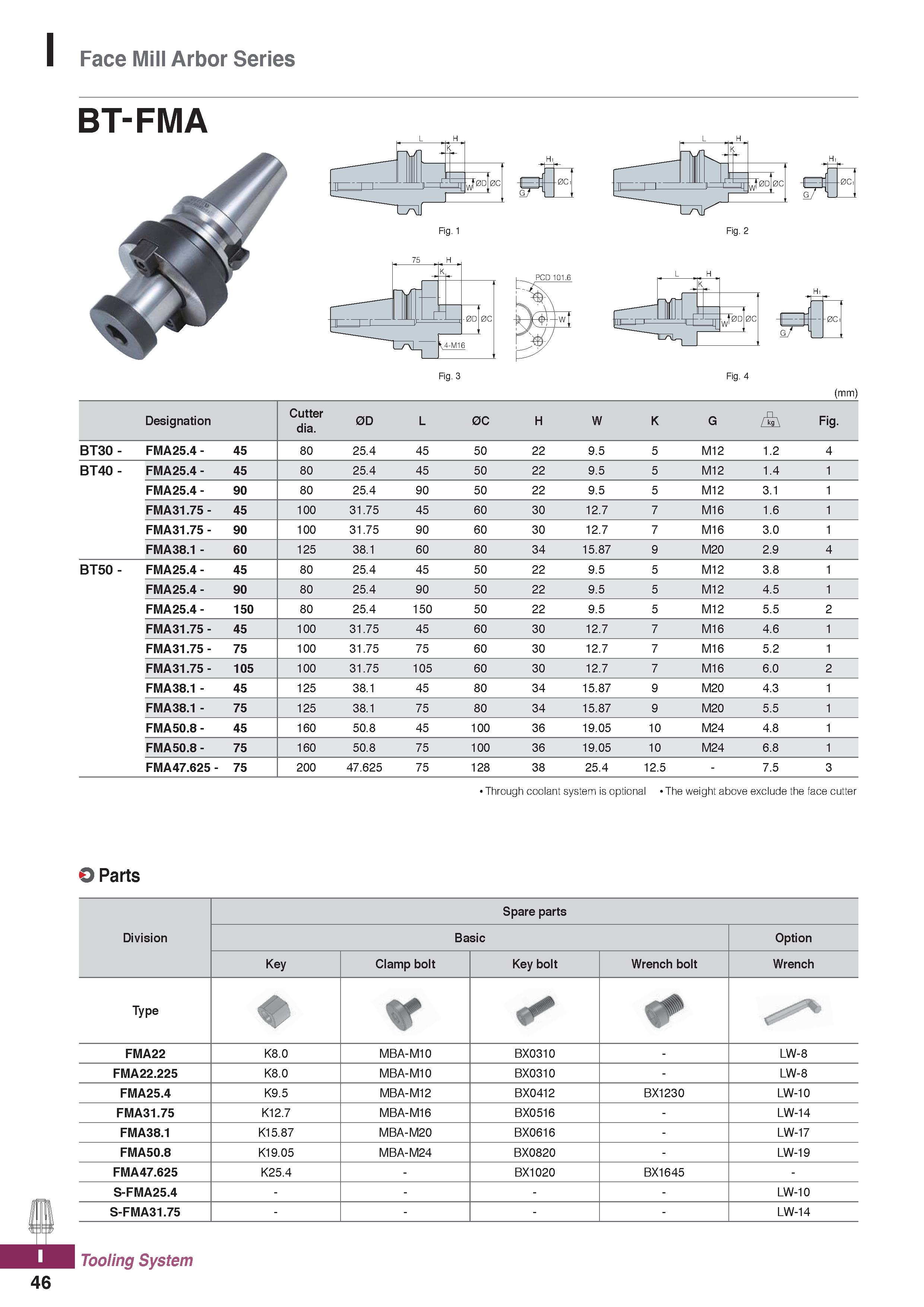

Face Mill Arbor Series BT-FMA Fig. 2 Fig. 3 (mm) Designation Cutter dia. 0D L 0C H W K G Fig. BT30 - FMA25.4 - 45 80 25.4 45 50 22 9.5 5 M12 1.2 4 BT40 - FMA25.4 - 45 80 25.4 45 50 22 9.5 5 M12 1.4 1 FMA25.4 - 90 80 25.4 90 50 22 9.5 5 M12 3.1 1 FMA31.75 - 45 100 31.75 45 60 30 12.7 7 M16 1.6 1 FMA31.75 - 90 100 31.75 90 60 30 12.7 7 M16 3.0 1 FMA38.1 - 60 125 38.1 60 80 34 15.87 9 M20 2.9 BT50 - FMA25.4 - 45 80 25.4 45 50 22 9.5 5 M12 3.8 1 FMA25.4 - 90 80 25.4 90 50 22 9.5 5 M12 4.5 1 FMA25.4 - 150 80 25.4 150 50 22 9.5 5 M12 5.5 FMA31.75 - 45 100 31.75 45 60 30 12.7 7 M16 4.6 1 FMA31.75 - 75 100 31.75 75 60 30 12.7 7 M16 5.2 1 FMA31.75 - 105 100 31.75 105 60 30 12.7 7 M16 6.0 FMA38.1 - 45 125 38.1 45 80 34 15.87 9 M20 4.3 1 FMA38.1 - 75 125 38.1 75 80 34 15.87 9 M20 5.5 1 FMA50.8 - 45 160 50.8 45 100 36 19.05 10 M24 4.8 1 FMA50.8 - 75 160 50.8 75 100 36 19.05 10 M24 6.8 1 FMA47.625 - 75 200 47.625 75 128 38 25.4 12.5 - 7.5 3 Through coolant system is optional The weight above exclude the face cutter O Parts Division Spare parts Basic Option Key Clamp bolt Key bolt Wrench bolt Wrench Type FMA22 K8.0 MBA-M10 BX0310 - LW-8 FMA22.225 K8.0 MBA-M10 BX0310 - LW-8 FMA25.4 K9.5 MBA-M12 BX0412 BX1230 LW-10 FMA31.75 K12.7 MBA-M16 BX0516 - LW-14 FMA38.1 K15.87 MBA-M20 BX0616 - LW-17 FMA50.8 K19.05 MBA-M24 BX0820 - LW-19 FMA47.625 K25.4 - BX1020 BX1645 - S-FMA25.4 LW-10 S-FMA31.75 LW-14 1 Tooling System 46
