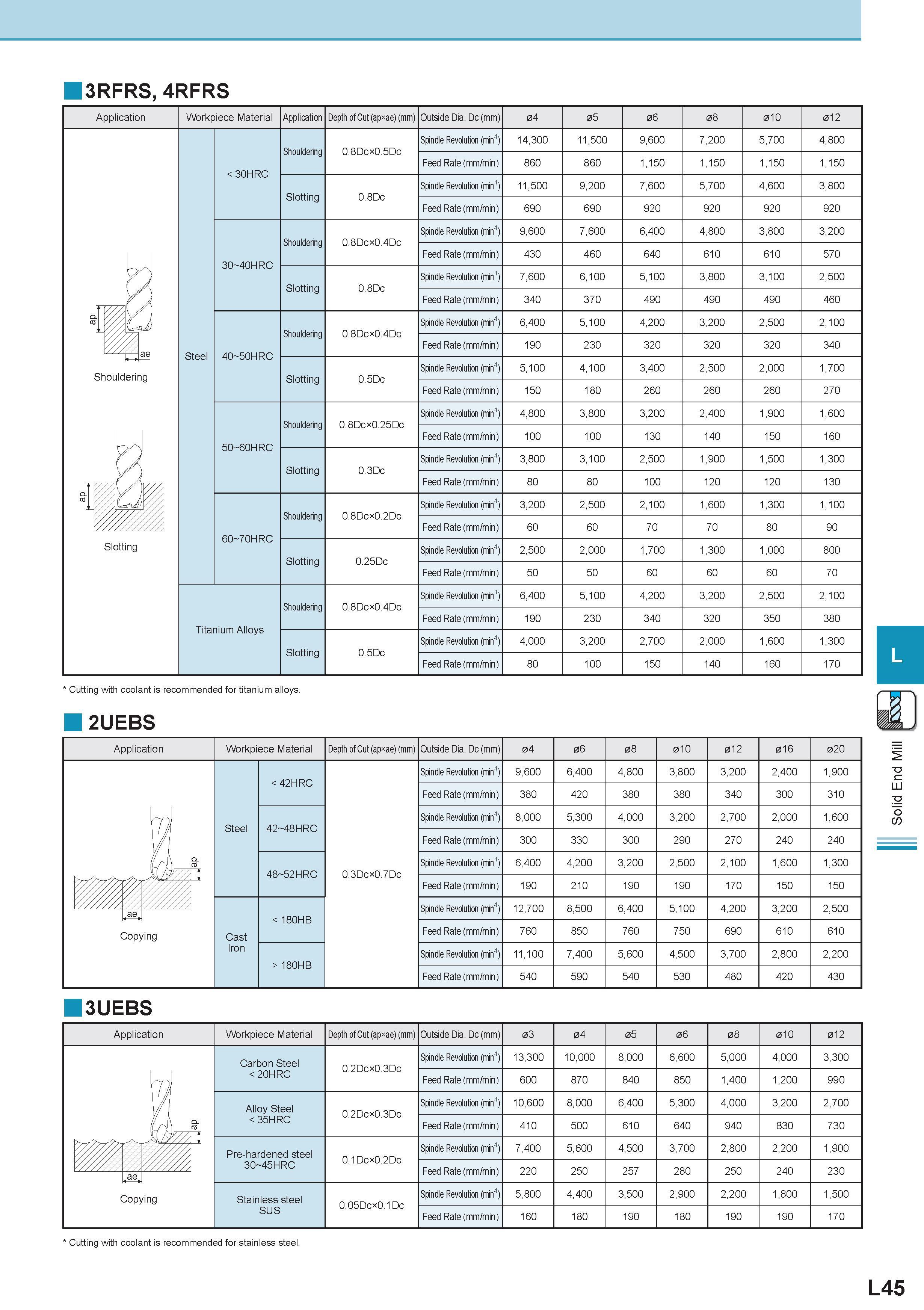

3RFRS, 4RFRS Application Workpiece Material Application Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 04 05 06 08 010 012 Shouldering Slotting Steel Shouldering 0.8Dc 0.5Dc Spindle Revolution (min-1) 14,300 11,500 9,600 7,200 < 30HRC Feed Rate (mm/min) 860 860 1,150 1,150 Slotting 0.8Dc Spindle Revolution (min-1) 11,500 9,200 7,600 5,700 Feed Rate (mm/min) 690 690 920 920 Shouldering 0.8Dc 0.4Dc Spindle Revolution (min-1) 9,600 7,600 6,400 4,800 30 40HRC Feed Rate (mm/min) 430 460 640 610 Slotting 0.8Dc Spindle Revolution (min-1) 7,600 6,100 5,100 3,800 Feed Rate (mm/min) 340 370 490 490 Shouldering 0.8Dc 0.4Dc Spindle Revolution (min-) 6,400 5,100 4,200 3,200 40 50HRC Feed Rate (mm/min) 190 230 320 320 Slotting 0.5Dc Spindle Revolution (min-1) 5,100 4,100 3,400 2,500 Feed Rate (mm/min) 150 180 260 260 Shouldering 0.8Dc 0.25Dc Spindle Revolution (min-1) 4,800 3,800 3,200 2,400 50 60HRC Feed Rate (mm/min) 100 100 130 140 Slotting 0.3Dc Spindle Revolution (min-1) 3,800 3,100 2,500 1,900 Feed Rate (mm/min) 80 80 100 120 Shouldering 0.8Dc 0.2Dc Spindle Revolution (min-) 3,200 2,500 2,100 1,600 60 70HRC Feed Rate (mm/min) 60 60 70 70 Slotting 0.25Dc Spindle Revolution (min-1) 2,500 2,000 1,700 1,300 Feed Rate (mm/min) 50 50 60 60 Shouldering 0.8Dc 0.4Dc Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 Titanium Alloys Feed Rate (mm/min) 190 230 340 320 Slotting 0.5Dc Spindle Revolution (min-1) 4,000 3,200 2,700 2,000 Feed Rate (mm/min) 80 1 00 150 140 5,700 1,150 4,600 920 3,800 610 3,100 490 2,500 320 2,000 260 1,900 150 1,500 120 1,300 80 1,000 60 2,500 350 1,600 160 4,800 1,150 3,800 920 3,200 570 2,500 460 2,100 340 1,700 270 1,600 160 1,300 130 1,100 90 800 70 2,100 380 1,300 170 Cutting with coolant is recommended for titanium alloys. 2UEBS Application Workpiece Material Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 04 06 08 010 012 016 020 Steel < 42HRC 0.3Dc 0.7Dc Spindle Revolution (min-1) 9,600 6,400 4,800 3,800 3,200 2,400 1,900 Feed Rate (mm/min) 380 420 380 380 340 300 310 42 48HRC Spindle Revolution (min-1) 8,000 5,300 4,000 3,200 2,700 2,000 1,600 Feed Rate (mm/min) 300 330 300 290 270 240 240 48 52HRC Spindle Revolution (min-1) 6,400 4,200 3,200 2,500 2,100 1,600 1,300 Feed Rate (mm/min) 190 210 190 190 170 150 150 Cast Iron < 180HB Spindle Revolution (min-1) 12,700 8,500 6,400 5,100 4,200 3,200 2,500 ae Copying Feed Rate (mm/min) 760 850 760 750 690 610 610 > 180HB Spindle Revolution (min-1) 11,100 7,400 5,600 4,500 3,700 2,800 2,200 Feed Rate (mm/min) 540 590 540 530 480 420 430 3UEBS Application Workpiece Material Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 03 04 05 06 08 010 012 Carbon Steel < 20HRC 0.2Dc 0.3Dc Spindle Revolution (min-1) 13,300 10,000 8,000 6,600 5,000 4,000 3,300 Feed Rate (mm/min) 600 870 840 850 1,400 1,200 990 Alloy Steel < 35HRC 0.2Dc 0.3Dc Spindle Revolution (min-1) 10,600 8,000 6,400 5,300 4,000 3,200 2,700 Feed Rate (mm/min) 410 500 610 640 940 830 730 Pre-hardened steel 30 45HRC 0.1Dc 0.2Dc Spindle Revolution (min-1) 7,400 5,600 4,500 3,700 2,800 2,200 1,900 Feed Rate (mm/min) 220 250 257 280 250 240 230 ae Copying Stainless steel SUS 0.05Dc 0.1Dc Spindle Revolution (min-1) 5,800 4,400 3,500 2,900 2,200 1,800 1,500 Feed Rate (mm/min) 160 180 190 180 190 190 170 Cutting with coolant is recommended for stainless steel. L45 Solid End Mill
