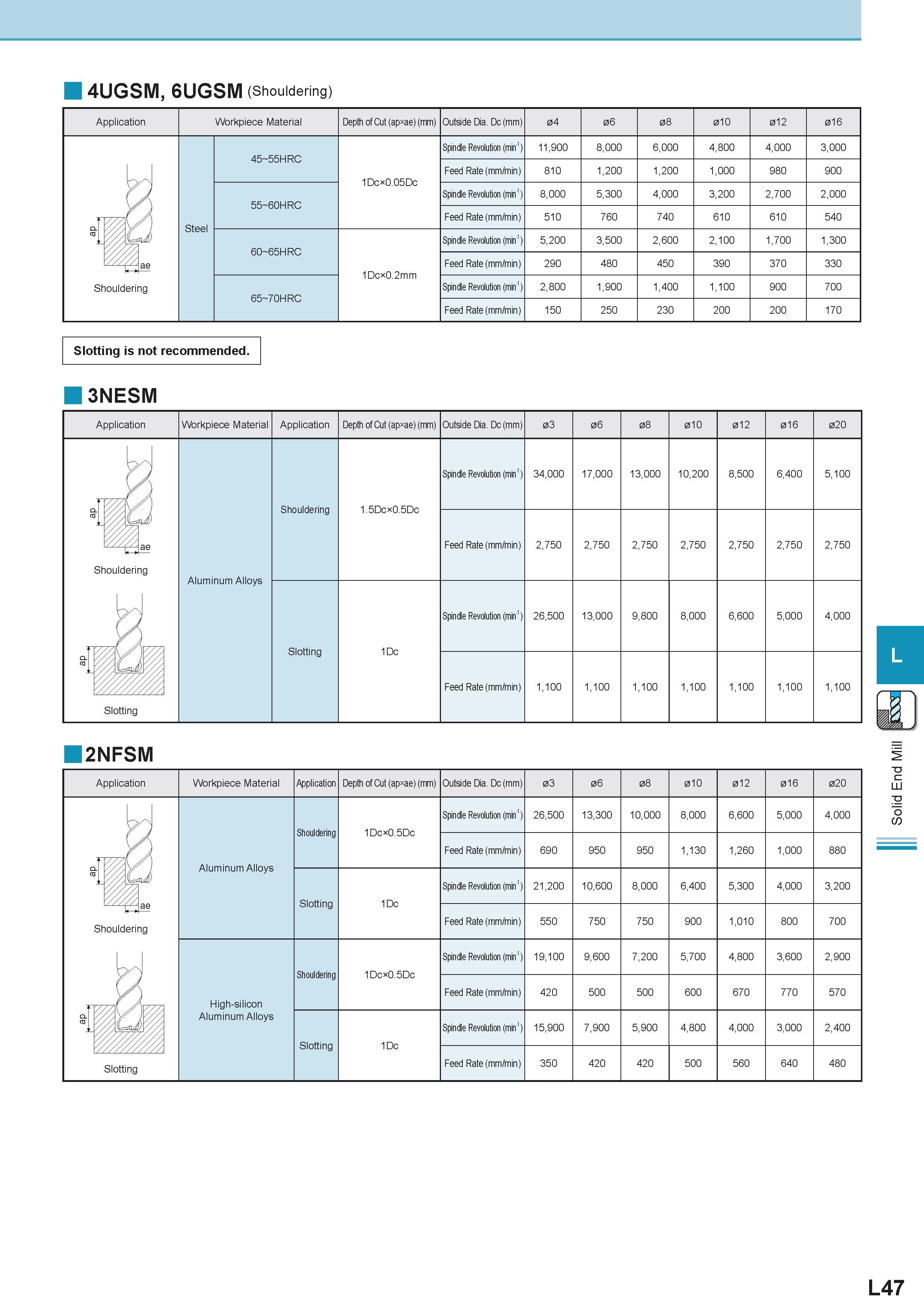

4UGSM, 6UGSM (Shouldering) Application Workpiece Material Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 04 06 08 010 012 016 Steel 45 55HRC 1Dc 0.05Dc Spindle Revolution (min-1) 11,900 8,000 6,000 4,800 4,000 3,000 Feed Rate (mm/min) 810 1,200 1,200 1,000 980 900 55 60HRC Spindle Revolution (min-1) 8,000 5,300 4,000 3,200 2,700 2,000 Feed Rate (mm/min) 510 760 740 610 610 540 4 60 65HRC 1Dc 0.2mm Spindle Revolution (min-1) 5,200 3,500 2,600 2,100 1,700 1,300 Feed Rate (mm/min) 290 480 450 390 370 330 Shouldering 65 70HRC Spindle Revolution (min-1) 2,800 1,900 1,400 1,100 900 700 Feed Rate (mm/min) 150 250 230 200 200 170 Slotting is not recommended. 3NESM Application Workpiece Material Application Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 03 06 08 010 012 0I6 020 Spindle Revolution (min-1) 34,000 17,000 13,000 10,200 8,500 6,400 5,100 Shouldering 1.5Dc 0.5Dc Feed Rate (mm/min) 2,750 2,750 2,750 2,750 2,750 2,750 2,750 Shouldering Aluminum Alloys Spindle Revolution (min-1) 26,500 13,000 9,800 ,000 6,600 5,000 4,000 Slotting 1Dc Feed Rate (mm/min) 1,100 1,100 1,100 1,100 1,100 1,100 1,100 Slotting 2NFSM Application Workpiece Material Application Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 03 06 08 010 012 016 020 Aluminum Alloys Shouldering 1Dc 0.5Dc Spindle Revolution (min-1) 26,500 13,300 10,000 8,000 6,600 5,000 4,000 4 /jM Feed Rate (mm/min) 690 950 950 1,130 1,260 1,000 880 ¥ Slotting 1Dc Spindle Revolution (min-1) 21,200 10,600 8,000 6,400 5,300 4,000 3,200 Shouldering Feed Rate (mm/min) 550 750 750 900 1,010 800 700 High-silicon Aluminum Alloys Shouldering 1Dc 0.5Dc Spindle Revolution (min-1) 19,100 9,600 7,200 5,700 4,800 3,600 2,900 Feed Rate (mm/min) 420 500 500 600 670 770 570 i 1 XJ> Slotting 1Dc Spindle Revolution (min-1) 15,900 7,900 5,900 4,800 4,000 3,000 2,400 Slotting Feed Rate (mm/min) 350 420 420 500 560 640 480 L47 Solid End Mill
