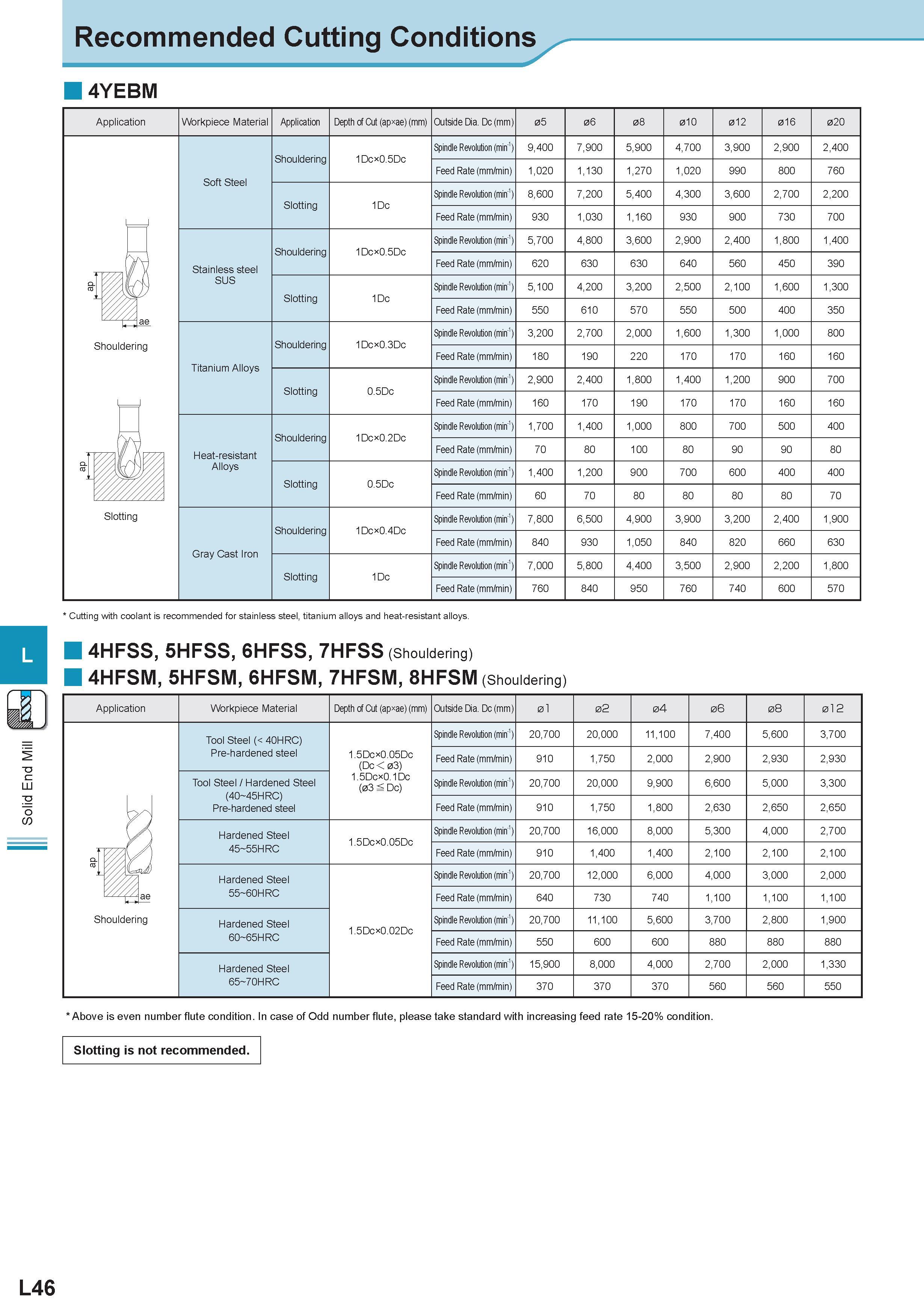

Solid End Mill Recommended Cutting Conditions 4YEBM Application Workpiece Material Application Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 05 06 08 010 012 0I6 020 Shouldering Slotting Shouldering 1Dc 0.5Dc Spindle Revolution (min-1) 9,400 7,900 5,900 4,700 3,900 2,900 Soft Steel Feed Rate (mm/min) 1,020 1,130 1,270 1,020 990 800 Slotting 1Dc Spindle Revolution (min-1) 8,600 7,200 5,400 4,300 3,600 2,700 Feed Rate (mm/min) 930 1,030 1,160 930 900 730 Shouldering 1Dc 0.5Dc Spindle Revolution (min-1) 5,700 4,800 3,600 2,900 2,400 1,800 Stainless steel SUS Feed Rate (mm/min) 620 630 630 640 560 450 Slotting 1Dc Spindle Revolution (min-1) 5,100 4,200 3,200 2,500 2,100 1,600 Feed Rate (mm/min) 550 610 570 550 500 400 Shouldering 1Dc 0.3Dc Spindle Revolution (min-1) 3,200 2,700 2,000 1,600 1,300 1,000 Titanium Alloys Feed Rate (mm/min) 180 190 220 170 170 160 Slotting 0.5Dc Spindle Revolution (min-1) 2,900 2,400 1,800 1,400 1,200 900 Feed Rate (mm/min) 160 170 190 170 170 160 Shouldering 1Dc 0.2Dc Spindle Revolution (min-1) 1,700 1,400 1,000 800 700 500 Heat-resistant Alloys Feed Rate (mm/min) 70 80 100 80 90 90 Slotting 0.5Dc Spindle Revolution (min-1) 1,400 1,200 900 700 600 400 Feed Rate (mm/min) 60 70 80 80 80 80 Shouldering 1Dc 0.4Dc Spindle Revolution (min-1) 7,800 6,500 4,900 3,900 3,200 2,400 Gray Cast Iron Feed Rate (mm/min) 840 930 1,050 840 820 660 Slotting 1Dc Spindle Revolution (min-) 7,000 5,800 4,400 3,500 2,900 2,200 Feed Rate (mm/min) 760 840 950 760 740 600 2,400 760 2,200 700 1,400 390 1,300 350 800 160 700 160 400 80 400 70 1,900 630 1,800 570 Cutting with coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. 4HFSS, 5HFSS, 6HFSS, 7HFSS (Shouldering) 4HFSM, 5HFSM, 6HFSM, 7HFSM, 8HFSM (Shouldering) s \ Application Workpiece Material Depth of Cut (ap ae) (mm) Outside Dia. Dc (mm) 01 02 04 06 08 012 M Tool Steel (< 40HRC) Pre-hardened steel 1.5Dc 0.05Dc (Dc < 03) 1.5Dc 0.1Dc (03 Dc) Spindle Revolution (min-1) 20,700 20,000 11,100 7,400 5,600 3,700 Feed Rate (mm/min) 910 1,750 2,000 2,900 2,930 2,930 Tool Steel Hardened Steel (40 45HRC) Pre-hardened steel Spindle Revolution (min-1) 20,700 20,000 9,900 6,600 5,000 3,300 Feed Rate (mm/min) 910 1,750 1,800 2,630 2,650 2,650 Hardened Steel 45 55HRC 1.5Dc 0.05Dc Spindle Revolution (min-1) 20,700 16,000 8,000 5,300 4,000 2,700 i Feed Rate (mm/min) 910 1,400 1,400 2,100 2,100 2,100 Hardened Steel 55 60HRC 1.5DcxQ.Q2Dc Spindle Revolution (min-1) 20,700 12,000 6,000 4,000 3,000 2,000 Feed Rate (mm/min) 640 730 740 1,100 1,100 1,100 Shouldering Hardened Steel 60 65HRC Spindle Revolution (min-1) 20,700 11,100 5,600 3,700 2,800 1,900 Feed Rate (mm/min) 550 600 600 880 880 880 Hardened Steel 65 70HRC Spindle Revolution (min-1) 15,900 8,000 4,000 2,700 2,000 1,330 Feed Rate (mm/min) 370 370 370 560 560 550 Above is even number flute condition. In case of Odd number flute, please take standard with increasing feed rate 15-20% condition. Slotting is not recommended. L46
