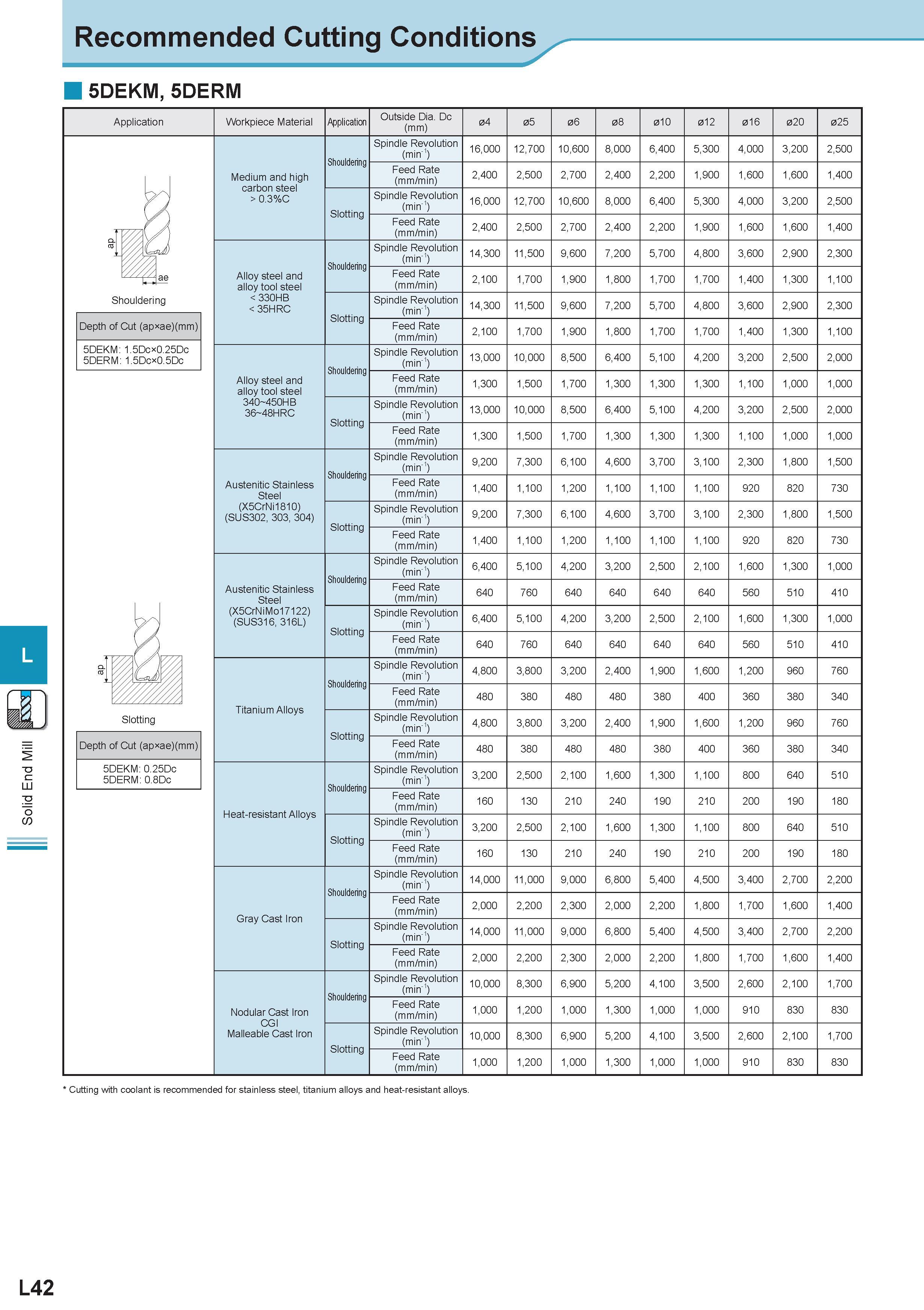

Solid End Mill Recommended Cutting Conditions 5DEKM, 5DERM Application Workpiece Material Application Outside Dia. Dc (mm) 04 05 06 08 010 012 016 020 025 Medium and high carbon steel > 0.3%C Shouldering Spindle Revolution (min-1) 16,000 12,700 10,600 8,000 6,400 5,300 4,000 3,200 2,500 Feed Rate (mm/min) 2,400 2,500 2,700 2,400 2,200 1,900 1,600 1,600 1,400 Slotting Spindle Revolution (min-1) 16,000 12,700 10,600 8,000 6,400 5,300 4,000 3,200 2,500 Feed Rate (mm/min) 2,400 2,500 2,700 2,400 2,200 1,900 1,600 1,600 1,400 1 ae Alloy steel and alloy tool steel < 330HB < 35HRC Shouldering Spindle Revolution (min-1) 14,300 11,500 9,600 7,200 5,700 4,800 3,600 2,900 2,300 Feed Rate (mm/min) 2,100 1,700 1,900 1,800 1,700 1,700 1,400 1,300 1,100 Shouldering Slotting Spindle Revolution (min-1) 14,300 11,500 9,600 7,200 5,700 4,800 3,600 2,900 2,300 Depth of Cut (ap ae)(mm) Feed Rate (mm/min) 2,100 1,700 1,900 1,800 1,700 1,700 1,400 1,300 1,100 5DEKM: 1.5Dc 0.25Dc 5DERM: 1.5Dcx0.5Dc Alloy steel and alloy tool steel 340 450HB 36 48HRC Shouldering Spindle Revolution (min-1) 13,000 10,000 8,500 6,400 5,100 4,200 3,200 2,500 2,000 Feed Rate (mm/min) 1,300 1,500 1,700 1,300 1,300 1,300 1,100 1,000 1,000 Slotting Spindle Revolution (min-1) 13,000 10,000 8,500 6,400 5,100 4,200 3,200 2,500 2,000 Feed Rate (mm/min) 1,300 1,500 1,700 1,300 1,300 1,300 1,100 1,000 1,000 Austenitic Stainless Steel (X5CrNi1810) (SUS302, 303, 304) Shouldering Spindle Revolution (min-1) 9,200 7,300 6,100 4,600 3,700 3,100 2,300 1,800 1,500 Feed Rate (mm/min) 1,400 1,100 1,200 1,100 1,100 1,100 920 820 730 Slotting Spindle Revolution (min-1) 9,200 7,300 6,100 4,600 3,700 3,100 2,300 1,800 1,500 Feed Rate (mm/min) 1,400 1,100 1,200 1,100 1,100 1,100 920 820 730 Austenitic Stainless Steel (X5CrNiMo17122) (SUS316, 316L) Shouldering Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 2,500 2,100 1,600 1,300 1,000 Feed Rate (mm/min) 640 760 640 640 640 640 560 510 410 Slotting Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 2,500 2,100 1,600 1,300 1,000 Feed Rate (mm/min) 640 760 640 640 640 640 560 510 410 sj Titanium Alloys Shouldering Spindle Revolution (min-1) 4,800 3,800 3,200 2,400 1,900 1,600 1,200 960 760 Feed Rate (mm/min) 480 380 480 480 380 400 360 380 340 Slotting Slotting Spindle Revolution (min-1) 4,800 3,800 3,200 2,400 1,900 1,600 1,200 960 760 Depth of Cut (ap ae)(mm) Feed Rate (mm/min) 480 380 480 480 380 400 360 380 340 5DEKM: 0.25Dc 5DERM: 0.8Dc Heat-resistant Alloys Shouldering Spindle Revolution (min-1) 3,200 2,500 2,100 1,600 1,300 1,100 800 640 510 Feed Rate (mm/min) 160 130 210 240 190 210 200 190 180 Slotting Spindle Revolution (min-1) 3,200 2,500 2,100 1,600 1,300 1,100 800 640 510 Feed Rate (mm/min) 160 130 210 240 190 210 200 190 180 Gray Cast Iron Shouldering Spindle Revolution (min-1) 14,000 11,000 9,000 6,800 5,400 4,500 3,400 2,700 2,200 Feed Rate (mm/min) 2,000 2,200 2,300 2,000 2,200 1,800 1,700 1,600 1,400 Slotting Spindle Revolution (min-1) 14,000 11,000 9,000 6,800 5,400 4,500 3,400 2,700 2,200 Feed Rate (mm/min) 2,000 2,200 2,300 2,000 2,200 1,800 1,700 1,600 1,400 Nodular Cast Iron CGI Malleable Cast Iron Shouldering Spindle Revolution (min-1) 10,000 8,300 6,900 5,200 4,100 3,500 2,600 2,100 1,700 Feed Rate (mm/min) 1,000 1,200 1,000 1,300 1,000 1,000 910 830 830 Slotting Spindle Revolution (min-1) 10,000 8,300 6,900 5,200 4,100 3,500 2,600 2,100 1,700 Feed Rate (mm/min) 1,000 1,200 1,000 1,300 1,000 1,000 910 830 830 Cutting with coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. L42
