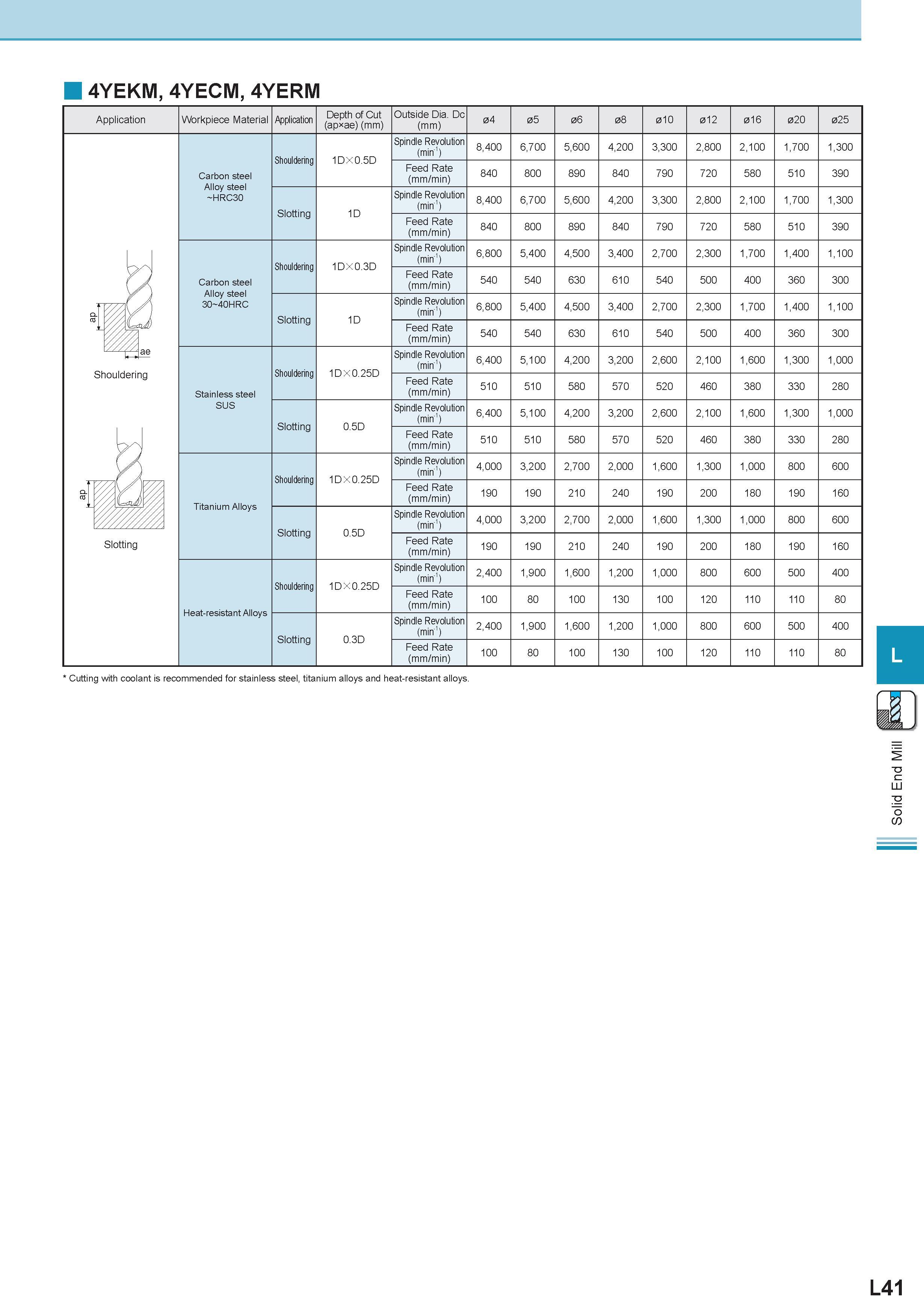

4YEKM, 4YECM, 4YERM Application Workpiece Material Application Depth of Cut (apxae) (mm) Outside Dia. Dc (mm) 04 05 06 08 010 012 016 020 025 Carbon steel Alloy steel HRC30 Shouldering 1DX0.5D Spindle Revolution (min-1) 8,400 6,700 5,600 4,200 3,300 2,800 2,100 1,700 1,300 Feed Rate (mm/min) 840 800 890 840 790 720 580 510 390 Slotting 1D Spindle Revolution (min-1) 8,400 6,700 5,600 4,200 3,300 2,800 2,100 1,700 1,300 Feed Rate (mm/min) 840 800 890 840 790 720 580 510 390 Carbon steel Alloy steel 30 40HRC Shouldering 1DX0.3D Spindle Revolution (min-1) 6,800 5,400 4,500 3,400 2,700 2,300 1,700 1,400 1,100 Feed Rate (mm/min) 540 540 630 610 540 500 400 360 300 c Slotting 1D Spindle Revolution (min-1) 6,800 5,400 4,500 3,400 2,700 2,300 1,700 1,400 1,100 - ae Feed Rate (mm/min) 540 540 630 610 540 500 400 360 300 Stainless steel SUS Shouldering 1DX0.25D Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 2,600 2,100 1,600 1,300 1,000 g in er ld ul o h S Feed Rate (mm/min) 510 510 580 570 520 460 380 330 280 Slotting 0.5D Spindle Revolution (min-1) 6,400 5,100 4,200 3,200 2,600 2,100 1,600 1,300 1,000 Feed Rate (mm/min) 510 510 580 570 520 460 380 330 280 Titanium Alloys Shouldering 1DX0.25D Spindle Revolution (min-1) 4,000 3,200 2,700 2,000 1,600 1,300 1,000 800 600 i Feed Rate (mm/min) 190 190 210 240 190 200 180 190 160 Slotting 0.5D Spindle Revolution (min-1) 4,000 3,200 2,700 2,000 1,600 1,300 1,000 800 600 Slotting Feed Rate (mm/min) 190 190 210 240 190 200 180 190 160 Shouldering 1DX0.25D Spindle Revolution (min-1) 2,400 1,900 1,600 1,200 1,000 800 600 500 400 Feed Rate (mm/min) 100 80 100 130 100 120 110 110 80 Heat-resistant Alloys Slotting 0.3D Spindle Revolution (min-1) 2,400 1,900 1,600 1,200 1,000 800 600 500 400 Feed Rate (mm/min) 100 80 100 130 100 120 110 110 80 Cutting with coolant is recommended for stainless steel, titanium alloys and heat-resistant alloys. L41 Solid End Mill
