1020 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.J30

Каталог WIDIA 2011 Инструментальная оснастка Стр. J30 1020 ENG Lab2u

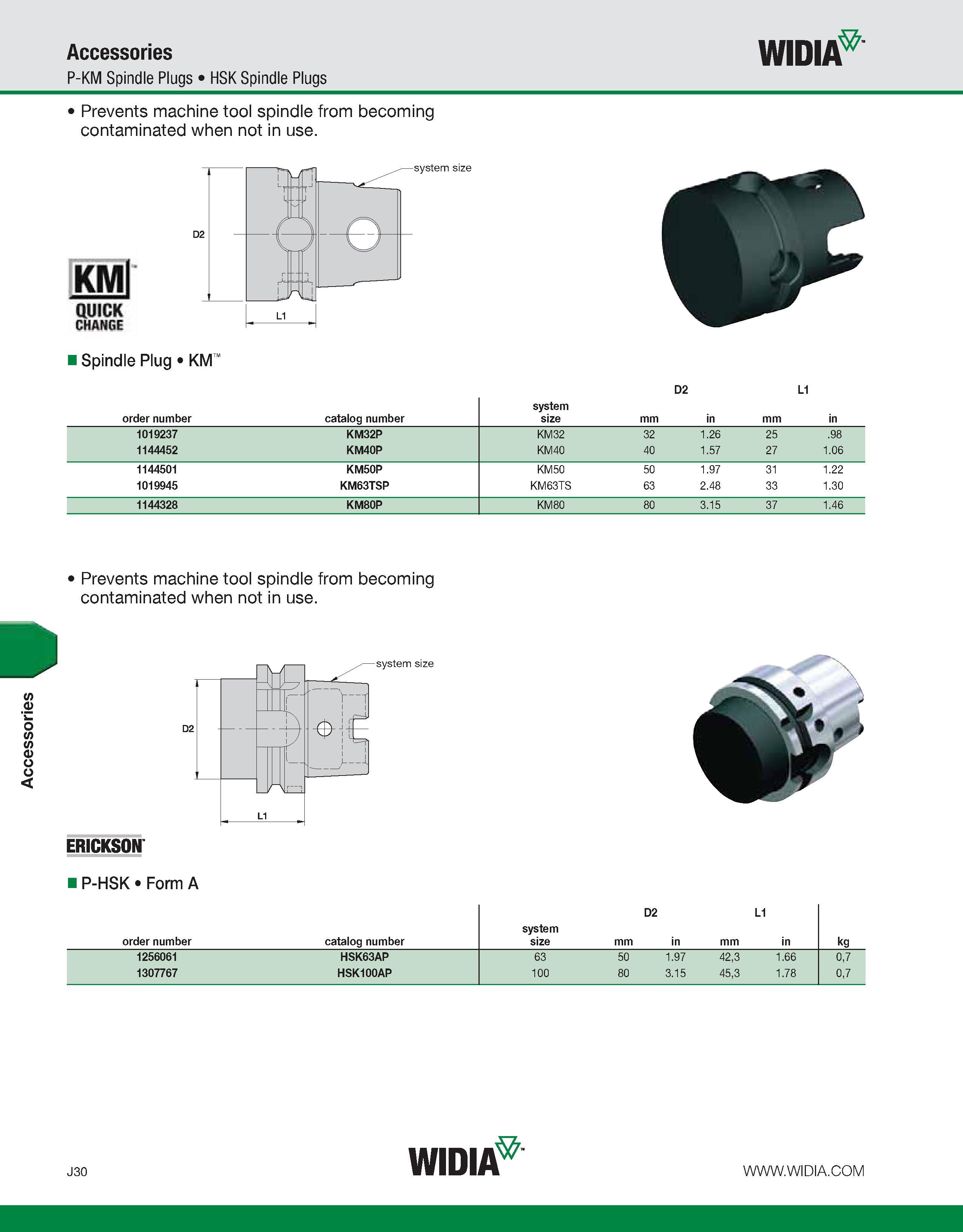

Accessories Accessories P-KM Spindle Plugs HSK Spindle Plugs WIDIA Prevents machine tool spindle from becoming contaminated when not in use. KMl dUICK CHANGE I Spindle Plug KM D2 L1 order number catalog number system size mm in mm in 1019237 KM32P KM32 32 1.26 25 .98 1144452 KM40P KM40 40 1.57 27 1.06 1144501 KM50P KM50 50 1.97 31 1.22 1019945 KM63TSP KM63TS 63 2.48 33 1.30 1144328 KM80P KM80 80 3.15 37 1.46 Prevents machine tool spindle from becoming contaminated when not in use. ERICKSON P-HSK Form A order number catalog number system size mm D2 in mm L1 in kg 1256061 HSK63AP 63 50 1.97 42,3 1.66 0,7 1307767 HSK100AP 100 80 3.15 45,3 1.78 0,7 J30 WIDIA
