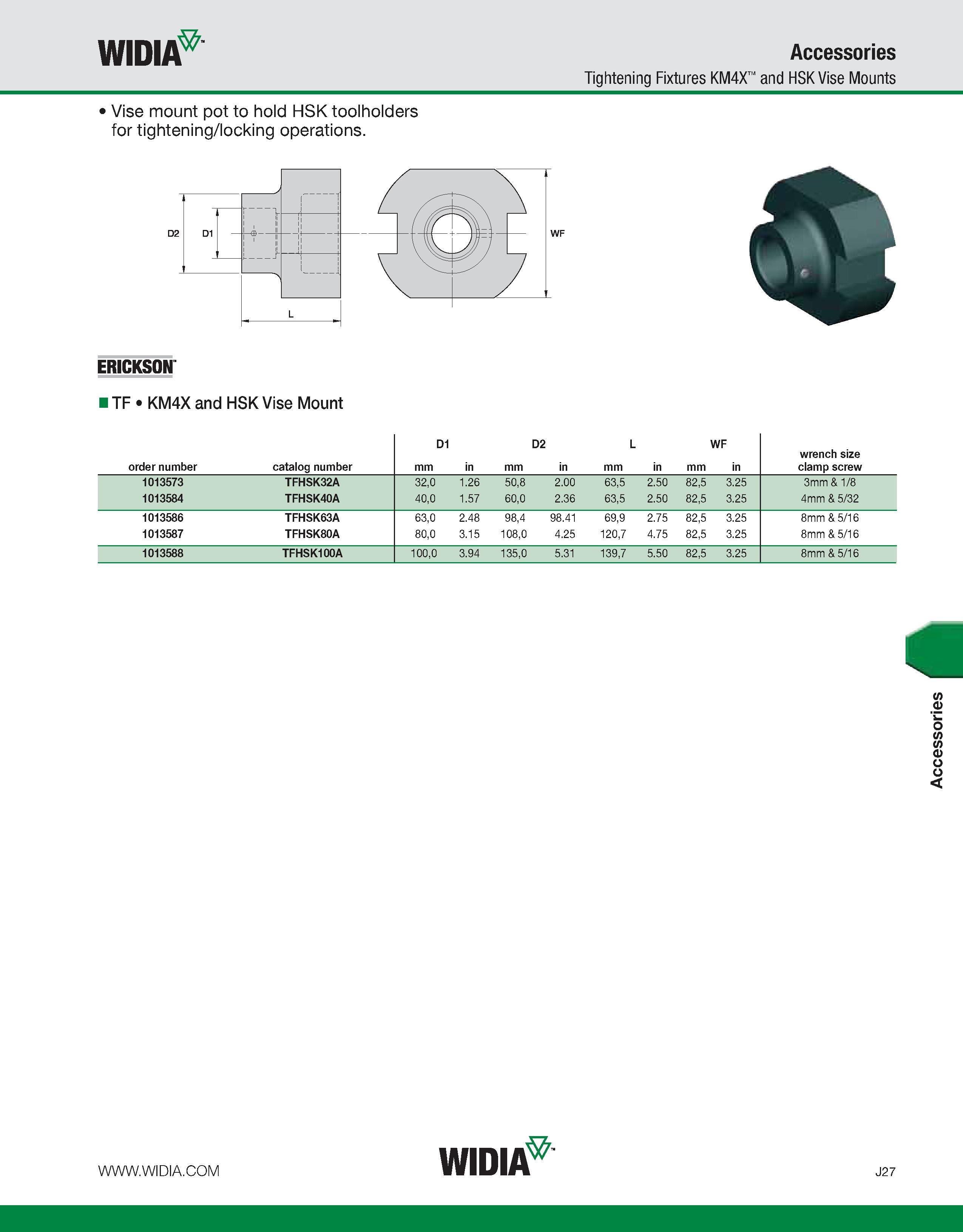

WIDIA Accessories Tightening Fixtures KM4X and HSK Vise Mounts Vise mount pot to hold HSK toolholders for tightening/locking operations. ERICKSON i TF KM4X and HSK Vise Mount order number catalog number D1 mm in mm D2 in L mm in mm WF in wrench size clamp screw 1013573 TFHSK32A 32,0 1.26 50,8 2.00 63,5 2.50 82,5 3.25 3mm & 1/8 1013584 TFHSK40A 40,0 1.57 60,0 2.36 63,5 2.50 82,5 3.25 4mm & 5/32 1013586 TFHSK63A 63,0 2.48 98,4 98.41 69,9 2.75 82,5 3.25 8mm & 5/16 1013587 TFHSK80A 80,0 3.15 108,0 4.25 120,7 4.75 82,5 3.25 8mm & 5/16 1013588 TFHSK100A 100,0 3.94 135,0 5.31 139,7 5.50 82,5 3.25 8mm & 5/16 WIDIA J27 Accessories
