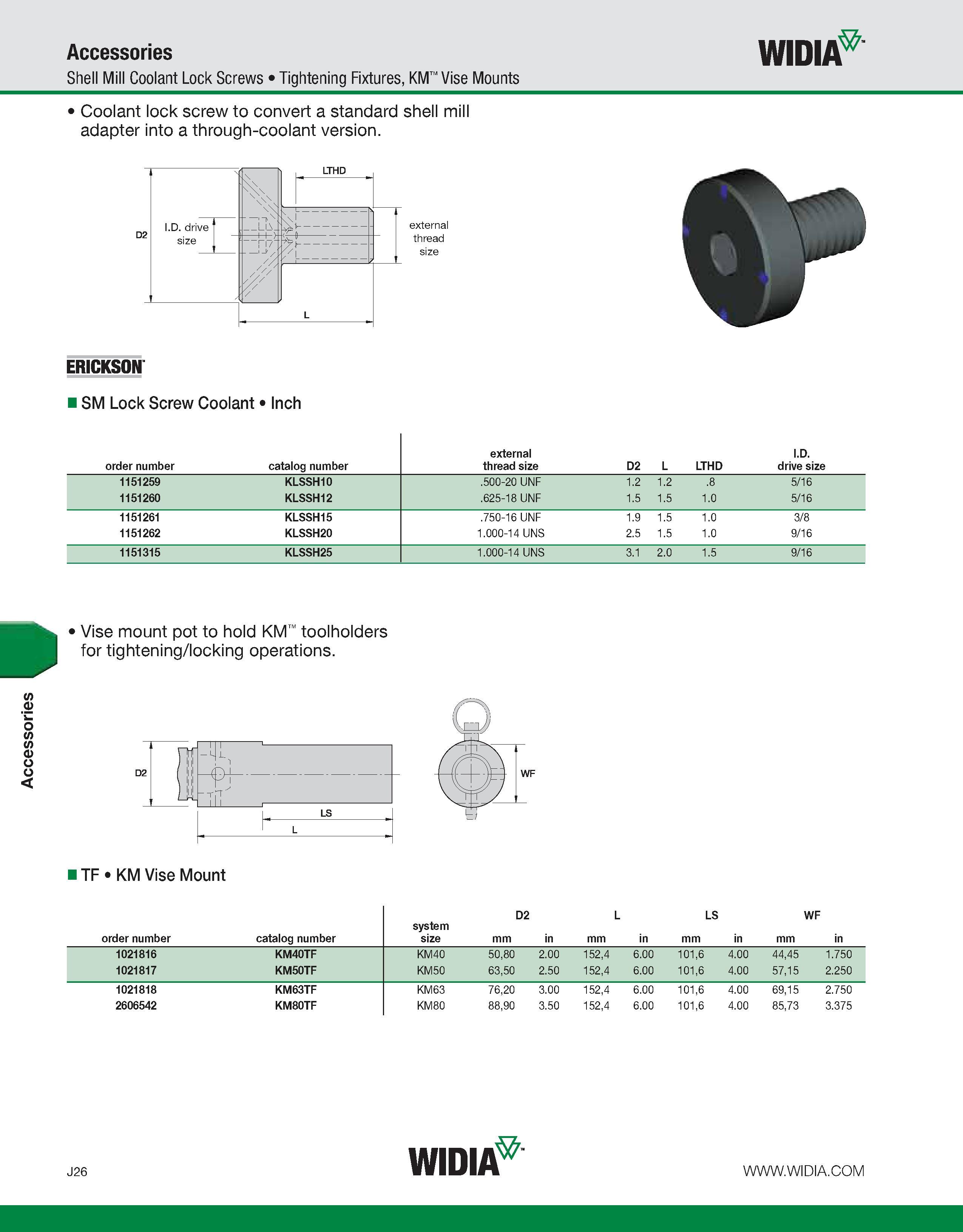

Accessories Accessories WIDIA Shell Mill Coolant Lock Screws Tightening Fixtures, KM Vise Mounts Coolant lock screw to convert a standard shell mill adapter into a through-coolant version. fit' ERICKSON SM Lock Screw Coolant Inch order number catalog number external thread size D2 L LTHD I.D. drive size 1151259 KLSSH10 .500-20 UNF 1.2 1.2 .8 5/16 1151260 KLSSH12 .625-18 UNF 1.5 1.5 1.0 5/16 1151261 KLSSH15 .750-16 UNF 1.9 1.5 1.0 3/8 1151262 KLSSH20 1.000-14 UNS 2.5 1.5 1.0 9/16 1151315 KLSSH25 1.000-14 UNS 3.1 2.0 1.5 9/16 Vise mount pot to hold KM toolholders for tightening/locking operations. is LS TF KM Vise Mount order number catalog number system size D2 mm in L mm in LS mm in mm WF in 1021816 KM40TF KM40 50,80 2.00 152,4 6.00 101,6 4.00 44,45 1.750 1021817 KM50TF KM50 63,50 2.50 152,4 6.00 101,6 4.00 57,15 2.250 1021818 KM63TF KM63 76,20 3.00 152,4 6.00 101,6 4.00 69,15 2.750 2606542 KM80TF KM80 88,90 3.50 152,4 6.00 101,6 4.00 85,73 3.375 J26 WIDIA
