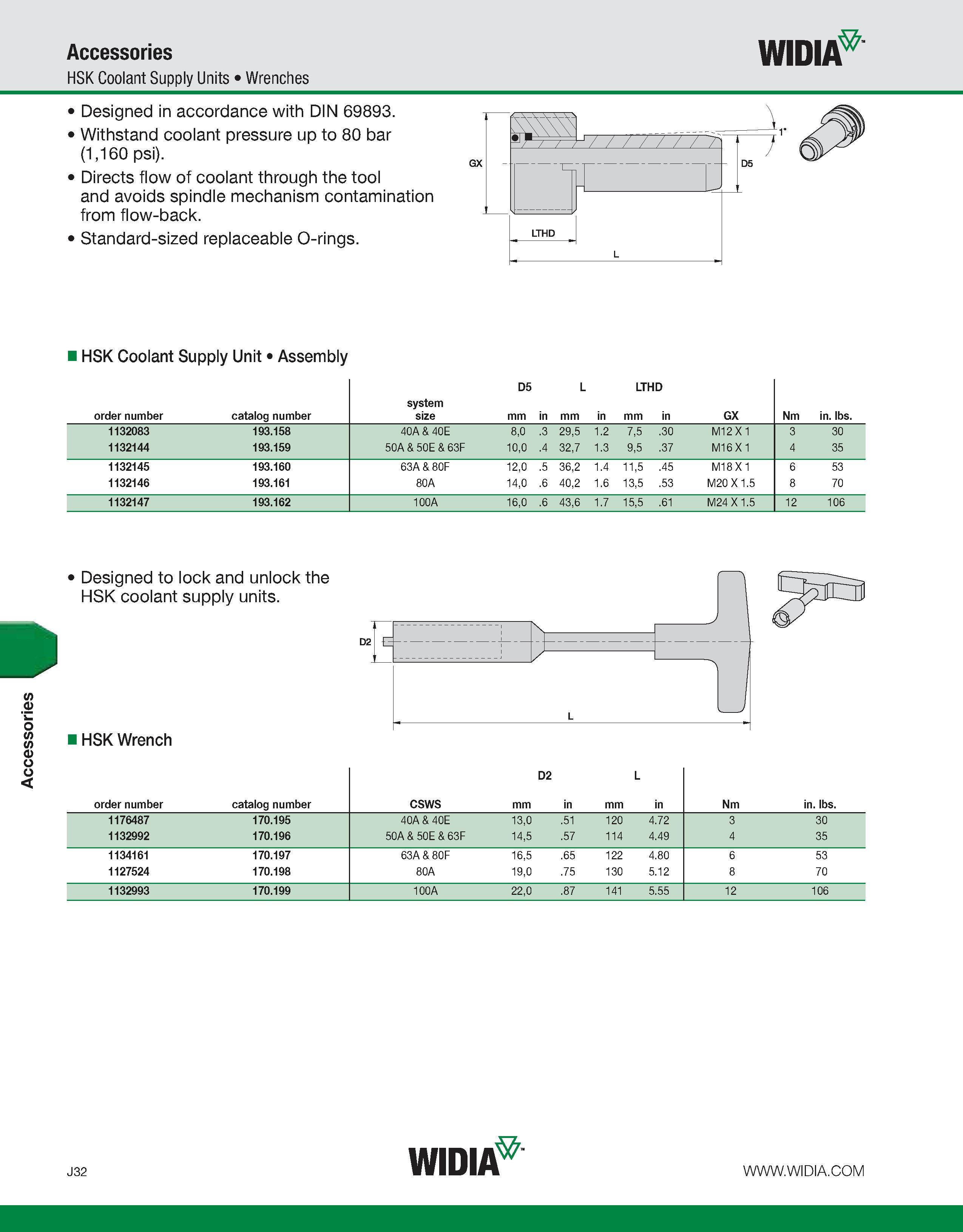

Accessories Accessories HSK Coolant Supply Units Wrenches WIDIA Designed in accordance with DIN 69893. Withstand coolant pressure up to 80 bar (1,160 psi). Directs flow of coolant through the tool and avoids spindle mechanism contamination from flow-back. Standard-sized replaceable O-rings. HSK Coolant Supply Unit Assembly order number catalog number system size D5 mm in L mm in LTHD mm in GX Nm in. lbs. 1132083 193.158 40A& 40E 8,0 .3 29,5 1.2 7,5 .30 M12 X 1 3 30 1132144 193.159 50A & 50E & 63F 10,0 .4 32,7 1.3 9,5 .37 M16 X 1 4 35 1132145 193.160 63A& 80F 12,0 .5 36,2 1.4 11,5 .45 M18 X 1 6 53 1132146 193.161 80A 14,0 .6 40,2 1.6 13,5 .53 M20 X 1.5 8 70 1132147 193.162 100A 16,0 .6 43,6 1.7 15,5 .61 M24 X 1.5 12 106 Designed to lock and unlock the HSK coolant supply units. HSK Wrench order number catalog number CSWS D2 mm in mm L in Nm in. lbs. 1176487 170.195 40A & 40E 13,0 .51 120 4.72 3 30 1132992 170.196 50A & 50E & 63F 14,5 .57 114 4.49 4 35 1134161 170.197 63A& 80F 16,5 .65 122 4.80 6 53 1127524 170.198 80A 19,0 .75 130 5.12 8 70 1132993 170.199 100A 22,0 .87 141 5.55 12 106 J32 WIDIA
