1021 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.J31

Каталог WIDIA 2011 Инструментальная оснастка Стр. J31 1021 ENG Lab2u

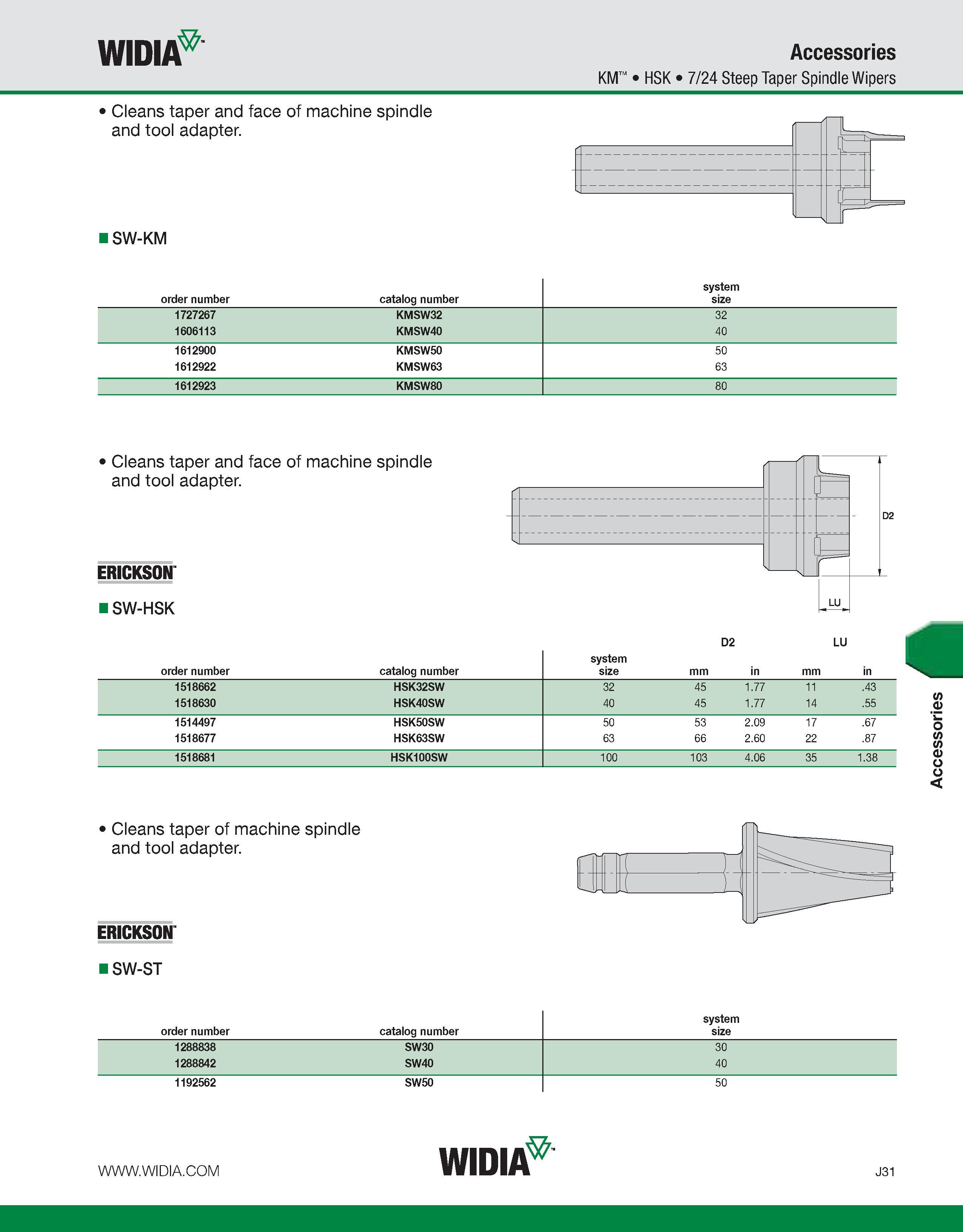

WIDIA Accessories KM HSK 7/24 Steep Taper Spindle Wipers Cleans taper and face of machine spindle and tool adapter. ISW-KM order number catalog number system size 1727267 KMSW32 32 1606113 KMSW40 40 1612900 KMSW50 50 1612922 KMSW63 63 1612923 KMSW80 80 Cleans taper and face of machine spindle and tool adapter. ERICKSON SW-HSK D2 LU order number catalog number system size mm in mm in 1518662 HSK32SW 32 45 1.77 11 .43 1518630 HSK40SW 40 45 1.77 14 .55 1514497 HSK50SW 50 53 2.09 17 .67 1518677 HSK63SW 63 66 2.60 22 .87 1518681 HSK100SW 100 103 4.06 35 1.38 Cleans taper of machine spindle and tool adapter. ERICKSON SW-ST system order number catalog number size 1288838 SW30 30 1288842 SW40 40 1192562 SW50 50 WIDIA J31 Accessories
