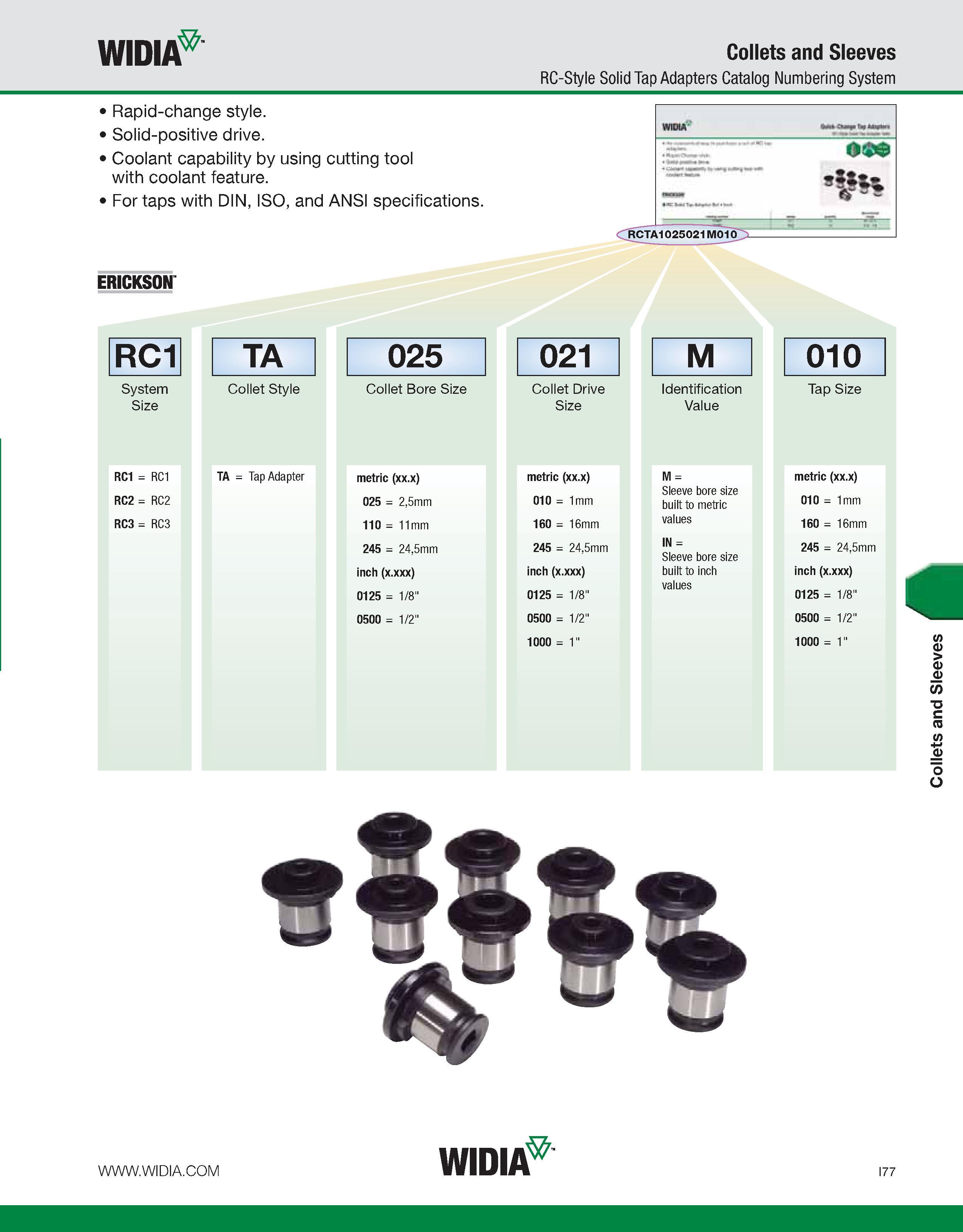

WIDIA Collets and Sleeves RC-Style Solid Tap Adapters Catalog Numbering System Rapid-change style. Solid-positive drive. Coolant capability by using cutting tool with coolant feature. For taps with DIN, ISO, and ANSI specifications. WTEHA .'rT.r'T ' < RCTA1025021M010 ERICKSON RC1 TA 025 021 M 010 System Size Collet Style Collet Bore Size Collet Drive Size Identification Value Tap Size RC1 = RC1 RC2 = RC2 RC3 = RC3 TA = Tap Adapter metric (xx.x) 025 = 2,5mm 110 = 11mm 245 = 24,5mm inch (x.xxx) 0125 = 1/8" 0500 = 1/2" metric (xx.x) 010 = 1mm 160 = 16mm 245 = 24,5mm inch (x.xxx) 0125 = 1/8" 0500 = 1/2" 1000 = 1" M = Sleeve bore size built to metric values IN = Sleeve bore size built to inch values metric (xx.x) 010 = 1mm 160 = 16mm 245 = 24,5mm inch (x.xxx) 0125 = 1/8" 0500 = 1/2" 1000 = 1" WIDIA I77 Collets and Sleeves
