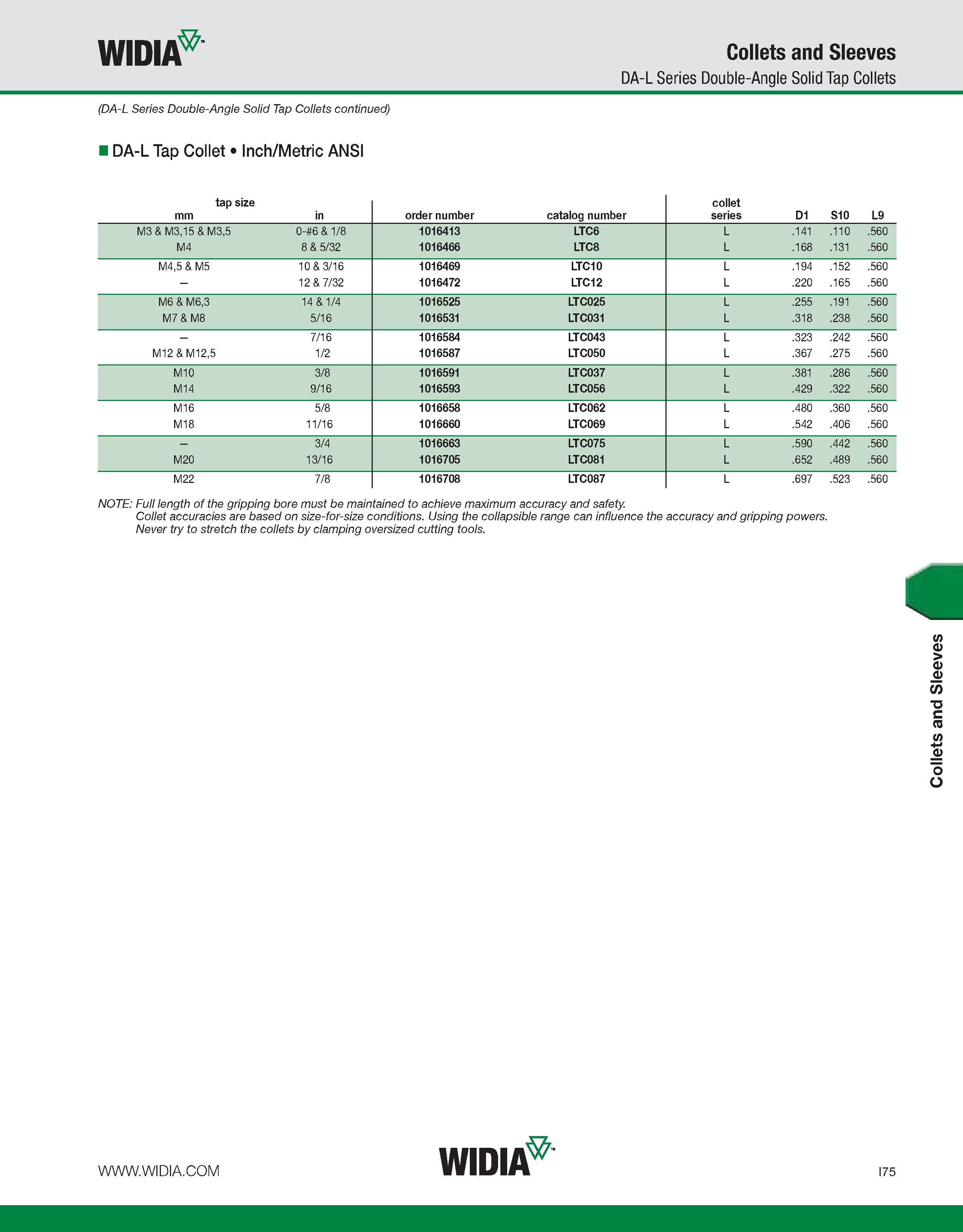

WIDIA Collets and Sleeves DA-L Series Double-Angle Solid Tap Collets (DA-L Series Double-Angle Solid Tap Collets continued) DA-L Tap Collet Inch/Metric ANSI tap size mm in order number catalog number collet series D1 S10 L9 M3 & M3,15 & M3,5 0- 6 & 1/8 1016413 LTC6 L .141 .110 .560 M4 8 & 5/32 1016466 LTC8 L .168 .131 .560 M4,5 & M5 10 & 3/16 1016469 LTC10 L .194 .152 .560 - 12 & 7/32 1016472 LTC12 L .220 .165 .560 M6 & M6,3 14 & 1/4 1016525 LTC025 L .255 .191 .560 M7 & M8 5/16 1016531 LTC031 L .318 .238 .560 7/16 1016584 LTC043 L .323 .242 .560 M12 & M12,5 1/2 1016587 LTC050 L .367 .275 .560 M10 3/8 1016591 LTC037 L .381 .286 .560 M14 9/16 1016593 LTC056 L .429 .322 .560 M16 5/8 1016658 LTC062 L .480 .360 .560 M18 11/16 1016660 LTC069 L .542 .406 .560 - 3/4 1016663 LTC075 L .590 .442 .560 M20 13/16 1016705 LTC081 L .652 .489 .560 M22 7/8 1016708 LTC087 L .697 .523 .560 NOTE: Full length of the gripping bore must be maintained to achieve maximum accuracy and safety. Collet accuracies are based on size-for-size conditions. Using the collapsible range can influence the accuracy and gripping powers. Never try to stretch the collets by clamping oversized cutting tools. Collets and Sleeves
