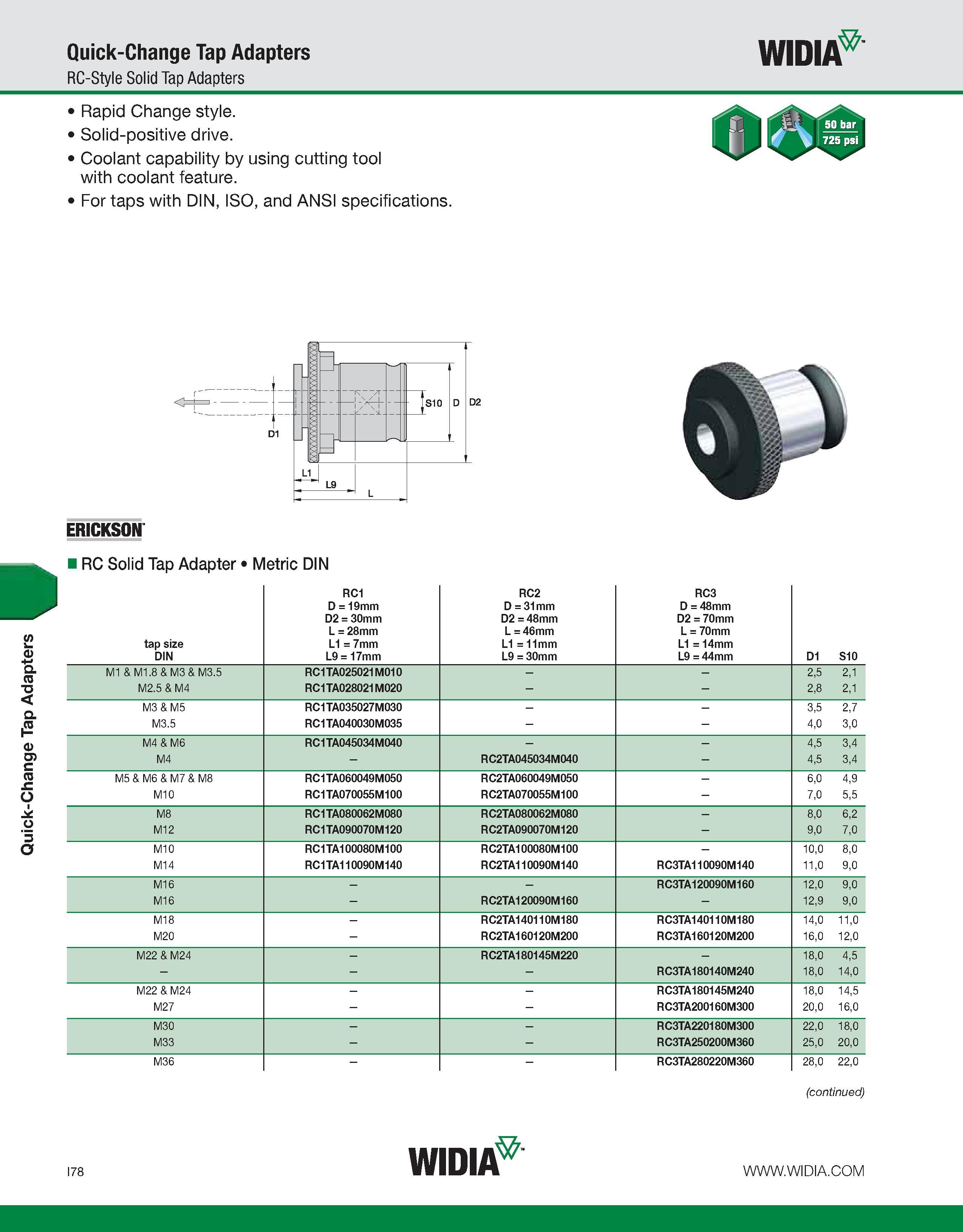

Quick-Change Tap Adapters Quick-Change Tap Adapters RC-Style Solid Tap Adapters Rapid Change style. Solid-positive drive. Coolant capability by using cutting tool with coolant feature. For taps with DIN, ISO, and ANSI specifications. WIDIA ERICKSON RC Solid Tap Adapter Metric DIN tap size DIN RC1 D = 19mm D2 = 30mm L = 28mm L1 = 7mm L9 = 17mm RC2 D = 31mm D2 = 48mm L = 46mm L1 = 11mm L9 = 30mm RC3 D = 48mm D2 = 70mm L = 70mm L1 = 14mm L9 = 44mm D1 S10 M1 & M1.8 & M3 & M3.5 RC1TA025021M010 2,5 2,1 M2.5 & M4 RC1TA028021M020 2,8 2,1 M3 & M5 RC1TA035027M030 3,5 2,7 M3.5 RC1TA040030M035 4,0 3,0 M4 & M6 RC1TA045034M040 4,5 3,4 M4 - RC2TA045034M040 - 4,5 3,4 M5 & M6 & M7 & M8 RC1TA060049M050 RC2TA060049M050 - 6,0 4,9 M10 RC1TA070055M100 RC2TA070055M100 - 7,0 5,5 M8 RC1TA080062M080 RC2TA080062M080 - 8,0 6,2 M12 RC1TA090070M120 RC2TA090070M120 - 9,0 7,0 M10 RC1TA100080M100 RC2TA100080M100 - 10,0 8,0 M14 RC1TA110090M140 RC2TA110090M140 RC3TA110090M140 11,0 9,0 M16 RC3TA120090M160 12,0 9,0 M16 - RC2TA120090M160 - 12,9 9,0 M18 - RC2TA140110M180 RC3TA140110M180 14,0 11,0 M20 - RC2TA160120M200 RC3TA160120M200 16,0 12,0 M22 & M24 - RC2TA180145M220 - 18,0 4,5 - RC3TA180140M240 18,0 14,0 M22 & M24 RC3TA180145M240 18,0 14,5 M27 RC3TA200160M300 20,0 16,0 M30 RC3TA220180M300 22,0 18,0 M33 RC3TA250200M360 25,0 20,0 M36 RC3TA280220M360 28,0 22,0 (continued) I78 WIDIA
