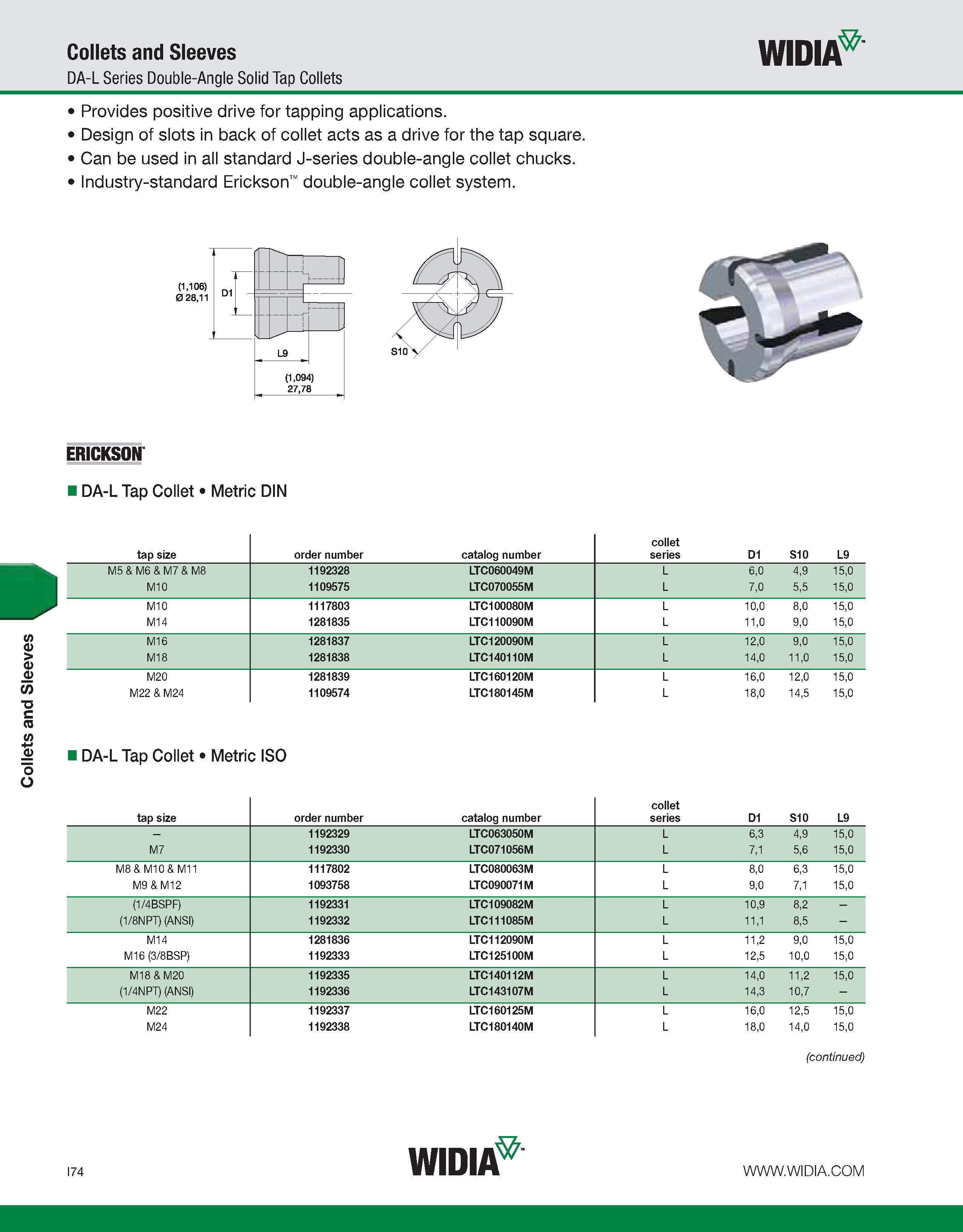

Collets and Sleeves Collets and Sleeves DA-L Series Double-Angle Solid Tap Collets WIDIA Provides positive drive for tapping applications. Design of slots in back of collet acts as a drive for the tap square. Can be used in all standard J-series double-angle collet chucks. Industry-standard Erickson double-angle collet system. (1,106) 0 28,11 D1 L9 (1,094) 27,78 ERICKSON DA-L Tap Collet Metric DIN tap size order number catalog number collet series D1 S10 L9 M5 & M6 & M7 & M8 1192328 LTC060049M L 6,0 4,9 15,0 M10 1109575 LTC070055M L 7,0 5,5 15,0 M10 1117803 LTC100080M L 10,0 8,0 15,0 M14 1281835 LTC110090M L 11,0 9,0 15,0 M16 1281837 LTC120090M L 12,0 9,0 15,0 M18 1281838 LTC140110M L 14,0 11,0 15,0 M20 1281839 LTC160120M L 16,0 12,0 15,0 M22 & M24 1109574 LTC180145M L 18,0 14,5 15,0 DA-L Tap Collet Metric ISO tap size order number catalog number collet series D1 S10 L9 - 1192329 LTC063050M L 6,3 4,9 15,0 M7 1192330 LTC071056M L 7,1 5,6 15,0 M8 & M10 & M11 1117802 LTC080063M L 8,0 6,3 15,0 M9 & M12 1093758 LTC090071M L 9,0 7,1 15,0 (1/4BSPF) 1192331 LTC109082M L 10,9 8,2 - (1/8NPT) (ANSI) 1192332 LTC111085M L 11,1 8,5 - M14 1281836 LTC112090M L 11,2 9,0 15,0 M16 (3/8BSP) 1192333 LTC125100M L 12,5 10,0 15,0 M18 & M20 1192335 LTC140112M L 14,0 11,2 15,0 (1/4NPT) (ANSI) 1192336 LTC143107M L 14,3 10,7 - M22 1192337 LTC160125M L 16,0 12,5 15,0 M24 1192338 LTC180140M L 18,0 14,0 15,0 (continued)
