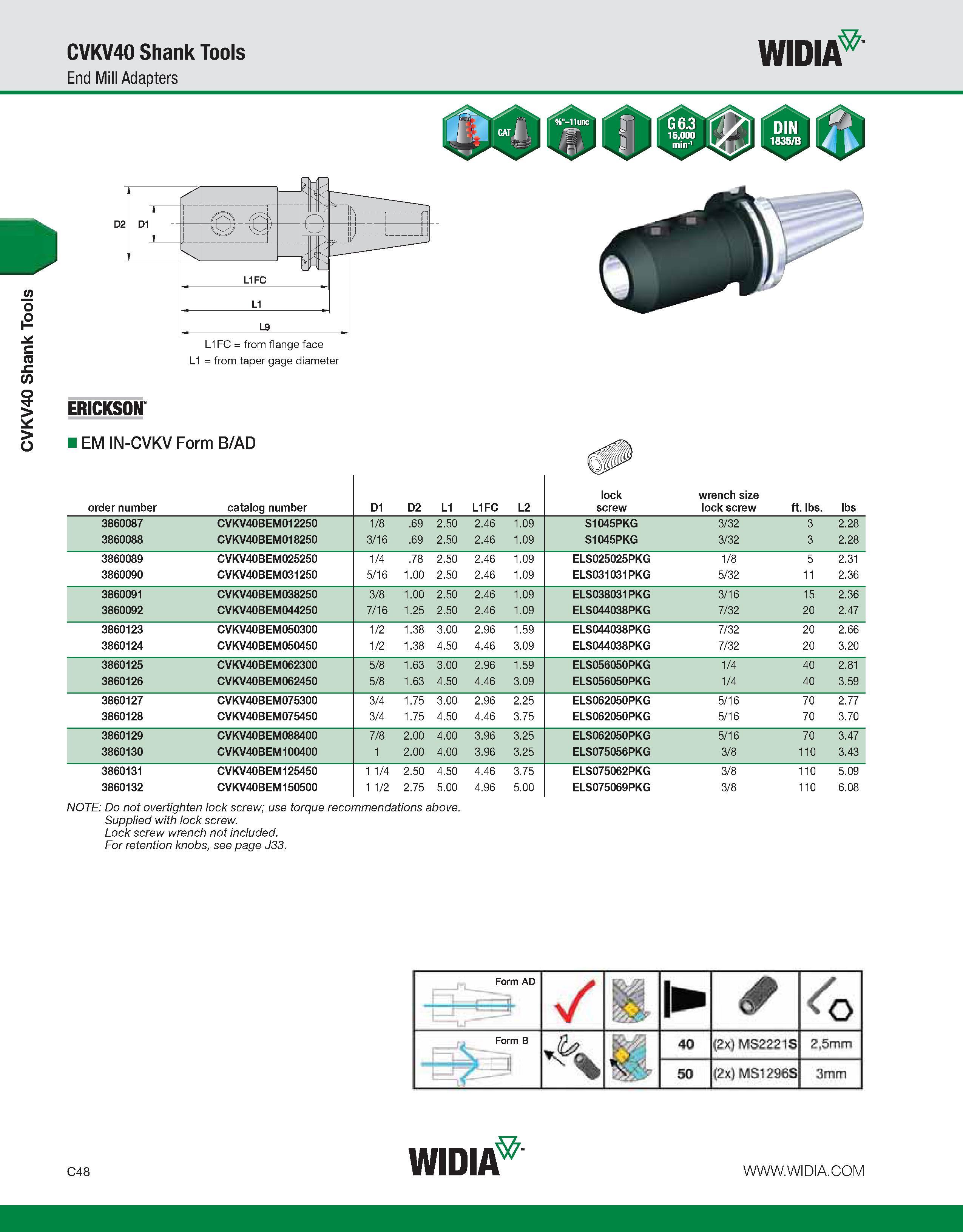

CVKV40 Shank Tools CVKV40 Shank Tools End Mill Adapters WIDIA L1 = from taper gage diameter ERICKSON EM IN-CVKV Form B/AD order number catalog number D1 D2 L1 L1FC L2 lock screw wrench size lock screw ft. lbs. lbs 3860087 CVKV40BEM012250 1/8 .69 2.50 2.46 1.09 S1045PKG 3/32 3 2.28 3860088 CVKV40BEM018250 3/16 .69 2.50 2.46 1.09 S1045PKG 3/32 3 2.28 3860089 CVKV40BEM025250 1/4 .78 2.50 2.46 1.09 ELS025025PKG 1/8 5 2.31 3860090 CVKV40BEM031250 5/16 1.00 2.50 2.46 1.09 ELS031031PKG 5/32 11 2.36 3860091 CVKV40BEM038250 3/8 1.00 2.50 2.46 1.09 ELS038031PKG 3/16 15 2.36 3860092 CVKV40BEM044250 7/16 1.25 2.50 2.46 1.09 ELS044038PKG 7/32 20 2.47 3860123 CVKV40BEM050300 1/2 1.38 3.00 2.96 1.59 ELS044038PKG 7/32 20 2.66 3860124 CVKV40BEM050450 1/2 1.38 4.50 4.46 3.09 ELS044038PKG 7/32 20 3.20 3860125 CVKV40BEM062300 5/8 1.63 3.00 2.96 1.59 ELS056050PKG 1/4 40 2.81 3860126 CVKV40BEM062450 5/8 1.63 4.50 4.46 3.09 ELS056050PKG 1/4 40 3.59 3860127 CVKV40BEM075300 3/4 1.75 3.00 2.96 2.25 ELS062050PKG 5/16 70 2.77 3860128 CVKV40BEM075450 3/4 1.75 4.50 4.46 3.75 ELS062050PKG 5/16 70 3.70 3860129 CVKV40BEM088400 7/8 2.00 4.00 3.96 3.25 ELS062050PKG 5/16 70 3.47 3860130 CVKV40BEM100400 1 2.00 4.00 3.96 3.25 ELS075056PKG 3/8 110 3.43 3860131 CVKV40BEM125450 1 1/4 2.50 4.50 4.46 3.75 ELS075062PKG 3/8 110 5.09 3860132 CVKV40BEM150500 1 1/2 2.75 5.00 4.96 5.00 ELS075069PKG 3/8 110 6.08 NOTE: Do not overtighten lock screw; use torque recommendations above. Supplied with lock screw. Lock screw wrench not included. For retention knobs, see page J33. Form AD t t m I 50 2X Msizaes 3mm C48 WIDIA
