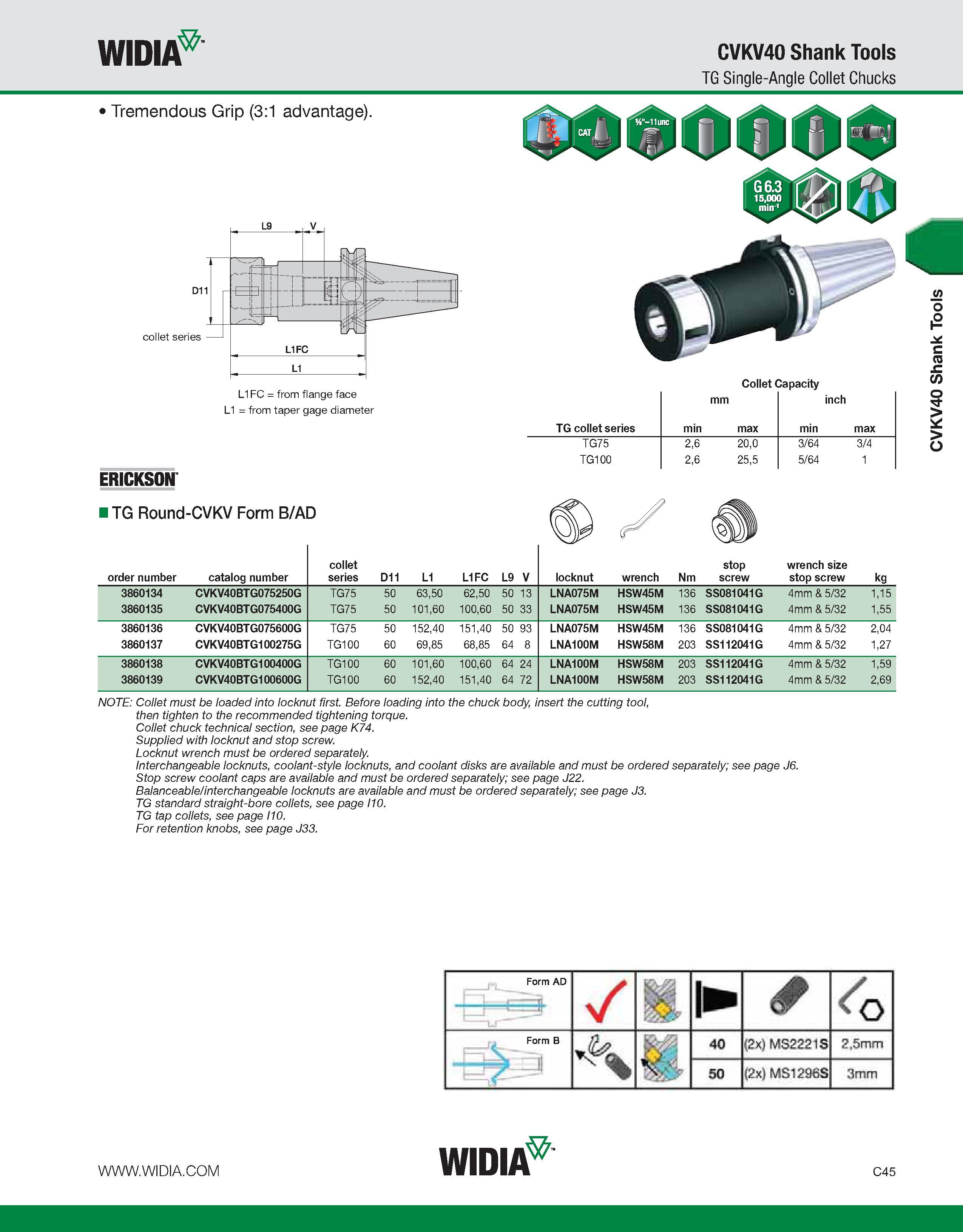

WIDIA CVKV40 Shank Tools TG Single-Angle Collet Chucks Tremendous Grip (3:1 advantage). D11 collet series L1FC = from flange face L1 = from taper gage diameter Collet Capacity ERICKSON- mm inch TG collet series min max min max TG75 2,6 20,0 3/64 3/4 TG100 2,6 25,5 5/64 1 ITG Round-CVKV Form B/AD order number catalog number collet series D11 L1 L1FC V 9 L locknut wrench Nm stop screw wrench size stop screw kg 3860134 CVKV40BTG075250G TG75 50 63,50 62,50 50 13 LNA075M HSW45M 136 SS081041G 4mm & 5/32 1,15 3860135 CVKV40BTG075400G TG75 50 101,60 100,60 50 33 LNA075M HSW45M 136 SS081041G 4mm & 5/32 1,55 3860136 CVKV40BTG075600G TG75 50 152,40 151,40 50 93 LNA075M HSW45M 136 SS081041G 4mm & 5/32 2,04 3860137 CVKV40BTG100275G TG100 60 69,85 68,85 64 8 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,27 3860138 CVKV40BTG100400G TG100 60 101,60 100,60 64 24 LNA100M HSW58M 203 SS112041G 4mm & 5/32 1,59 3860139 CVKV40BTG100600G TG100 60 152,40 151,40 64 72 LNA100M HSW58M 203 SS112041G 4mm & 5/32 2,69 NOTE: Collet must be loaded into locknut first. Before loading into the chuck body, insert the cutting tool, then tighten to the recommended tightening torque. Collet chuck technical section, see page K74. Supplied with locknut and stop screw. Locknut wrench must be ordered separately. Interchangeable locknuts, coolant-style locknuts, and coolant disks are available and must be ordered separately; see page J6. Stop screw coolant caps are available and must be ordered separately; see page J22. Balanceable/interchangeable locknuts are available and must be ordered separately; see page J3. TG standard straight-bore collets, see page I10. TG tap collets, see page I10. For retention knobs, see page J33. Form AD -1 j M i 50 2X Msizaes 3mm C45 CVKV40 Shank Tools
