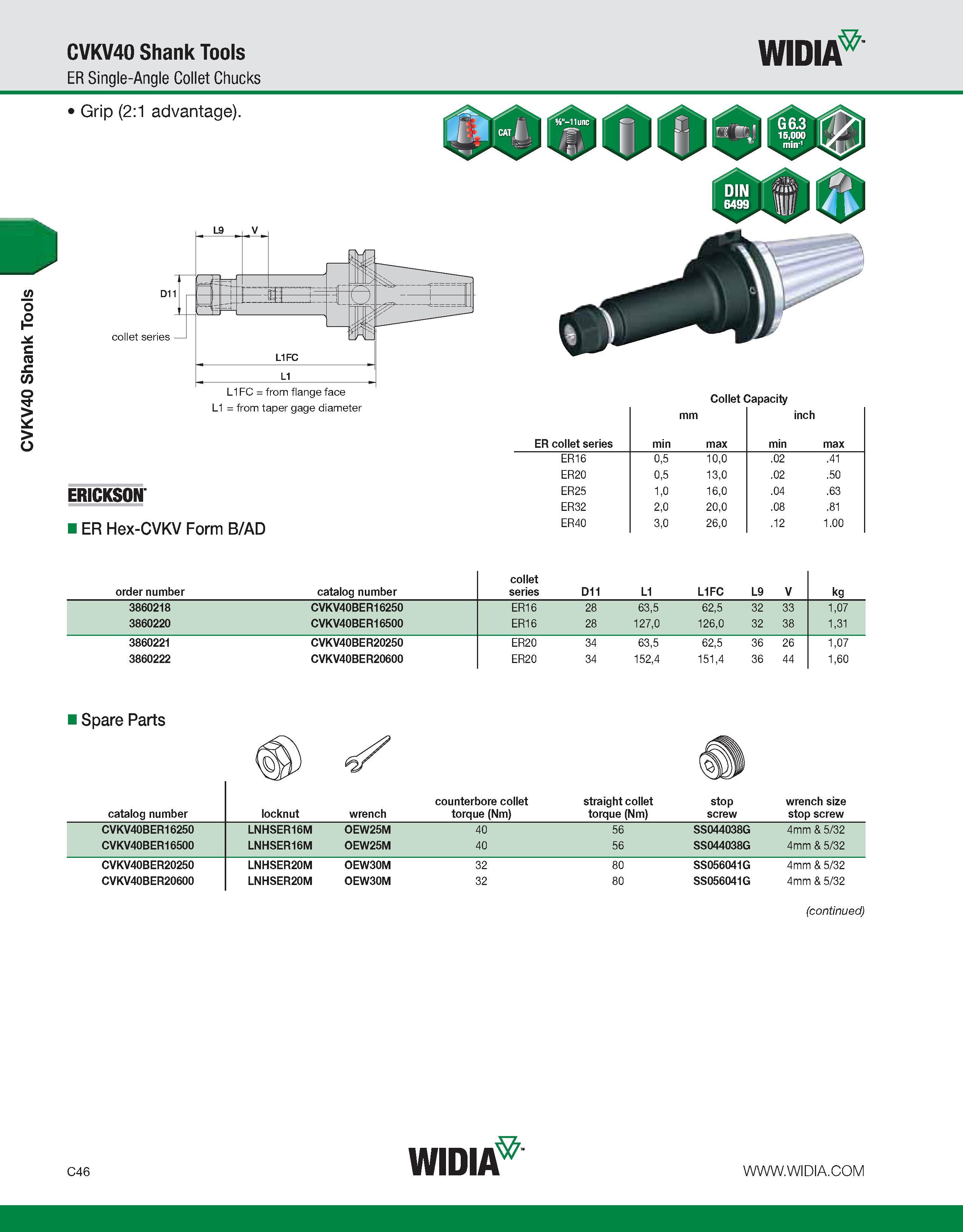

CVKV40 Shank Tools CVKV40 Shank Tools ER Single-Angle Collet Chucks WIDIA Grip (2:1 advantage). D11 collet series L1FC = from flange face L1 = from taper gage diameter Collet Capacity ERICKSON ER Hex-CVKV Form B/AD ER collet series mm min max inch min max ER16 0,5 10,0 .02 .41 ER20 0,5 13,0 .02 .50 ER25 1,0 16,0 .04 .63 ER32 2,0 20,0 .08 .81 ER40 3,0 26,0 .12 1.00 order number catalog number collet series D11 L1 L1FC L9 V kg 3860218 CVKV40BER16250 ER16 28 63,5 62,5 32 33 1,07 3860220 CVKV40BER16500 ER16 28 127,0 126,0 32 38 1,31 3860221 CVKV40BER20250 ER20 34 63,5 62,5 36 26 1,07 3860222 CVKV40BER20600 ER20 34 152,4 151,4 36 44 1,60 i Spare Parts catalog number locknut wrench counterbore collet torque (Nm) straight collet torque (Nm) stop screw wrench size stop screw CVKV40BER16250 LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 CVKV40BER16500 LNHSER16M OEW25M 40 56 SS044038G 4mm & 5/32 CVKV40BER20250 LNHSER20M 0EW30M 32 80 SS056041G 4mm & 5/32 CVKV40BER20600 LNHSER20M 0EW30M 32 80 SS056041G 4mm & 5/32 (continued) C46 WIDIA
