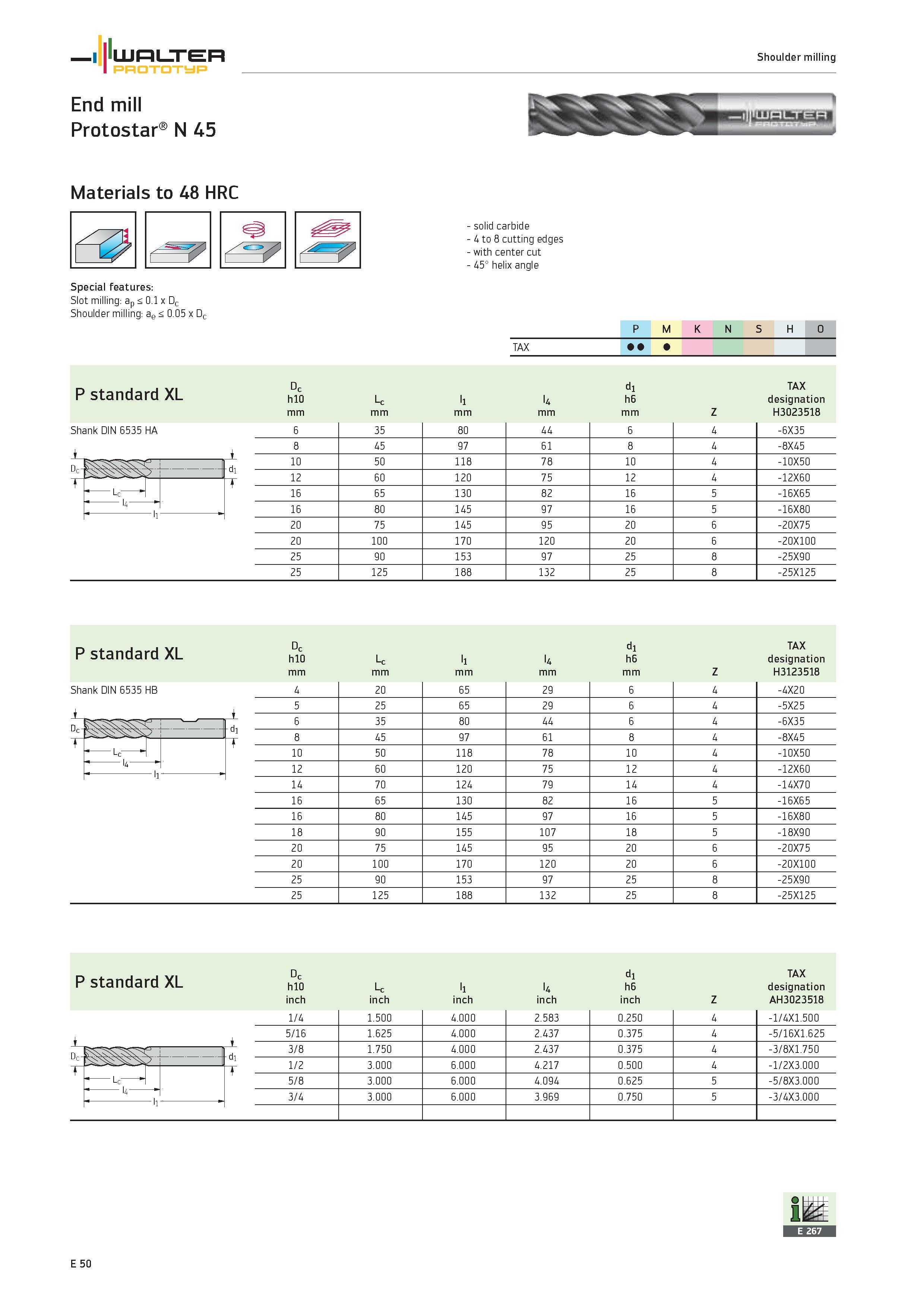

WALTER PROTOTYP End mill Protostar N 45 Shoulder milling Materials to 48 HRC Special features Slot milling ap < 0.1 x Dc Shoulder milling ae < 0.05 x Dc solid carbide 4 to 8 cutting edges with center cut 45° helix angle 1 P M K N S H O TAX 1 P standard XL c10 Lc ll U dl h6 TAX designation mm Z H3023518 6 35 80 44 6 4 -6X35 8 45 97 61 8 4 -8X45 10 50 118 78 10 4 -10X50 12 60 120 75 12 4 -12X60 16 65 130 82 16 5 -16X65 16 80 145 97 16 5 -16X80 20 75 145 95 20 6 -20X75 20 100 170 120 20 6 -20X100 25 90 153 97 25 8 -25X90 25 125 188 132 25 8 -25X125 P standard XL c10 Lc li U di h6 TAX designation mm Z H3123518 4 20 65 29 6 4 -4X20 5 25 65 29 6 4 -5X25 6 35 80 44 6 4 -6X35 8 45 97 61 8 4 -8X45 10 50 118 78 10 4 -10X50 12 60 120 75 12 4 -12X60 14 70 124 79 14 4 -14X70 16 65 130 82 16 5 -16X65 16 80 145 97 16 5 -16X80 18 90 155 107 18 5 -18X90 20 75 145 95 20 6 -20X75 20 100 170 120 20 6 -20X100 25 90 153 97 25 8 -25X90 25 125 188 132 25 8 -25X125 P standard XL Dc h10 inch Lc inch l1 inch U inch 16 ch hE Z TAX designation AH3023518 1/4 1.500 4.000 2.583 0.250 4 -1/4X1.500 5/16 1.625 4.000 2.437 0.375 4 -5/16X1.625 3/8 1.750 4.000 2.437 0.375 4 -3/8X1.750 1/2 3.000 6.000 4.217 0.500 4 -1/2X3.000 5/8 3.000 6.000 4.094 0.625 5 -5/8X3.000 3/4 3.000 6.000 3.969 0.750 5 -3/4X3.000 E 50
