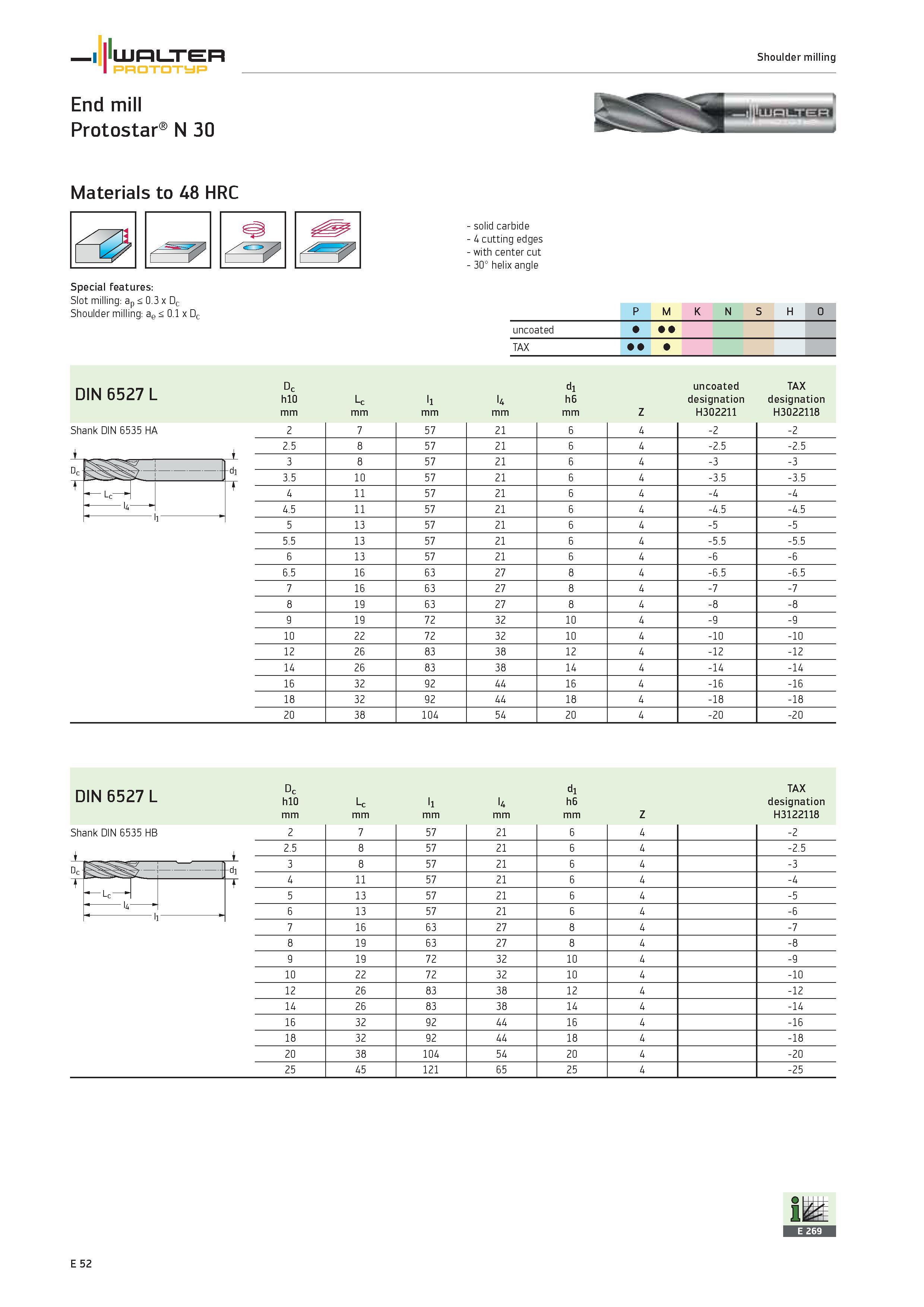

WALTER Prototyp End mill Protostar N 30 Shoulder milling Materials to 48 HRC Special features Slot milling ap < 0.3 x Dc Shoulder milling ae < 0.1 x Dc Shank DIN 6535 HA solid carbide 4 cutting edges with center cut 30° helix angle P M K N S H O uncoated TAX 1 DIN 6527 L Dc h10 Lc l1 l4 d1 h6 uncoated designation TAX designation mm Z H302211 H3022118 2 7 57 21 6 4 -2 -2 2.5 8 57 21 6 4 -2.5 -2.5 3 8 57 21 6 4 -3 -3 3.5 10 57 21 6 4 -3.5 -3.5 4 11 57 21 6 4 -4 -4 4.5 11 57 21 6 4 -4.5 -4.5 5 13 57 21 6 4 -5 -5 5.5 13 57 21 6 4 -5.5 -5.5 6 13 57 21 6 4 -6 -6 6.5 16 63 27 8 4 -6.5 -6.5 7 16 63 27 8 4 -7 -7 8 19 63 27 8 4 -8 -8 9 19 72 32 10 4 -9 -9 10 22 72 32 10 4 -10 -10 12 26 83 38 12 4 -12 -12 14 26 83 38 14 4 -14 -14 16 32 92 44 16 4 -16 -16 18 32 92 44 18 4 -18 -18 20 38 104 54 20 4 -20 -20 DIN 6527 L Dc h10 Lc l1 l4 d1 h6 TAX designation mm Z H3122118 2 7 57 21 6 4 -2 2.5 8 57 21 6 4 -2.5 3 8 57 21 6 4 -3 4 11 57 21 6 4 -4 5 13 57 21 6 4 -5 6 13 57 21 6 4 -6 7 16 63 27 8 4 -7 8 19 63 27 8 4 -8 9 19 72 32 10 4 -9 10 22 72 32 10 4 -10 12 26 83 38 12 4 -12 14 26 83 38 14 4 -14 16 32 92 44 16 4 -16 18 32 92 44 18 4 -18 20 38 104 54 20 4 -20 25 45 121 65 25 4 -25 E 52
